Eclipse Production Maestro V5.2 User Manual

1 - 3 8

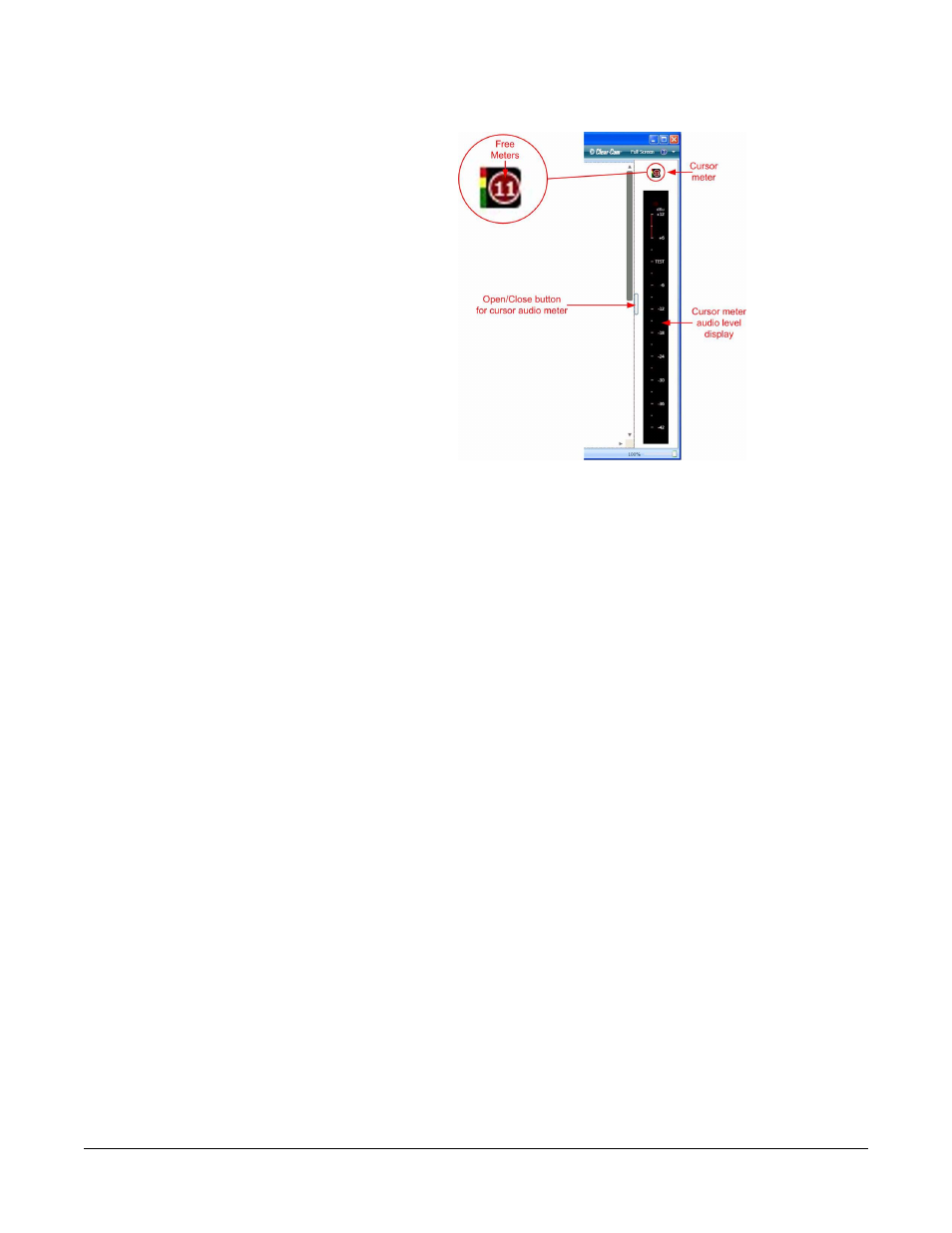

Figure 1-46: Cursor Meter Display

Unlike the fixed canvas meters (see “To Add a Meter to a 4-Wire on the
Canvas”) t
he cursor meter allows metering of 4-wires placed in a
4-wire viewer.

To use the cursor meter:
1. Place the mouse pointer over the cursor meter and left-click. The

mouse pointer will change to indicate that cursor meter mode is now
in operation.

2. Hover the cursor over the point you wish to meter:

- to meter the input of a palette 4-wire, hover over the LHS of the

4-wire.

- to meter the output of a palette 4-wire, hover over the RHS of the

4-wire.

- to meter the input of a canvas fixed 4-wire, hover over the LHS of

the 4-wire.

- to meter the output of a canvas fixed 4-wire, hover over the RHS of

the 4-wire.

- to meter the input of a 4-wire placed in a 4-wire viewer on the

canvas, hover over the LHS of the 4-wire viewer.

- to meter the output of a 4-wire placed in a 4-wire viewer on the

canvas, hover over the RHS of the 4-wire viewer.

- to meter a canvas conference, hover over the conference.

After a short delay (500ms) the title above the large meter on the right
of the screen will change to match what is being hovered over and
metering will begin. To stop metering, move the cursor to a blank area
of the screen and after a short delay the metering will stop.
