Unlike conferences shown on the canvas, 4-Wire viewers can have
their target changed in the assignment mode.

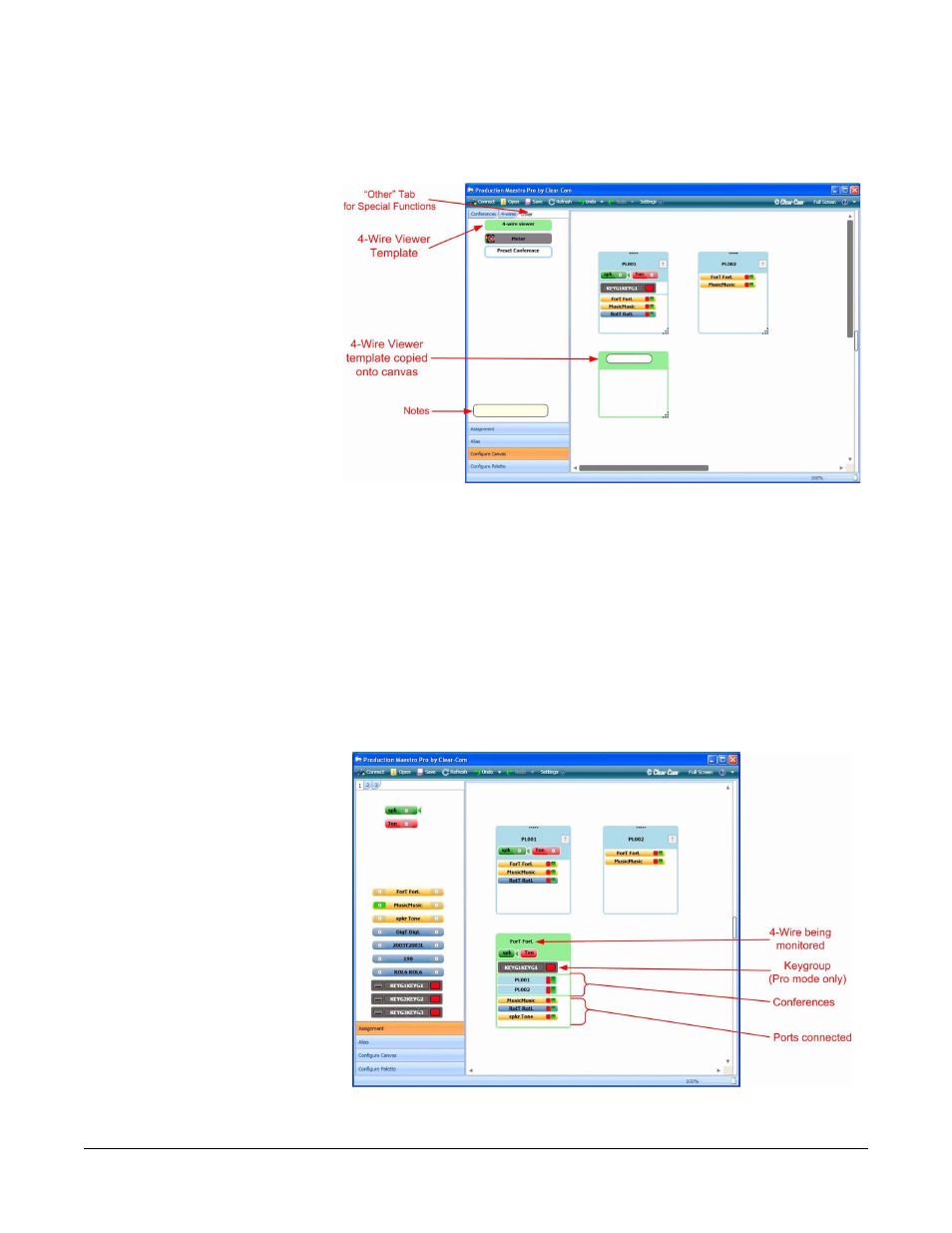

Figure 1-37: 4-Wire View Template (includes Pro features)
Once the 4-Wire Viewer has been dropped on the canvas the mode
can be switched to ‘Assignment’ mode for use.
To make a port a monitored port it is dragged from the palette and
dropped onto the 4-Wire viewer. When this is done all the conferences
the port is a member of are displayed in the 4-Wire viewer together
with a list of all the ports that it has connections to.
If an additional port is assigned to one of the conferences that the
monitored port is a member of then that new port will also be displayed
in the connections list of the 4-Wire viewer for the monitored port.
Figure 1-38: 4-Wire Viewer Monitoring a Port
