Table 16 - Pulse Trigger Function Menu 2
Option
Setting
Explain
Type Pulse Select the pulse to trigger the pulse
match the trigger condition.
Mode Auto
Normal
single Select the type of triggering; Normal
mode is best for most Pulse Width
trigger applications.
Set up Enter the “Trigger setup menu”.
Next Page Page 2/2 Press this button to return the first page.

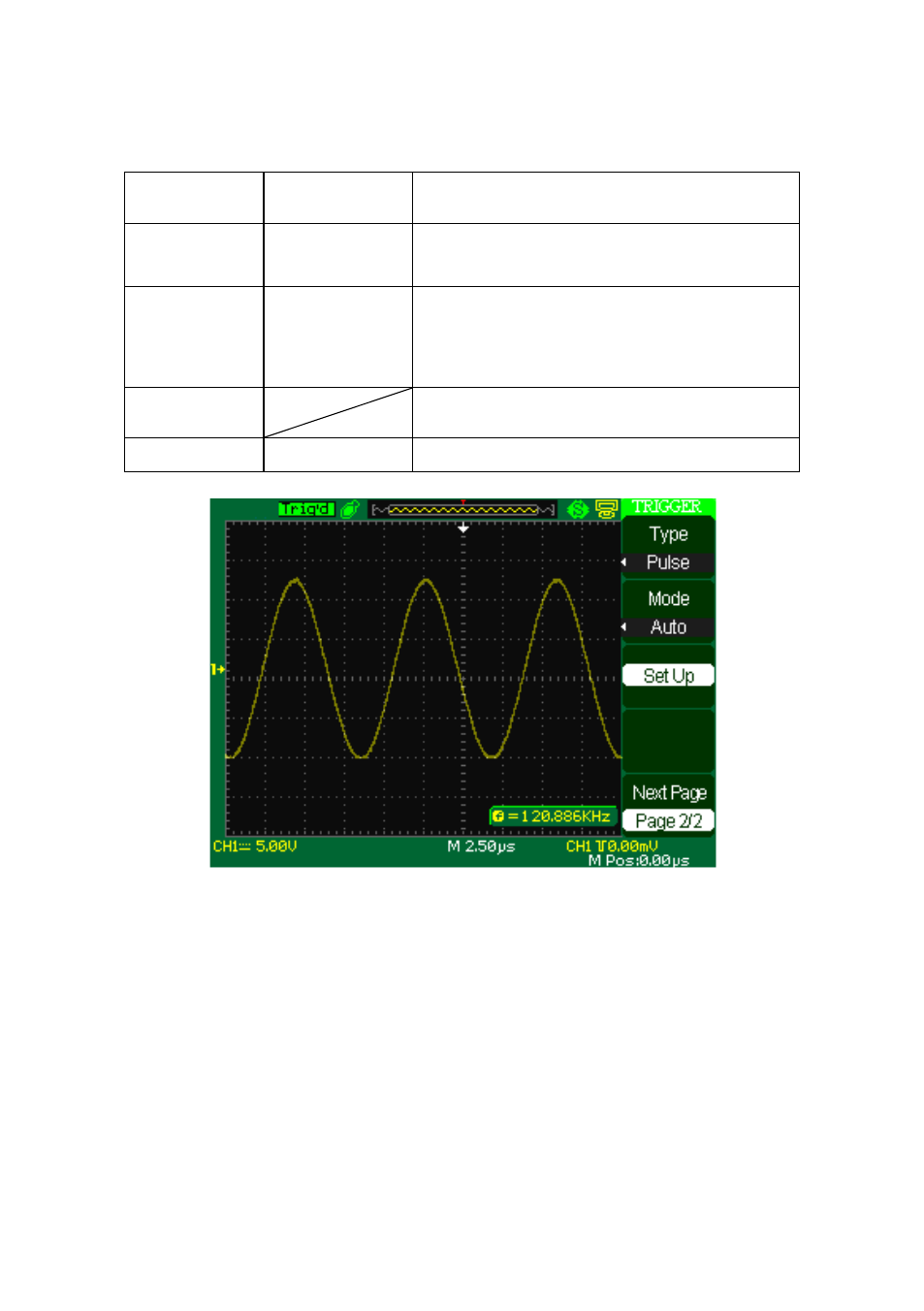

Figure 33 - Pulse Trigger Menu 2
Operating Instructions:
1. Set up Type
1) Press the “TRIG MENU” button to display “Trigger
menu”.
2) Press the “Type” option button to select “Pulse”.
2. Set up condition
