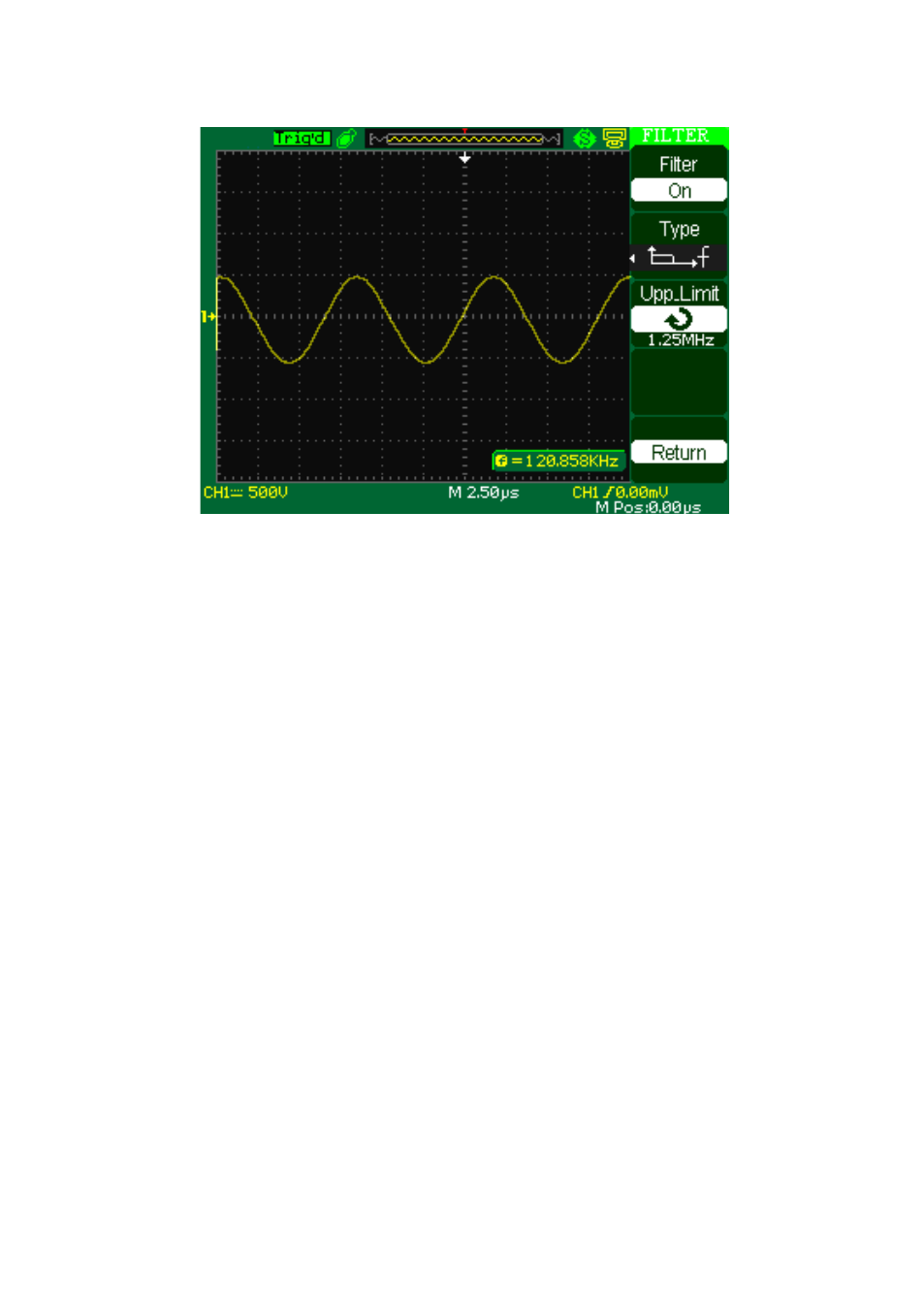

Figure 23 - Digital Filter Adjustment Screen
Using Vertical Position Knob and
Volt/div Knob
• Vertical “POSITION” knob
1. Use the Vertical “POSITION” knobs to move the channel
waveforms up or down on the screen. This button’s resolution
varies based on the vertical scale.
2. When you adjust the vertical position of channel waveforms,
the vertical position information will display on the bottom
left of the screen. For example “Volts Pos=24.6mV”.
3. Press the vertical “POSITION” knob to set the vertical
position to zero.
