112
2. Press the top first option button to enter the “second measurement
menu”.
3. Select measure type. If you press the “Voltage” option button,
“Voltage measurement” menu will display on the screen.
4. Press the “Source” option button to select “CH1”, “CH2”
according to input signal channel.
5. Press the “Type” option button to select the parameter type that
you want to measure. The corresponding icon and value will
display below the measure parameter.

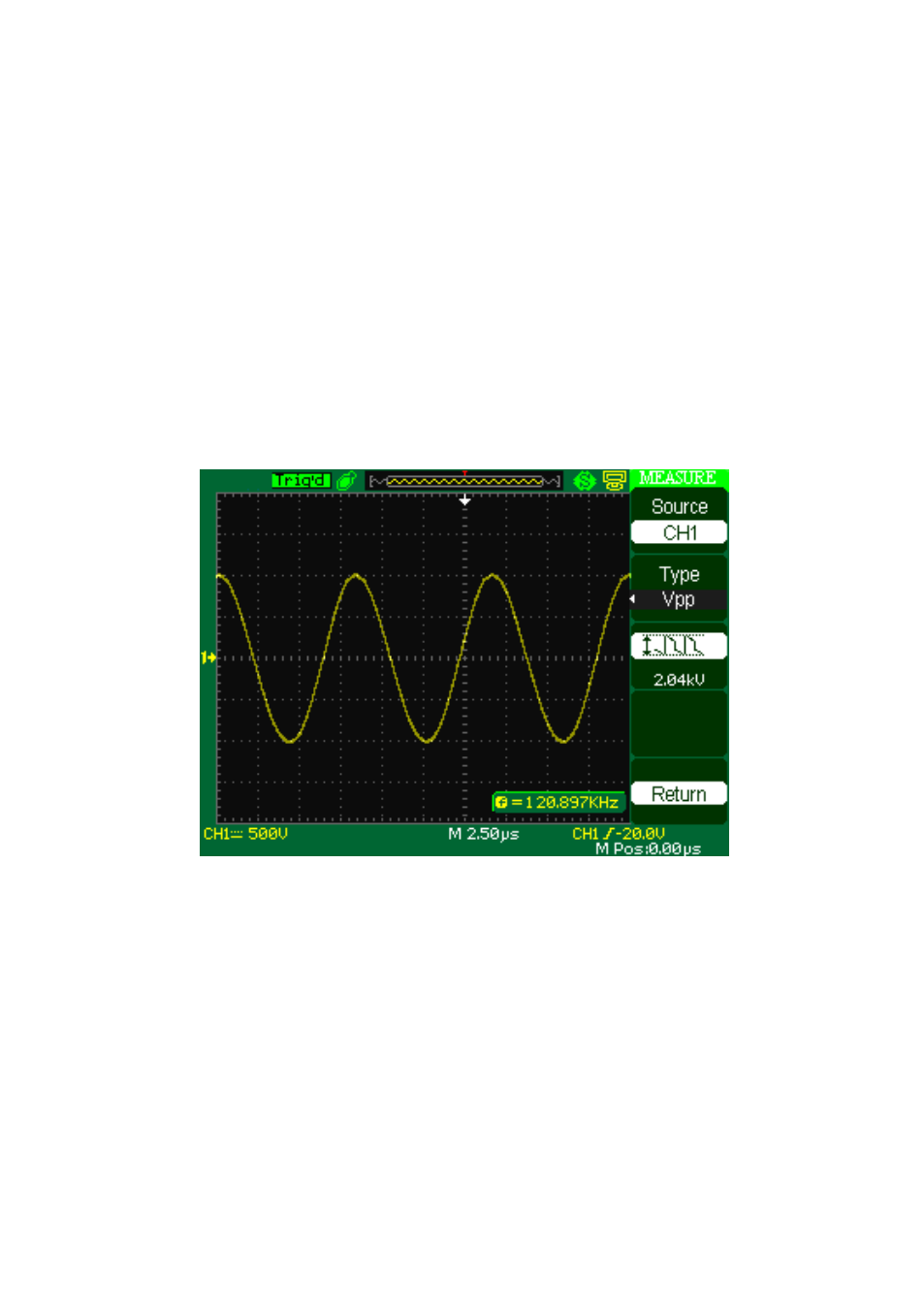

Figure 53 - Measure Voltage Parameters
6. Press the “Return” option button to return to the home page of the
“Auto Measurement” menu. The selected parameter and the
corresponding value will display on the top position of the home
page.
