127

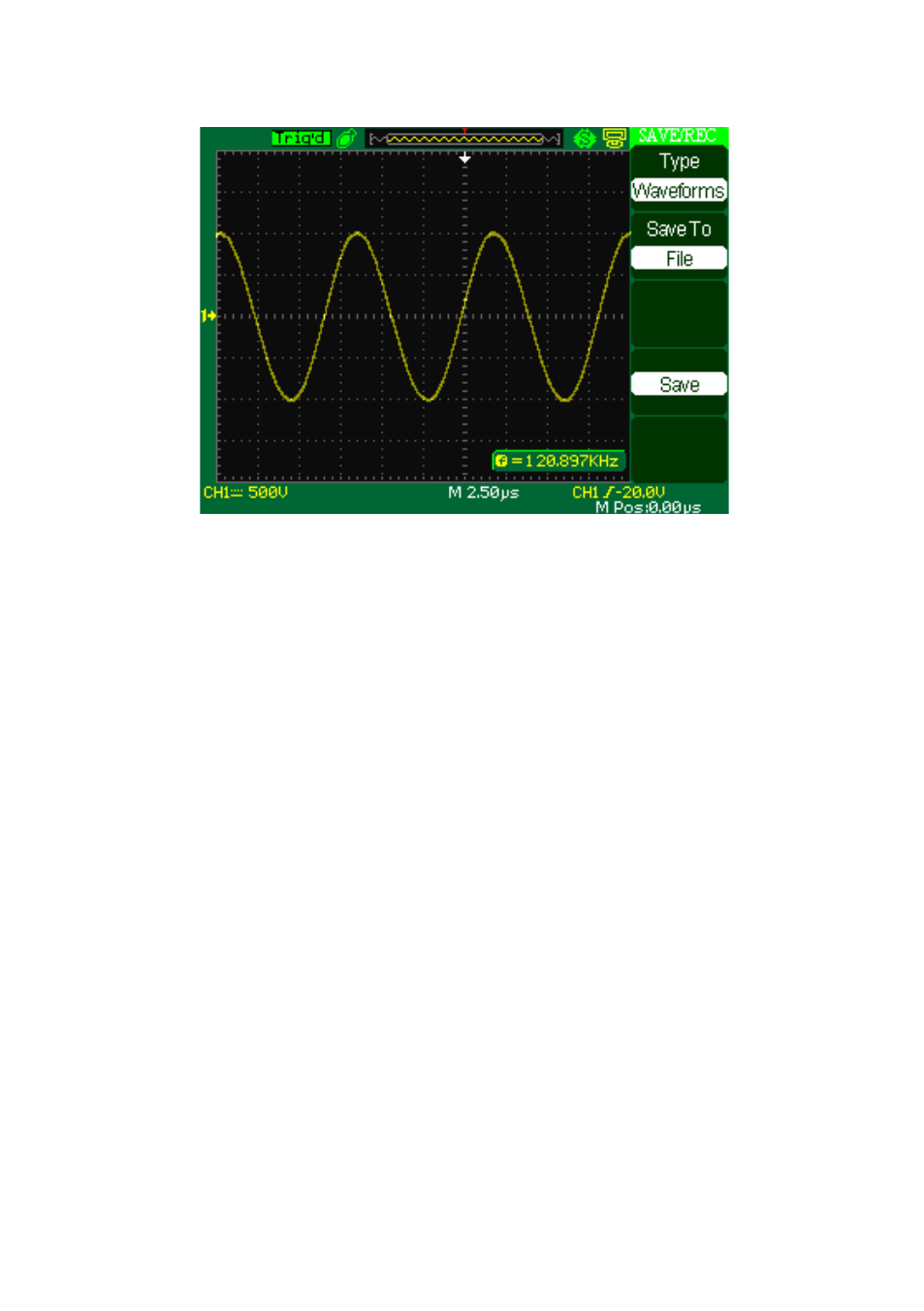

Figure 64 - Save Waveforms Screen
Save waveforms to USB flash drive, follow next steps:
1. Input a sine signal to channel 1, press the “AUTO” button.
2. Press the “SAVE/RECALL” button to enter the
“SAVE/RECALL” display menu.
3. Press the “Type” option button to select “Waveforms”.
4. Insert USB flash drive to USB host port of the oscilloscope and
wait until the oscilloscope has initialized USB flash drive (about
five seconds).
5. Press the “Save to” option button to select “File”.
6. Press the “Save” option button then you’ll go into the Save/Recall
interface.
7. Create a file then press the “Confirm” button (about five seconds,
there is a prompting message showing “Save data success”
displaying on the screen), now waveform data have been saved to
USB flash drive.
