0700015-J0 Rev B 30
5.2 Getting Started
The following diagram shows navigation options available from the home page.
5. In the CXC Connection Settings tab, verify the IP Address of the CXCU is 10.10.10.201 .
6. Tap Navigate To . The Home screen (Figure 21) appears.
Cordex Controller IP Address Search For Connected Controller:
Select>>
Search
Cancel Apply
Navigate to
Application Settings CXC Connection Settings IP Protocol Settings Connection Status
10. 10. 10. 201
http://10.10.10.201/

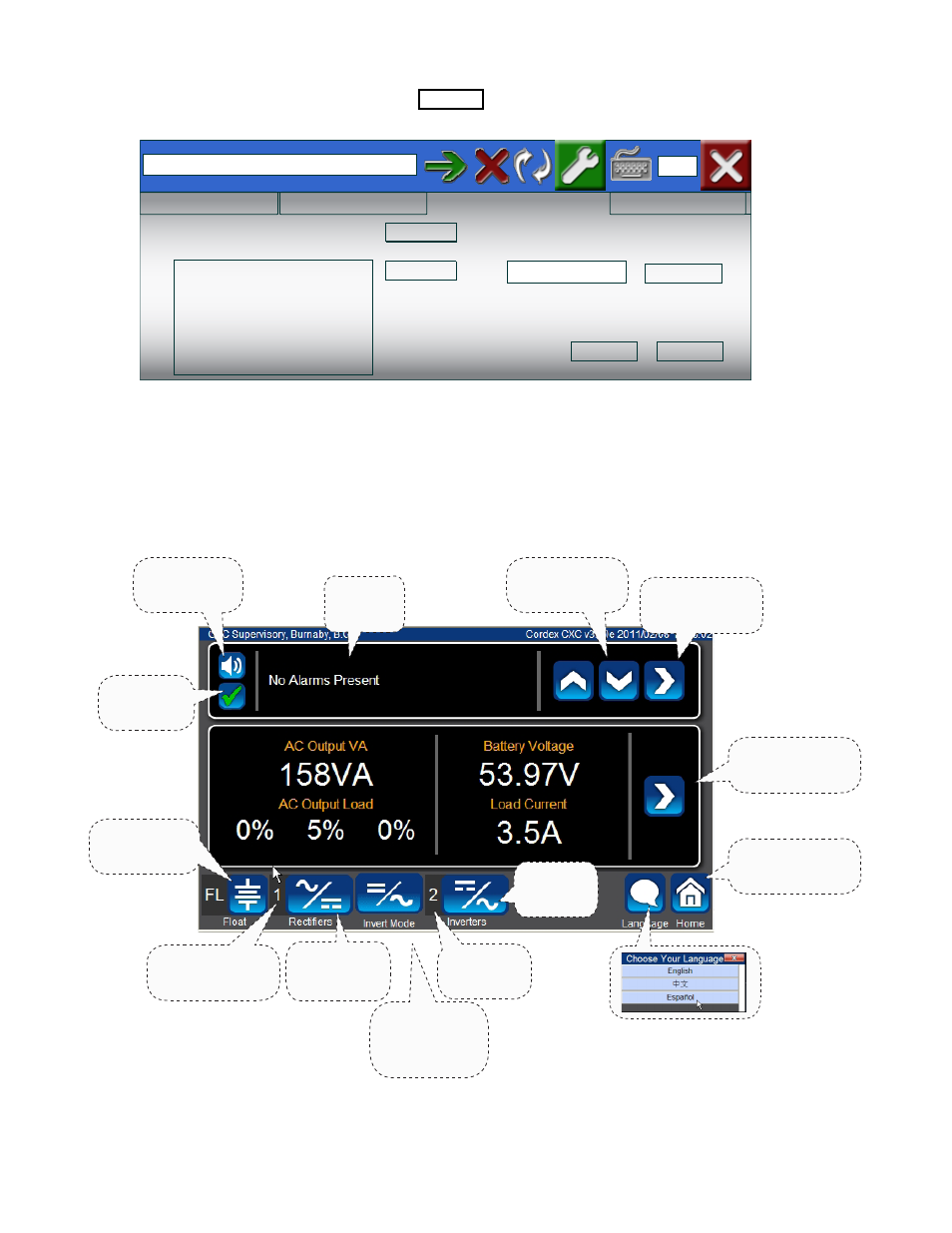

Figure 20 — Cordex Controller IP address
Figure 21 — Home Screen (Web Interface)
Alarms > View
Live Status
Active
Alarms
Alarm Cutoff
(ALCO)
Scroll displayed
alarms
Systems > View
Live Status
Rectifiers >
View Live
Status
Signals > View
Live Status
Alarm
Severity
Number of Acquired
Rectifiers
System>
Select Voltage
Mode
Number of
Acquired
Inverters
Inverters >
View Live
Status
Inverter Mode = DC
to AC conversion
Line Mode = AC to
AC conversion
