Page 50

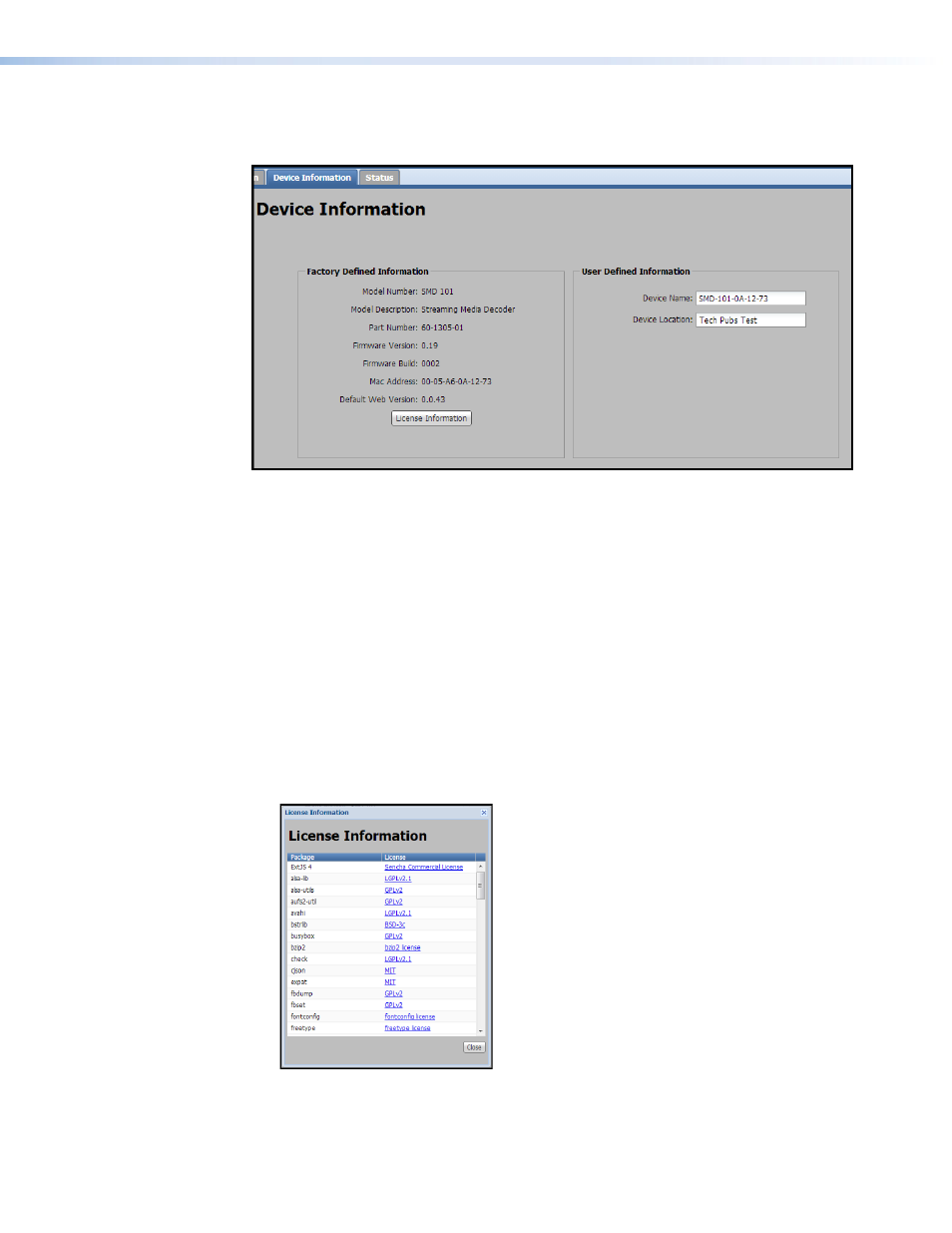

Device Information Page
Displays both device (factory) and user defined information.
Figure 41.
Device Information Page
Factory Defined Information panel
Displays read-only technical information about the SMD 101 including:
•
Model Number — The model number of the device.
•
Model Description — The marketing description of the device.
•
Part Number — The sales number of the device.
•
Firmware Version — The current firmware version.
•
Firmware Build — The specific build number of the firmware.
•
MAC Address — The Media Access Control (MAC) address of the device.
•
Default Web Version — This number indicates the revision of the SMD 101 embedded
web pages.
•
License
Information
— Click this button to open the License Information dialog.
Figure 42.
License Information Dialog
The dialog lists all third-party applications used by the SMD 101 with links to the license
agreements. Click on the blue links to open the agreement page.
SMD 101 • Web-based User Interface
44
