YSI IQ SensorNet 2020 XT Terminal - Manual (Page 66)

Installation System 2020 XT USB
3 - 36 ba76019e01 12/2012
3.6.5 Top hat rail mounting
Materials required  THS/IQ kit for top hat rail mounting (see chapter 10 A
CCESSORIES
AND OPTIONS ).
Tools  Phillips screw driver.
Mounting the
MIQ module on a top hat
rail

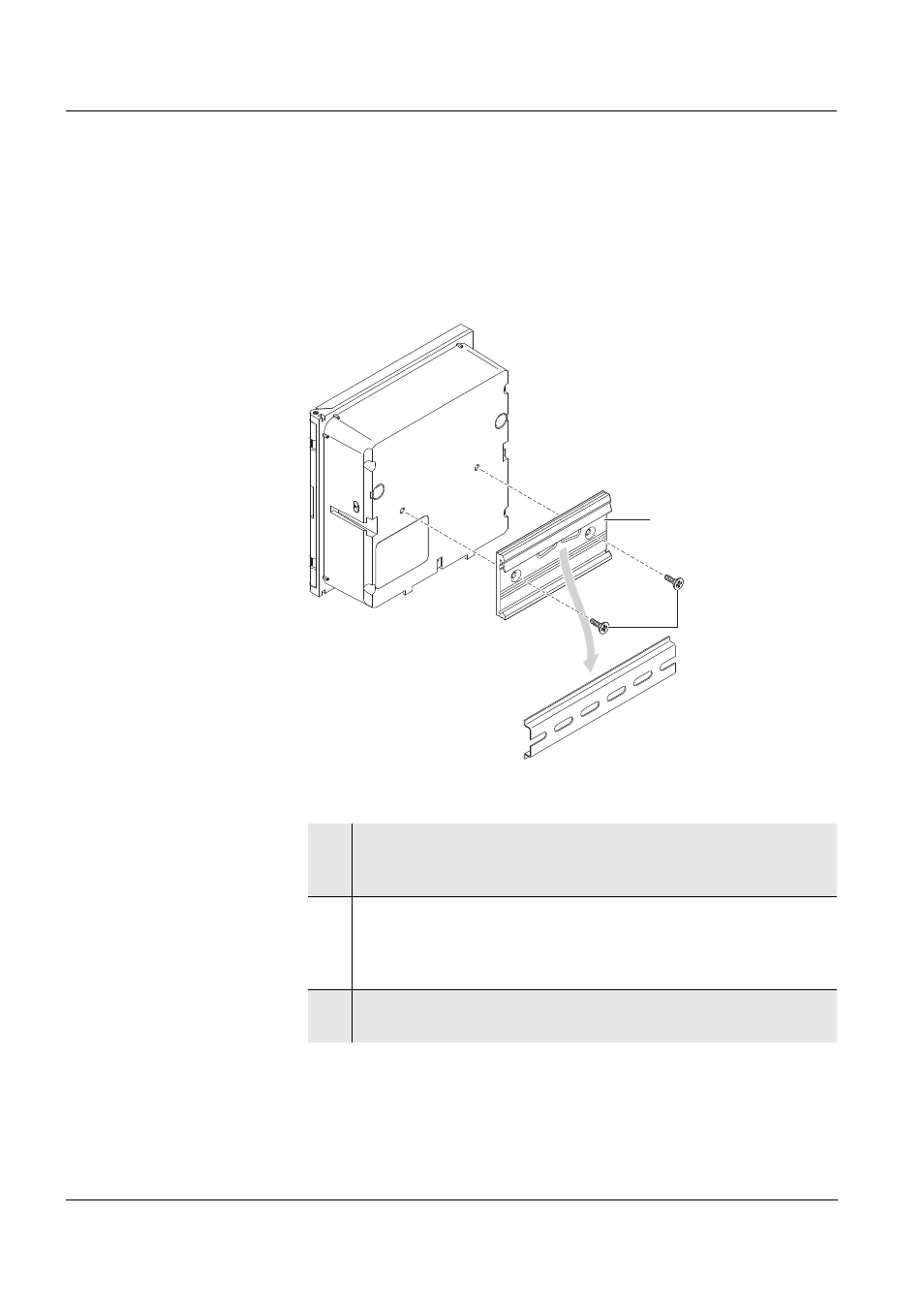

Fig. 3-25 Mounting the MIQ module on a top hat rail
1 Screw the clamping assembly (pos. 1 in Fig. 3-25) onto the
back of the MIQ module with the two plastic tapping screws
(pos. 2).
2 Attach the MIQ module onto the top hat rail from above using
the clamping assembly and press against the rail until the
clamping assembly clicks into place. The MIQ module can be
moved sideways afterwards.
3 To unhook the MIQ module, press it downwards and pull it
forwards at the bottom.
1
2
For stack mounting remove label and install contact carrier
