Installation

System 2020 XT USB

3 - 44

ba76019e01

12/2012

Second start phase

As soon as the terminal is successfully initialized, the measured value
display appears (fourfold display). In the case of IQ sensors that are not
yet providing measured values, "Init" appears temporarily:

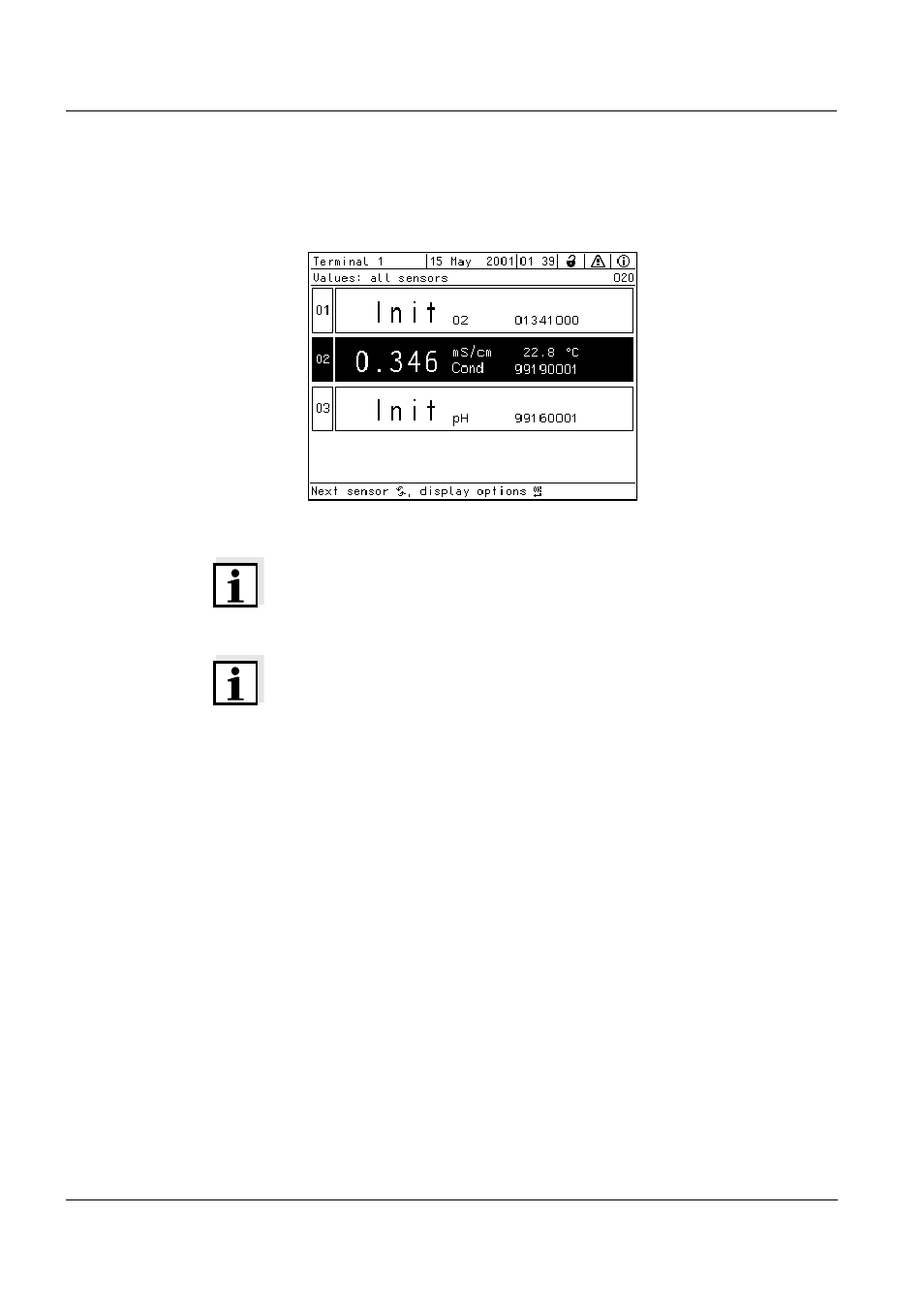

Fig. 3-31 Display after initialization of the terminal

Note
Assign a name to each IQ sensor after putting it into operation for the
first time so you can identify it more easily. How to assign a sensor
name is described in section 5.5.1 on page 5-12.

Note
If the system start failed, see chapter 7 W

HAT

....
