Structure of the log
book

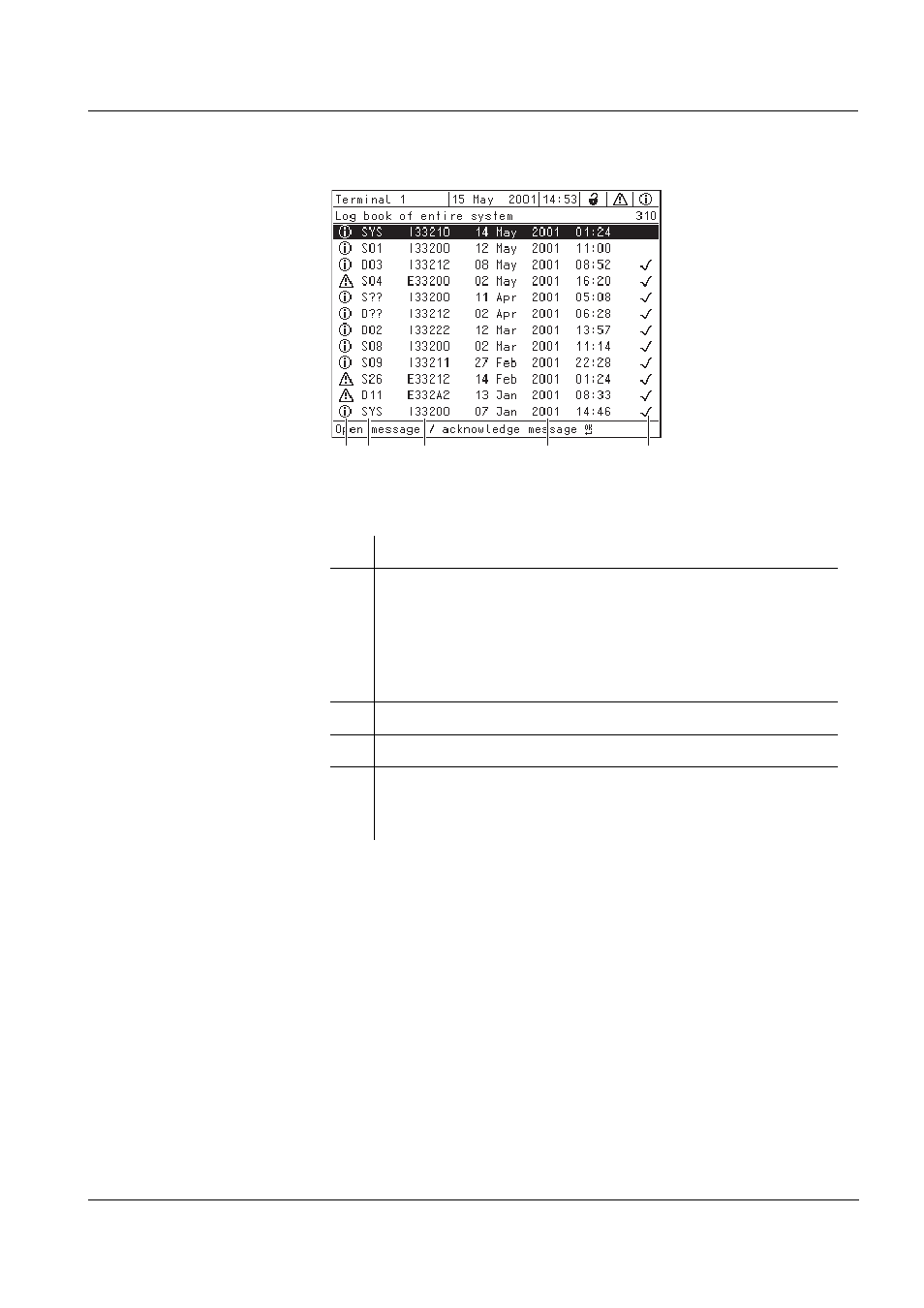

Fig. 4-14 Log book of entire system
The system provides the following log books:
 Log book of entire system:
List of all messages from all modules
 Log book of selected sensor:
List of all messages from a single IQ sensor.
There is a detailed message text for each message of a module that is
ready for operation. The detailed message text on each message is
given in the log book (see section 4.5.3) and in the operating manual of
the registering module.
1 Message category (error or info symbol)
2 Module that triggered the message.
SYS system (controller)
S01
IQ sensor (number 01)
S?? IQ sensor (inactive, dataset deleted)
D01 MIQ output module (number 01)
D?? MIQ output module (inactive, dataset deleted)
3 Message code
4 Date and time of the message
5 Status field of the message
✔
message is acknowledged
No checkmark message is not acknowledged
1 2 3 4 5
