System 2020 XT USB Installation
3 - 43 ba76019e01 12/2012
Configuration of the
MIQ/TC 2020 XT
During the commissioning of the MIQ/TC 2020 XT at the
IQ S
ENSOR N ET a query appears asking whether the MIQ/TC 2020 XT
should work as a controller or just as a terminal. Select the required
function for each MIQ/TC 2020 XT.

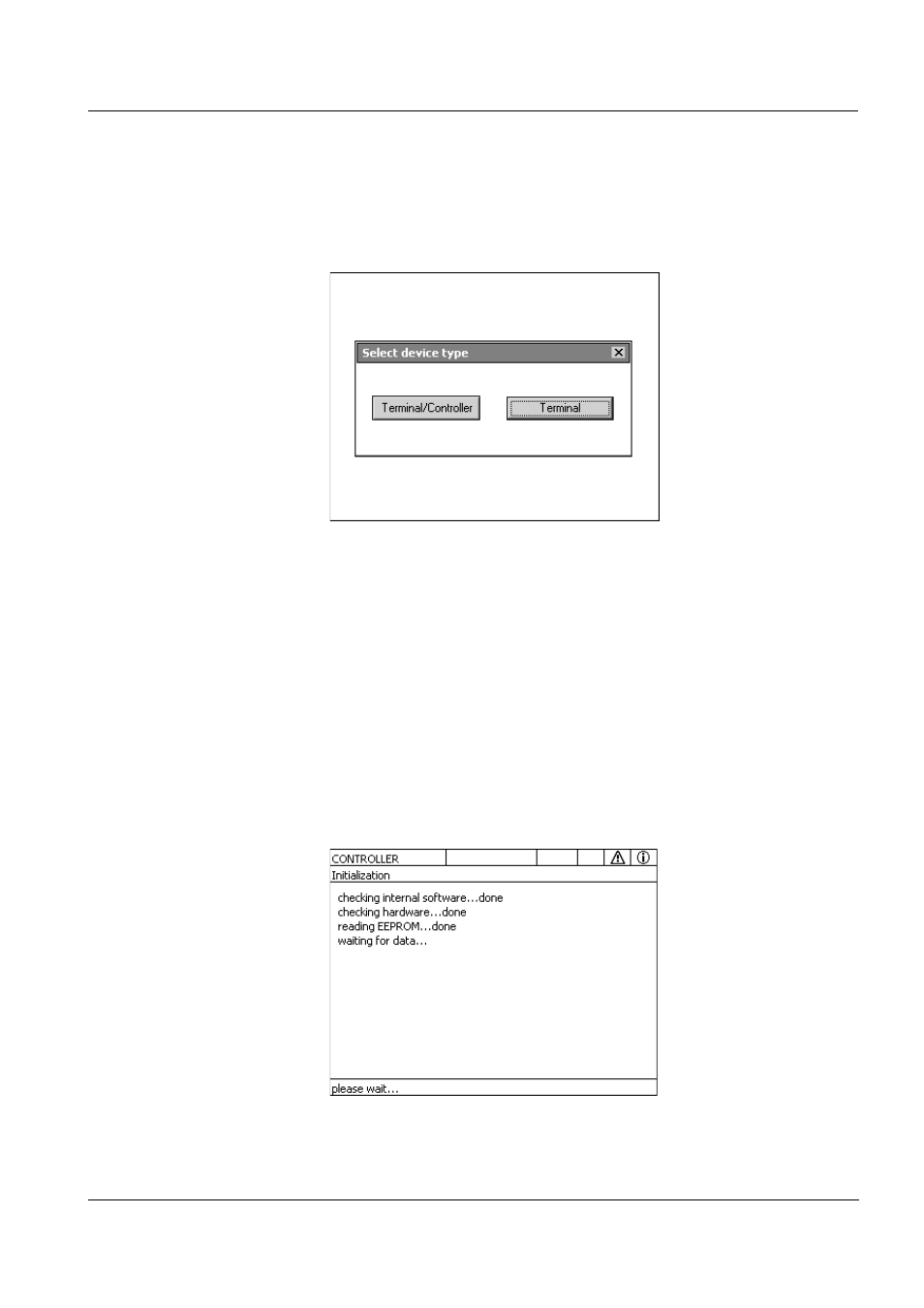

Fig. 3-29 Selecting the instrument type
The MIQ/TC 2020 XT will then try to register with the selected
functionality on the IQ S
ENSOR N ET . Note that only one controller can
be active in an IQ S ENSOR N ET .
Details on the configuration of the MIQ/TC 2020 XT, see section 3.11.
Initial start phase In the initial start phase, all IQ S ENSOR N ET components are
automatically registered on the MIQ/TC 2020 XT controller module and
the terminal is initialized. Then, the system performs a self test. This
process may last a few seconds. During this period, the following
display appears:
Fig. 3-30 Display during the initialization process
