Installation System 2020 XT USB
3 - 46 ba76019e01 12/2012

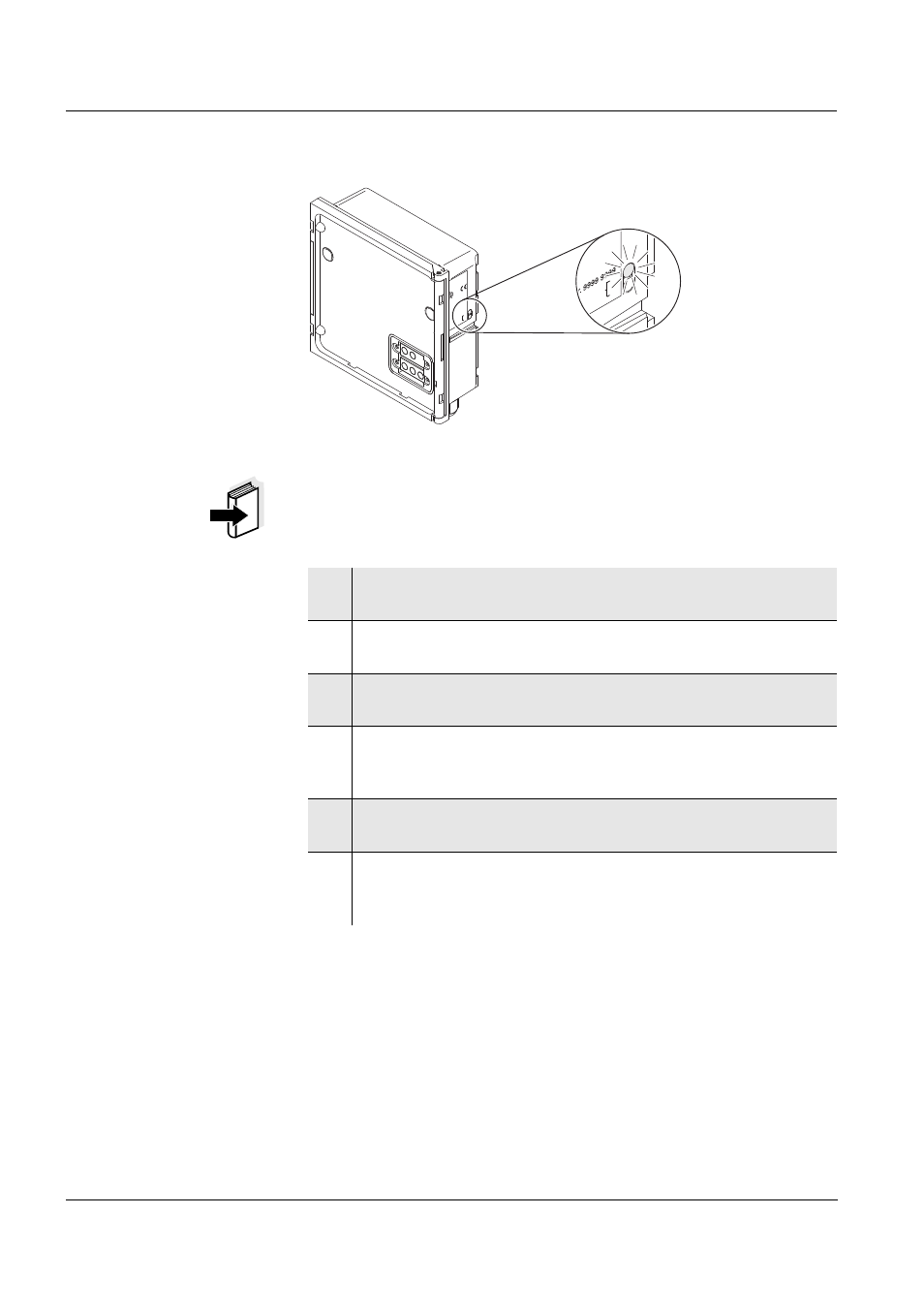

Fig. 3-32 Voltage LED on the MIQ module
Note
You can measure the voltage that is actually available at the
MIQ modules or IQ sensors (see section 7.2.2).
4 Wait until the system start is completed and the measured
value display appears.
5 If necessary, select another display language (see section
5.1 S
ELECTING THE LANGUAGE ).
6 Check that all the IQ sensors are listed in the measured value
display.
7 Check that all the MIQ output modules are listed in the Edit list
of outputs menu (see section 5.8 E
DITING THE LIST OF
OUTPUTS ).
8 If a component is not listed, carry out troubleshooting
according to chapter 7 W
HAT TO DO IF ....
9 Open the log book and acknowledge the messages. In the
case of error messages, follow the instructions for clearing the
error. For more details on the log book, see section 4.5.
20 01 759
US
CAN/CSA ST
D C22 .2 NO . 1 010
CER TIFIE D TO UL S TD 3101 CO NFOR MS TO
Ser .-Nr . 9 999 9999
Po we r !
OK
MIQ
Po
we
r !
OK
