System 2020 XT USB Installation
3 - 33 ba76019e01 12/2012
Materials required  SD/K 170 sun shield (see chapter 10 A
CCESSORIES AND OPTIONS )
 The MR/SD 170 mounting kit is also required for mounting the sun
shield on a mounting stand or railing (see chapter 10 A CCESSORIES
AND OPTIONS ).
Tools
 Phillips screw driver.
Mounting the
MIQ module under the
sun shield

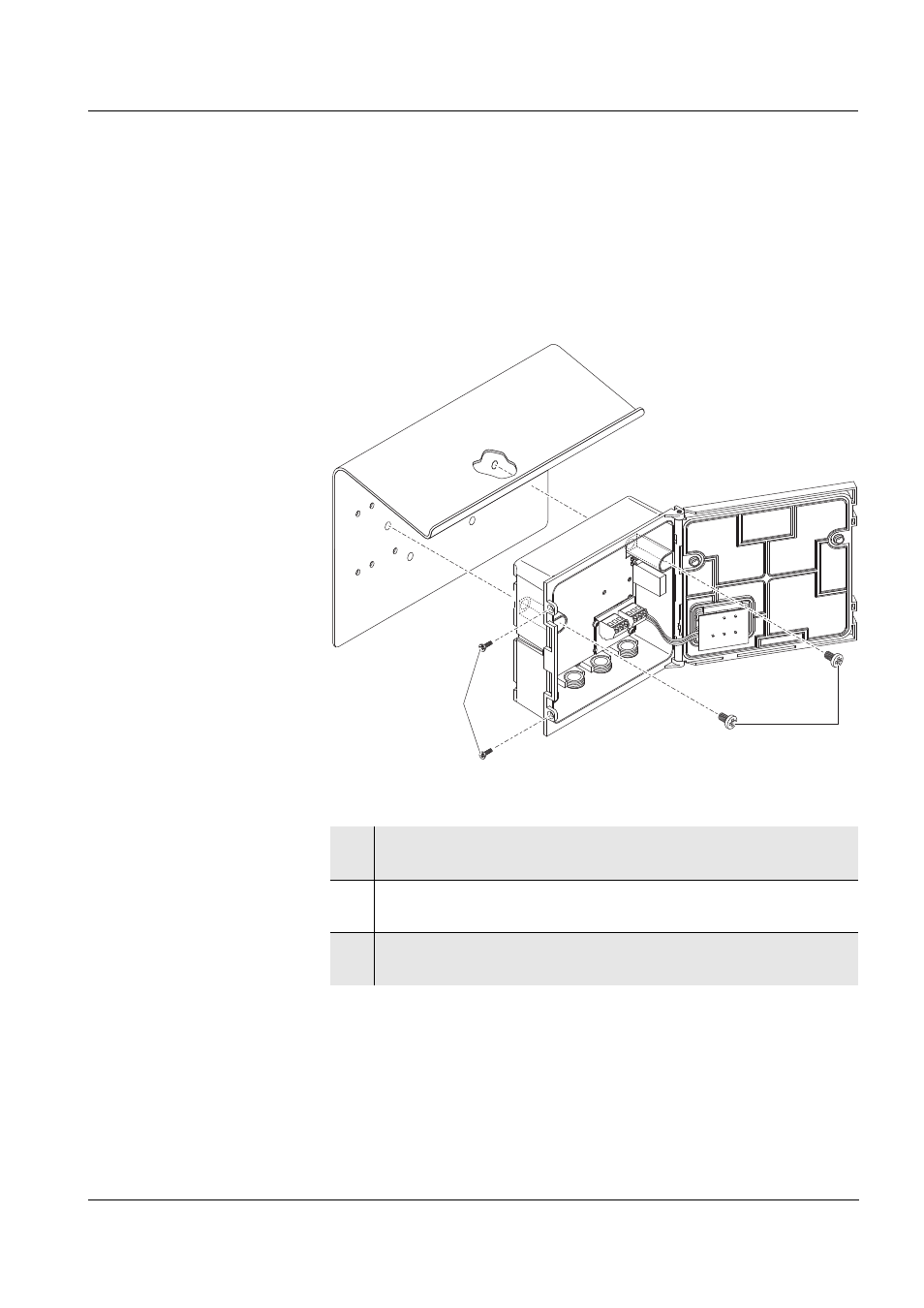

Fig. 3-23 Mounting the MIQ module on the SD/K 170 sun shield
1 Remove the two countersunk screws (pos. 1 in Fig. 3-23) and
swing open the module lid.
2 Position the MIQ module on the sun shield and fix it into place
with the two screws (pos. 2 in Fig. 3-23).
3 Close the module lid and fix it with the two countersunk screws
(pos. 1 in Fig. 3-23).
2
1
