Stacking the
MIQ modules

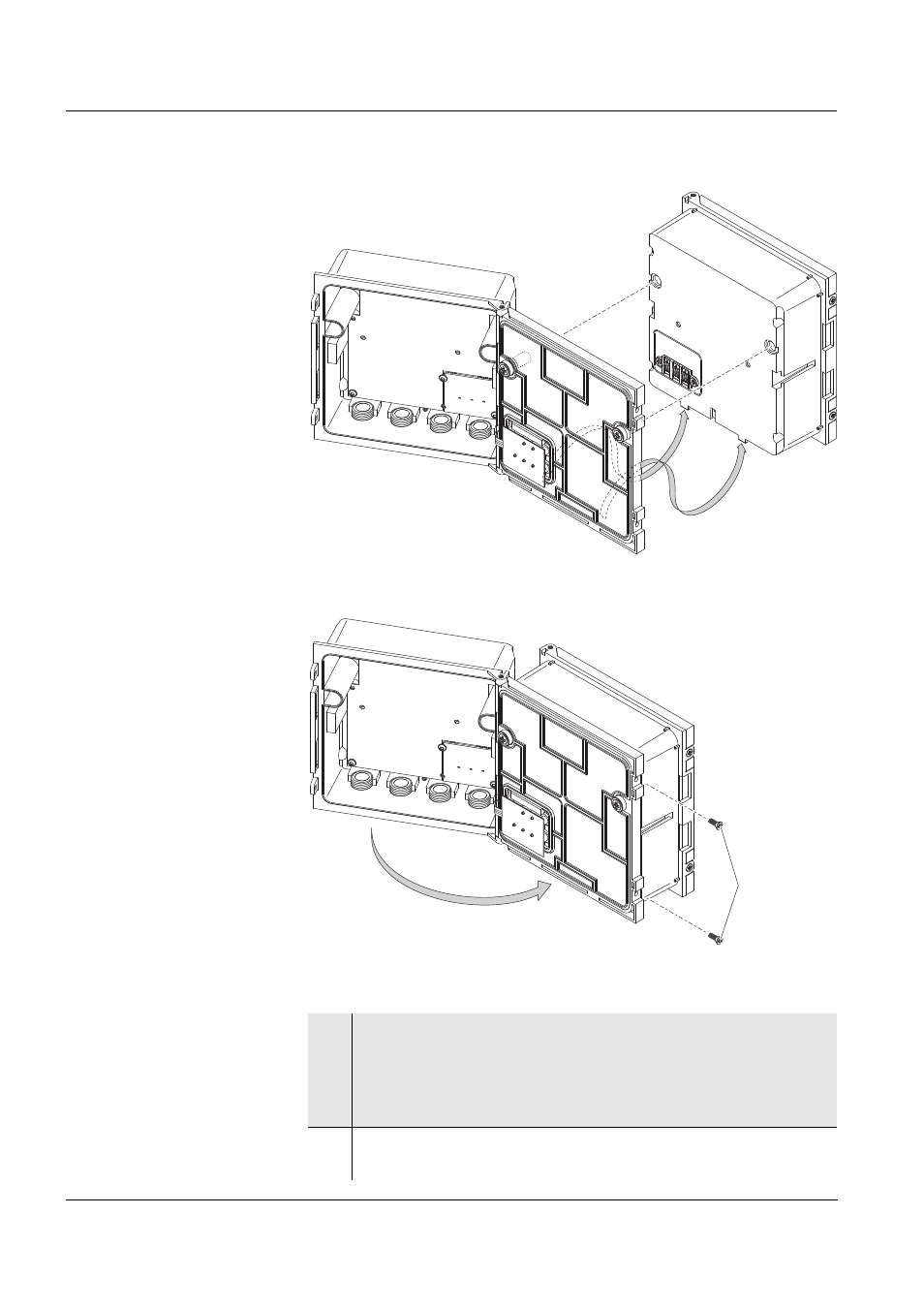

Fig. 3-12 Stacking the MIQ modules (variant 2)
Fig. 3-13 Closing the enclosure (variant 2)
7 Attach the prepared MIQ module to the back of the front
MIQ module. At the same time, ensure that the two clips on the
front MIQ module click into place in the lid of the back
MIQ module. Subsequently, tighten the two screws (pos. 8 in
Fig. 3-11).
8 Check the position of the SN terminator switch and correct it if
necessary (see section 3.9.1).
