3.6.4 Panel mounting
Note
The space required on the panel for a module stack is given in the
dimension drawings in section 8.3.
Note
The front MIQ module of the preassembled module stack must be
removed in order to install the stack. After the installation of the front
MIQ module, the remaining part of the stack can be added to the
installed MIQ module (see section 3.5.2 S
TACKED MOUNTING OF
MIQ MODULES : - Variant 2).
Materials required  PMS/IQ kit for panel mounting (see chapter 10 A
CCESSORIES AND
OPTIONS ).
Tools  3 mm set screw wrench (contained in the panel installation kit).
Mounting the
MIQ module on a panel

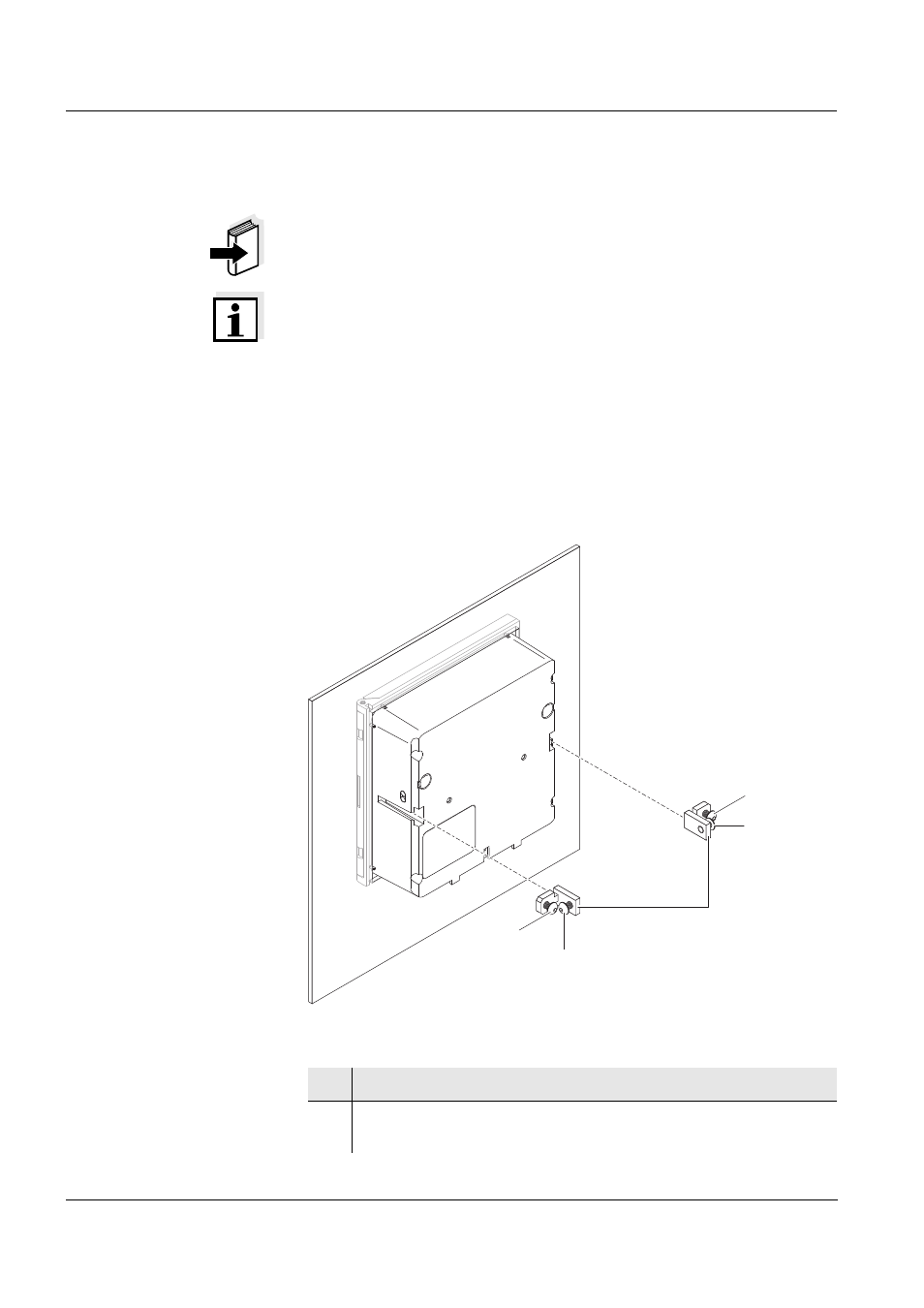

Fig. 3-24 Mounting the MIQ module on a panel
1 Insert the MIQ module in the panel aperture from the front.
2 Slightly unscrew the screws (pos. 2 and 3) of the two angle
brackets (pos. 1 in Fig. 3-24), but do not remove them.
Fo r sta
ck m
ou nting
rem
ove lab el
and in
stall con
tact carrier
