Asus RS162-E4/RX4 - Manual (Page 70)

Chapter 4: Motherboard information -

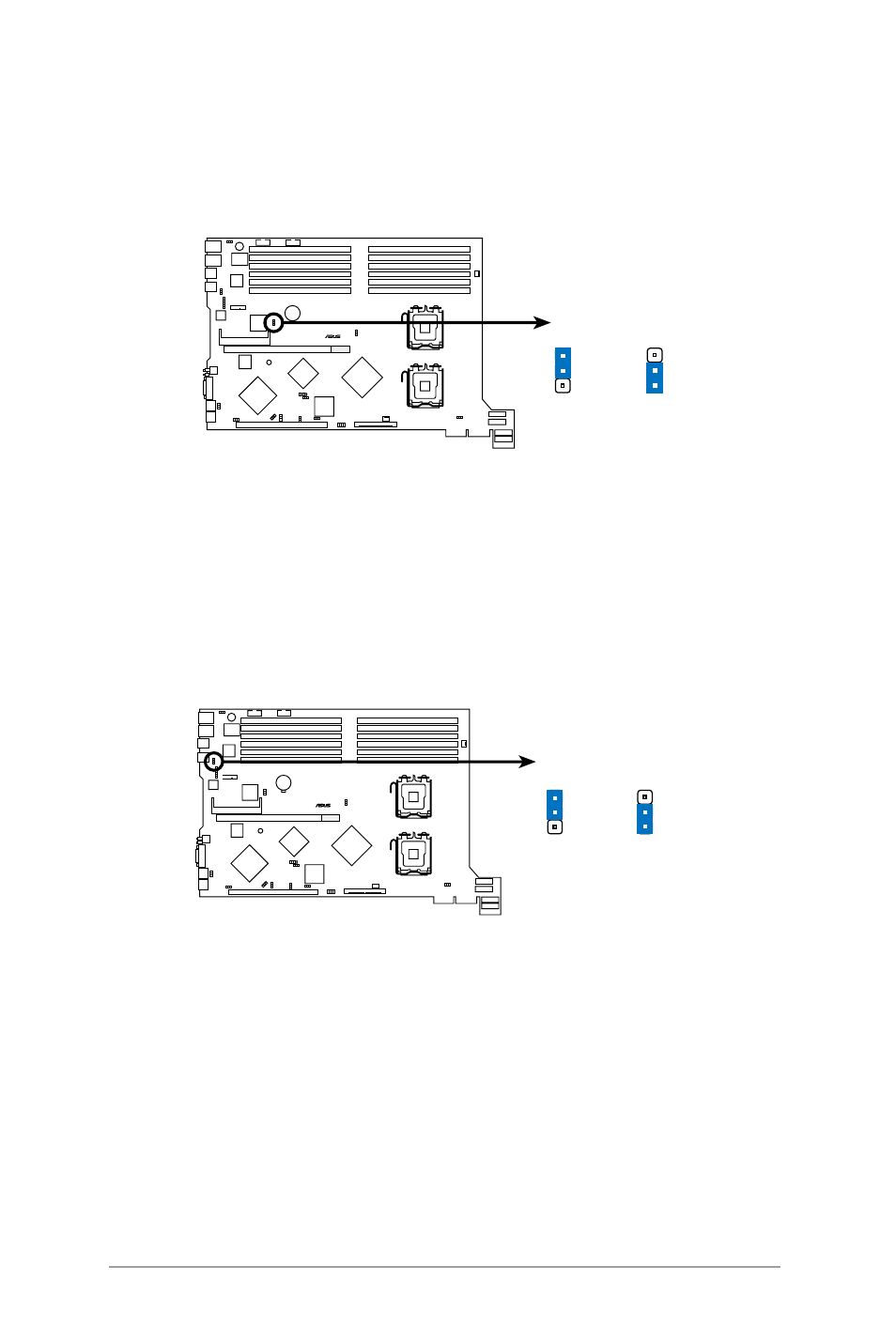

5. Gigabit LAN1 controller setting (3-pin LAN1_EN1)
This jumper allows you to enable or disable the onboard Broadcom
BCM5721 Gigabit LAN1 controller. Set to pins 1-2 to activate the Gigabit
LAN feature.
® DSBF-DR1
DSBF-DR1 LAN_EN settng
LAN_EN1
Enable
(Default)
Disable
3
2 2
1
4. VGA controller setting (3-pin VGA_EN1)
These jumpers allow you to enable or disable the onboard ATI RAGE-XL PCI
VGA controller. Set to pins 1-2 to activate the VGA feature.
®
DSBF-DR1
DSBF-DR1 VGA settng
VGA_EN1
Enable
(Default)
Disable
3
2 2
1
