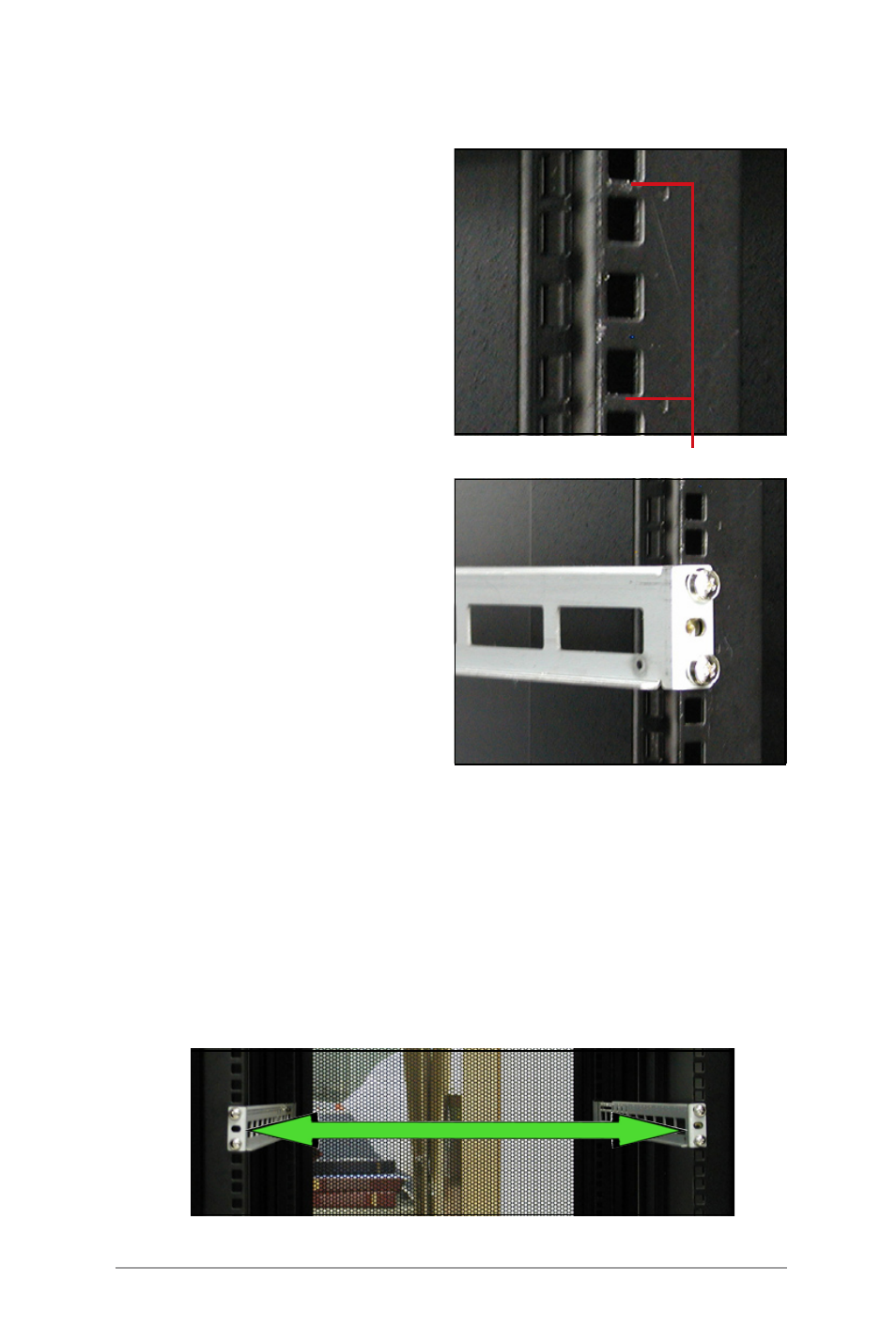

3.3 Attaching the rails to the rack
To attach the rails to the rack:
1. Select one unit of space (1U)
on the rack where you wish to
install the barebone server.
2. Remove the screws from the 1U
space on the rack front.
1U space
3. Align the front end holes of a
rack rail pair to the 1U space.
4. Drive in two screws on the outer
holes to secure the front end.
5. Find the rear 1U space that corresponds to the front 1U space where
you attached the rail.
6. Remove the screws from the rear 1U space, and align the rear end
holes.
7. Drive in two screws on the outer holes to secure the rear end.
8. From the rack front, find the corresponding 1U space for the second rail
pair.
9. Repeat steps 2 to 7 to attach the second rail pair. When properly
installed, the rack rails appear as shown.
