ASUS RS162-E4/RX4 -11

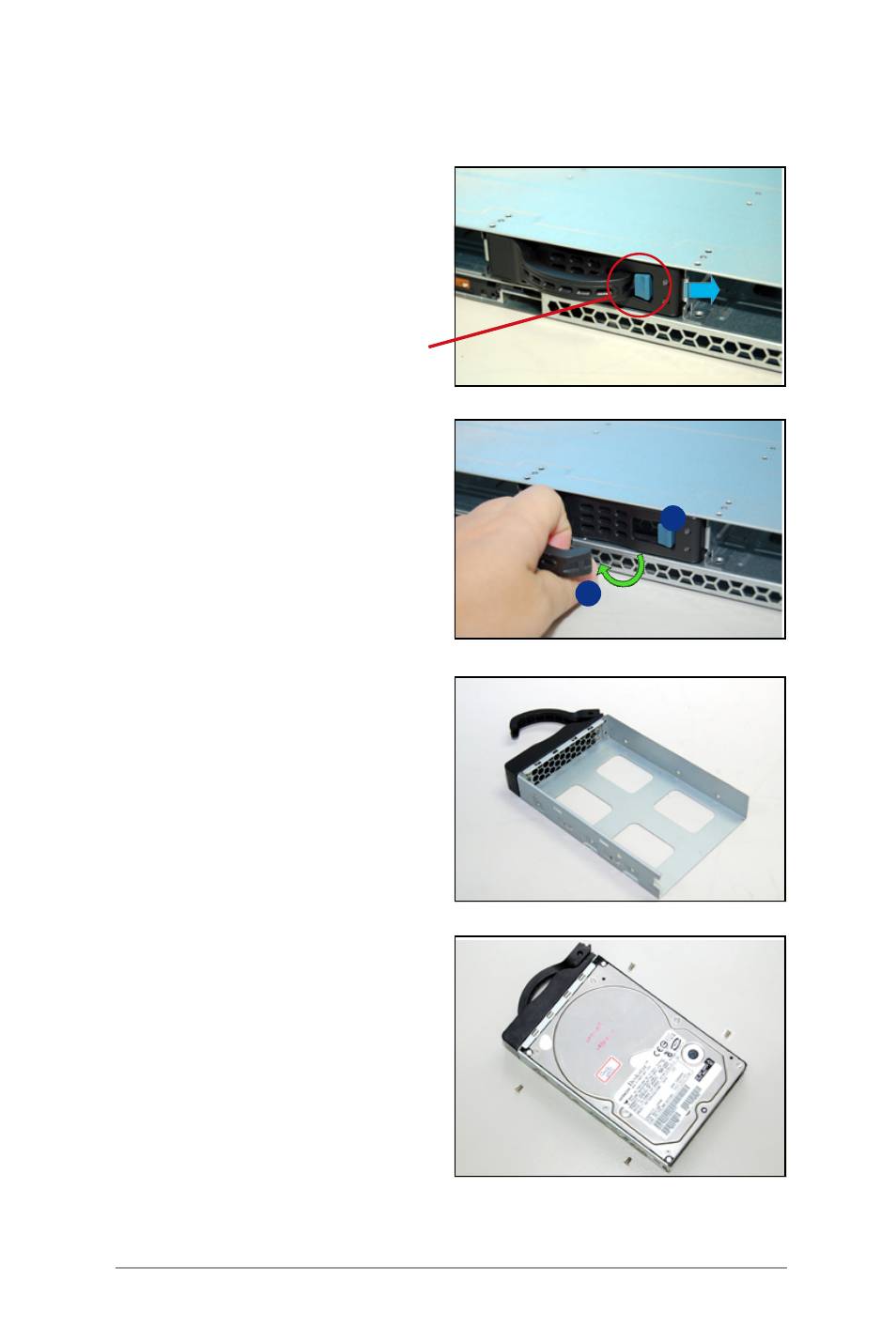

2.4 Hot-swap hard disk drives
To install a hot-swap HDD:
1. Release a drive tray by pushing
the spring lock to the right, then
pulling the tray lever outward.
The drive tray ejects slightly
after you pull out the lever.
retaining button
2. Firmly hold the tray lever and pull
the drive tray out of the bay.
2
1
3. Take note of the drive tray
holes. Each side has three holes
to fit different types of hard
disk drives. Use two screws on
each side to secure the hard disk
drive.
4. Place a hard disk drive on the
tray, then secure it four screws.
