ASUS RS162-E4/RX4

-1

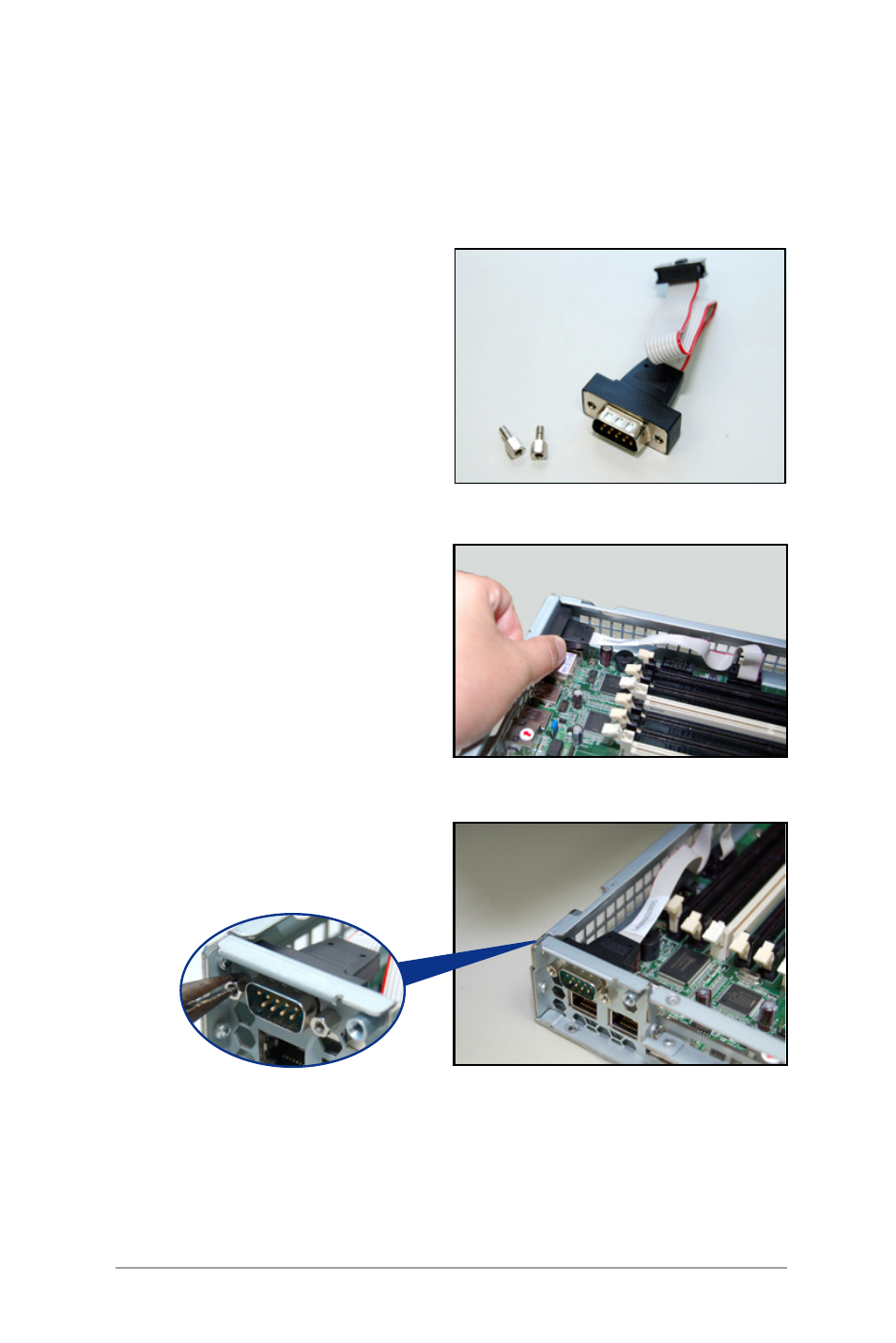

2.6.1 Serial Port cable

The system package provides a set of COM port cable module. You can

install it into the COM1 openning on the rear panel. To install it:

1. Prepare the COM1 port cable

module from your product

package.

2. Open the top cover panel.

Connect one end of the cable

to the COM1 connector on the

board, and then fit the other end

into the COM1 openning of the

rear panel.

3. Secure the rear panel COM1 port

to the rear panel using the two

screws (see the figure).

4. Re-place the top cover panel.
