1.5 Internal features

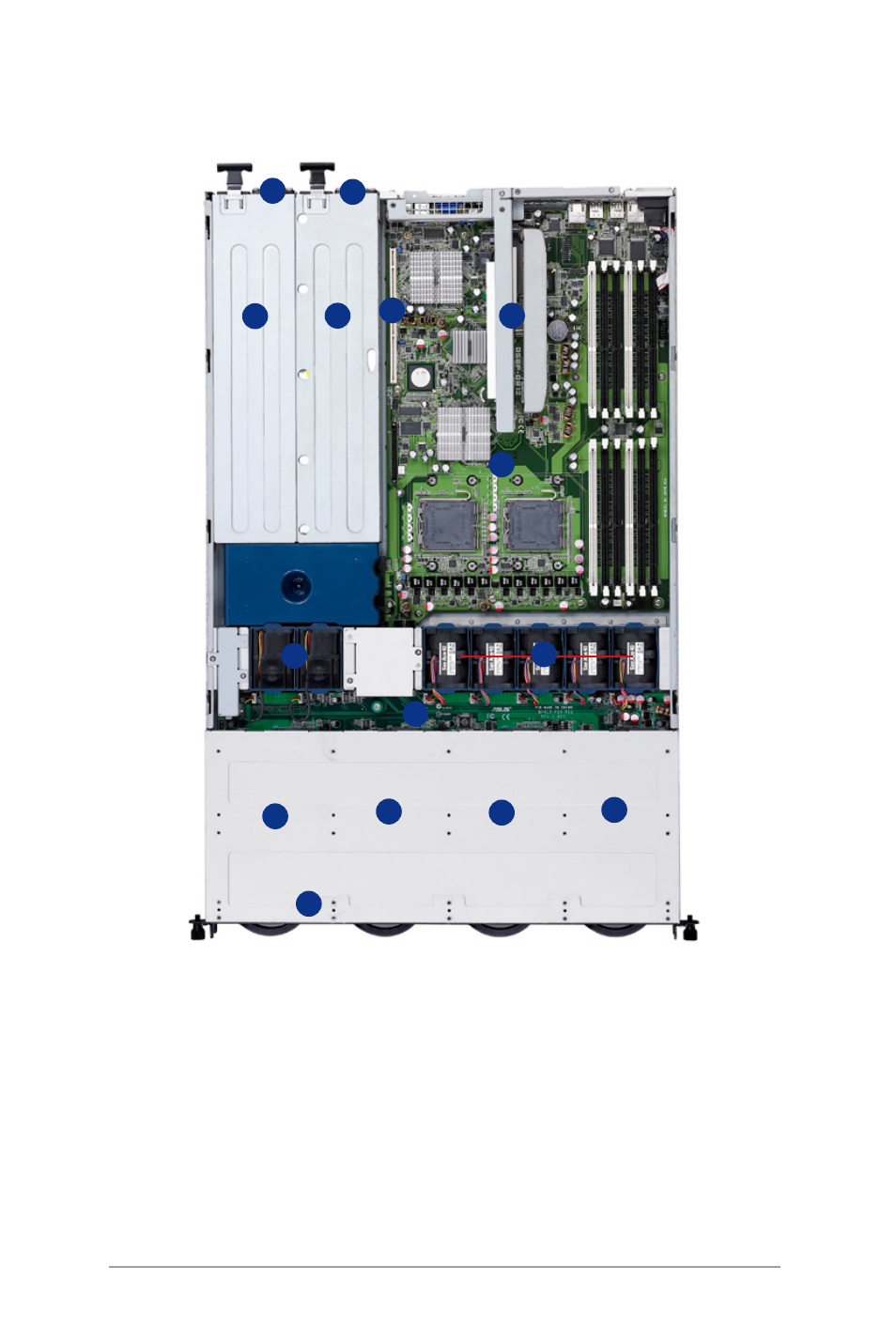

The barebone server includes the basic components as shown.
1. PCI-X riser card bracket
2. Power supply rear fans
3. ASUS DSBF-DR12 motherboard
4. Redundant power supply
5. Device fans (40mm x 56mm) x 2
6. System fans (40mm x 28mm) x 5
7. PCI-X and PCI-E riser card 8. SAS/SATA-II backplane
9. Hot-swap HDD tray 1(port0)
10. Hot-swap HDD tray 2(Port1)
11. Hot-swap HDD tray 2(Port2)
12. Hot-swap HDD tray 2(Port3)
13. Slim optical drive
2
8
7 4
9
1
3
10
2
11
5
4
6
12
13
