ASUS RS162-E4/RX4

-1

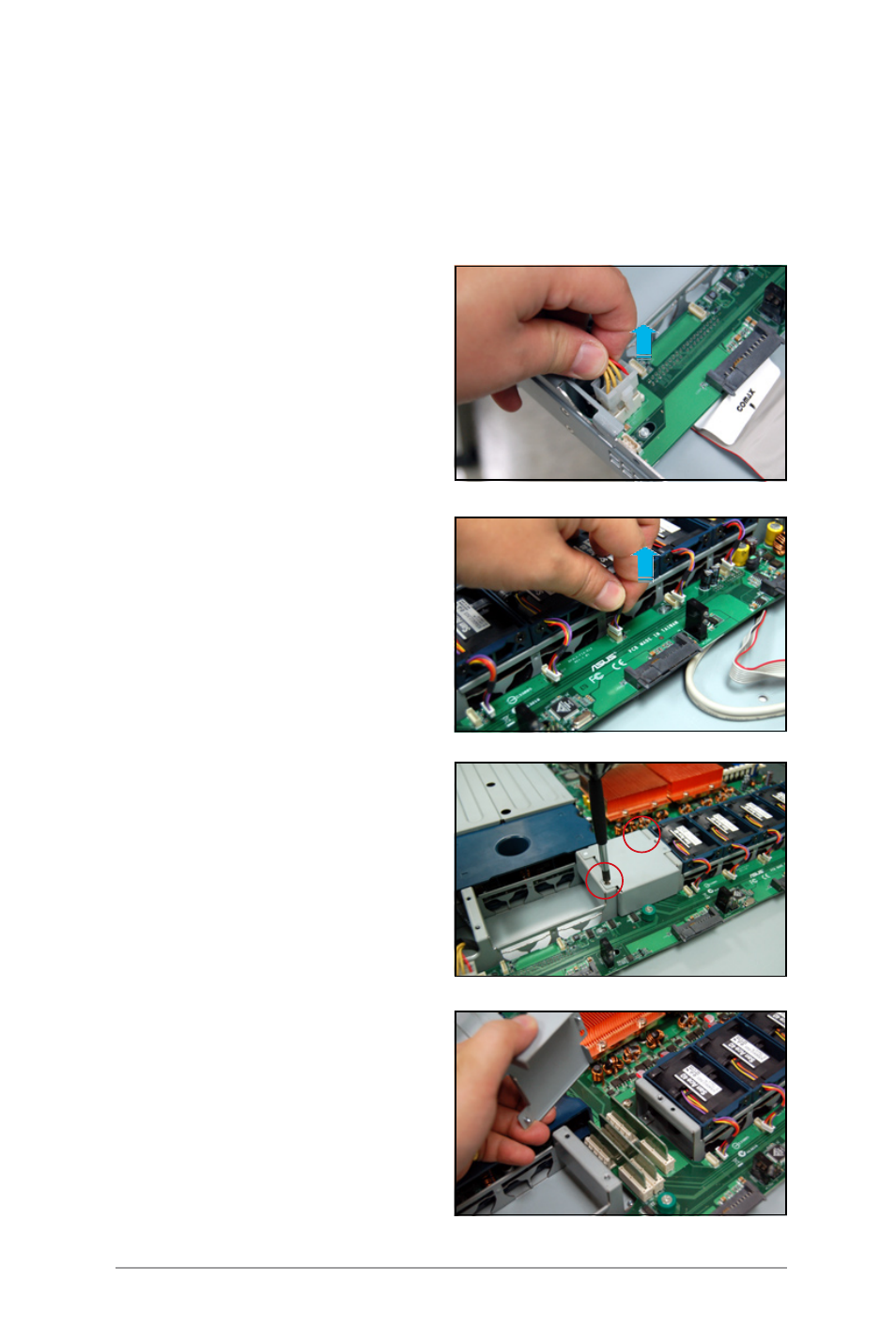

2.8.5 SAS/SATA2 Backpanel and Bridge Card

Follow the steps below to remove/install SAS/SATA2 Backplane and the

Bridge Card.

1. Remove the top cover panel,

then disconnect the 8-pin power

cord to the SAS/SATA2 rear

panel.

To remove the bridge card and and SAS/SATA Backplane:

2. Disconnect the fan cables to the

rear panel.

3. Using a screw driver to remove

the screws on the cover of the

bridge card.

4. Remove the cover panel to

expose the bridge card that

connects SAS/SATA2 rear panel

and the system board.
