Asus RS162-E4/RX4 - Manual (Page 141)

ASUS RS162-E4/RX4 -
To an existing Windows ® 2000/2003 Server OS
To install the RAID controller driver on an existing Windows ® 2000/2003
Server OS:
1. Restart the computer, then log in with Administrator privileges.
2. Windows
® automatically detects the RAID controller and displays a New
Hardware Found window. Click Cancel.
3. Right-click the My Computer icon on the Windows ® desktop , then select
Properties from the menu.

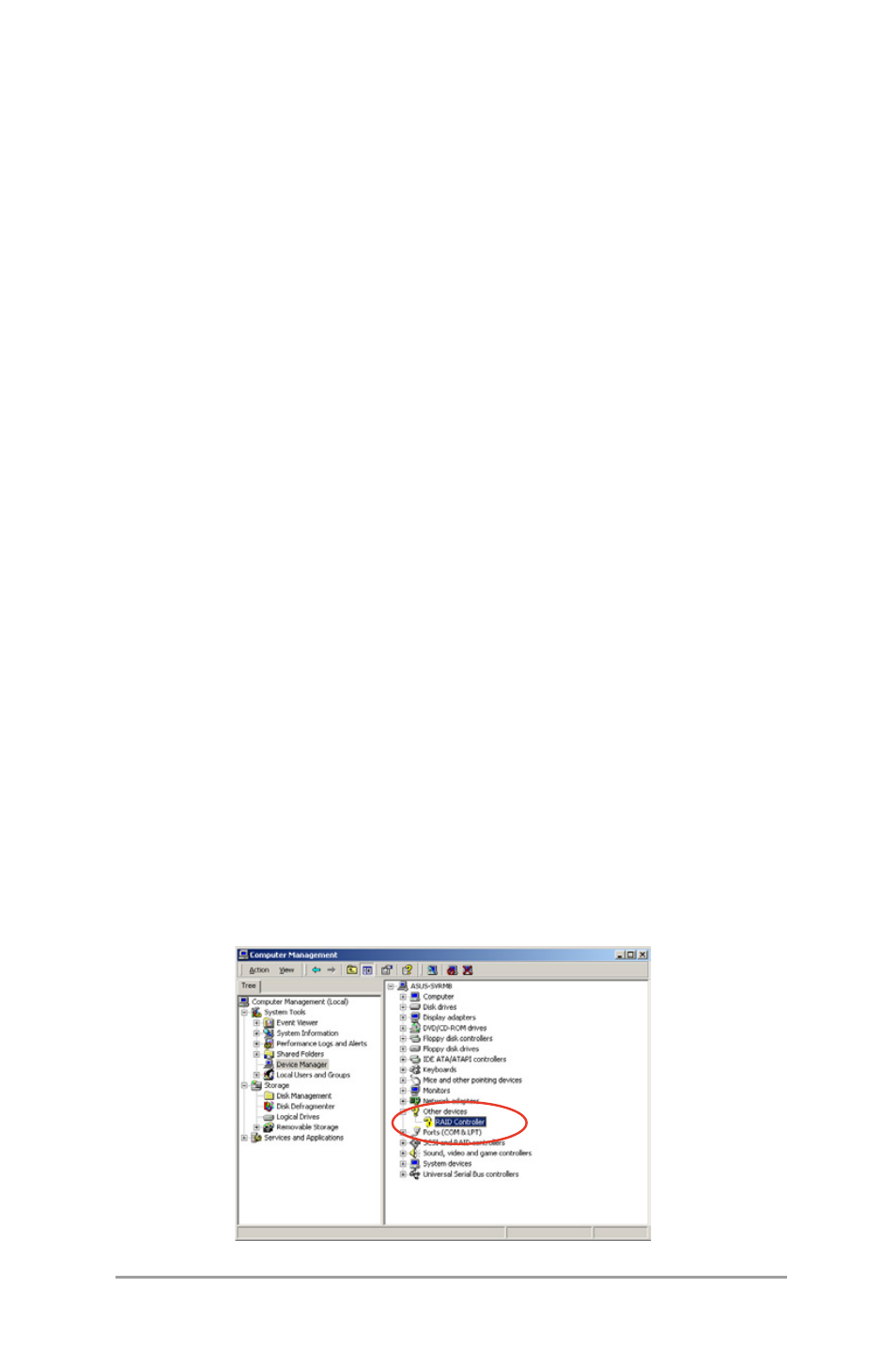

4. Click the Hardware tab, then click the Device Manager button to display
the list of devices installed in the system.
6. The Windows ® 2000/2003 Setup loads the RAID controller drivers
from the RAID driver disk. When prompted, press to continue
installation.
7. Setup then proceeds with the OS installation. Follow screen instructions
to continue.
• LSI1068 PCI-X SAS controller driver:
- For Windows 2000, select LSI Logic Fusion-MPT Drivers for SAS 1068
(Windows 2000).
- For 32bit Windows Server 2003, select LSI Logic Fusion-MPT SAS
Driver (Server 2003 32-bit).
- For 64bit Windows Server 2003, select LSI Logic Fusion-MPT SAS
Driver (Server 2003 x64).
• Intel ® 6321ESB LSI Logic Embedded SATA RAID driver:
- For Windows 2000 or 32bit Windows Server 2003 OS, select LSI Logic
Embedded SATA RAID.
- For 64bit Windows Server 2003 OS, select LSI Logic Embedded SATA
RAID(Intel IA32E).
