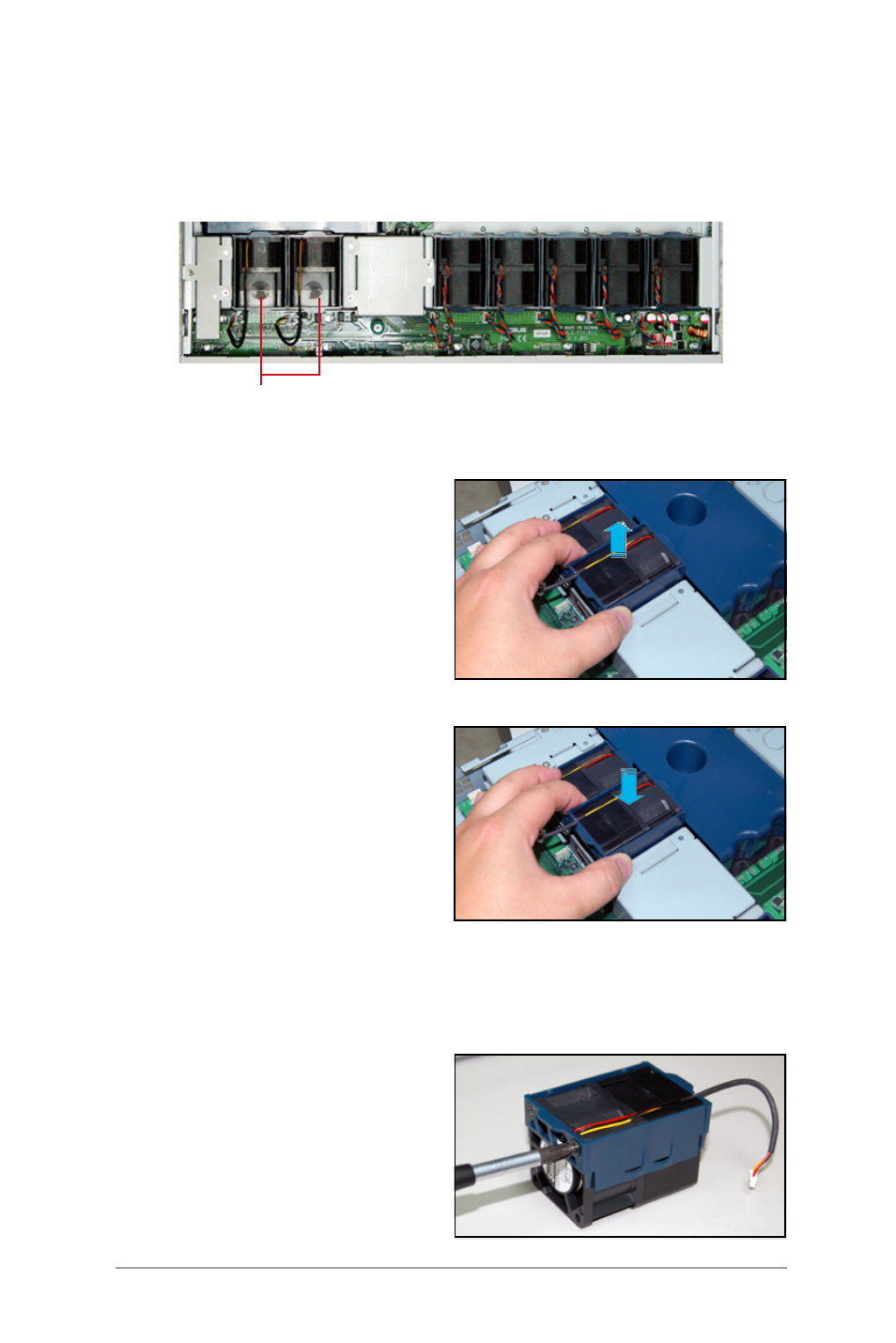

2.8.2 Device fans
The system comes with two 40mm x 28mm device fans (15500 rpm),
please refer to the figure below for the location.
40mm x 28mm device fan assembly
1. Disconnect the device fan cable
form the connector on the
backplane board.
2. Lift the fan, then set aside.
To remove the device fans:
1. I n s e r t t h e f a n t o t h e f a n
cage. Take note of the airflow
directional arrows embossed on
the fan side.
2. Connect the device fan cable
to the fan connector on the
backplane board.
To install the device fan:
2.8.3 Device fan with dummy case
The device fan for the PSU comes with a dummy case that allows it to fit in
the fan cage. Follow these instructions when replacing these fans.
1. Follow the instruction above to
remove the fan from the system.
2. Using a screw driver to remove
the two screws on the fan
assembly as shown.
