Chapter 2: Hardware setup

-1

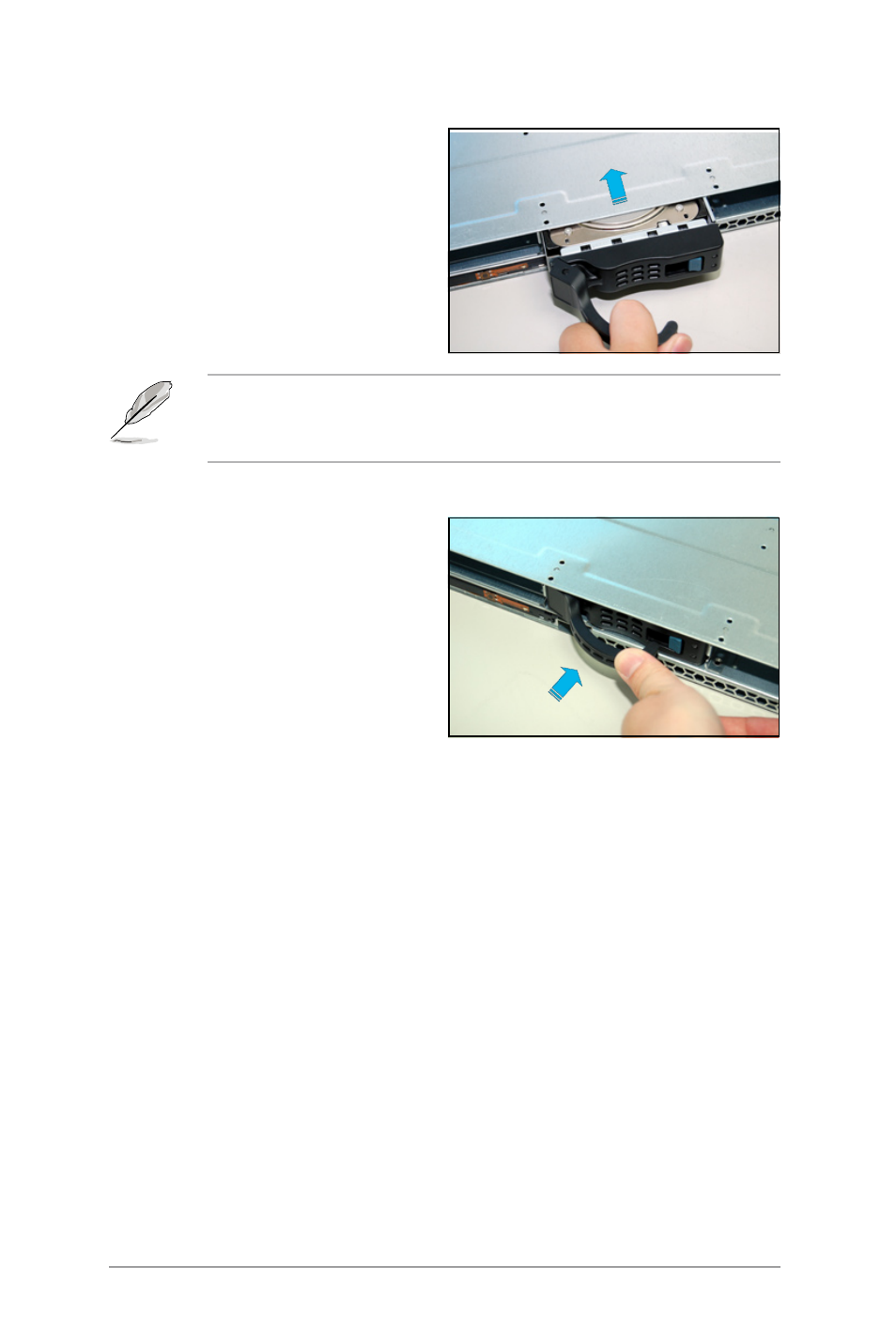

5. Cearfully insert the drive tray

and push it all the way to the

depth of the bay until just a

small fraction of the tray edge

prottrudes.

6. Push the tary level until clicks,

and secures the drive tray in

place. The drive tray is correctly

placed when its front edge aligns

with the bay edge.

7. Refer step 1 to 6 if you wish to

install a second , third and/or

fourth drive.

When installed, the SAS/SATA connector on the drive connects to the

SAS/SATA connector on the backplane. Refer to the section 2.7 SAS/

SATA backplane cabling for more information.
