ASUS RS162-E4/RX4

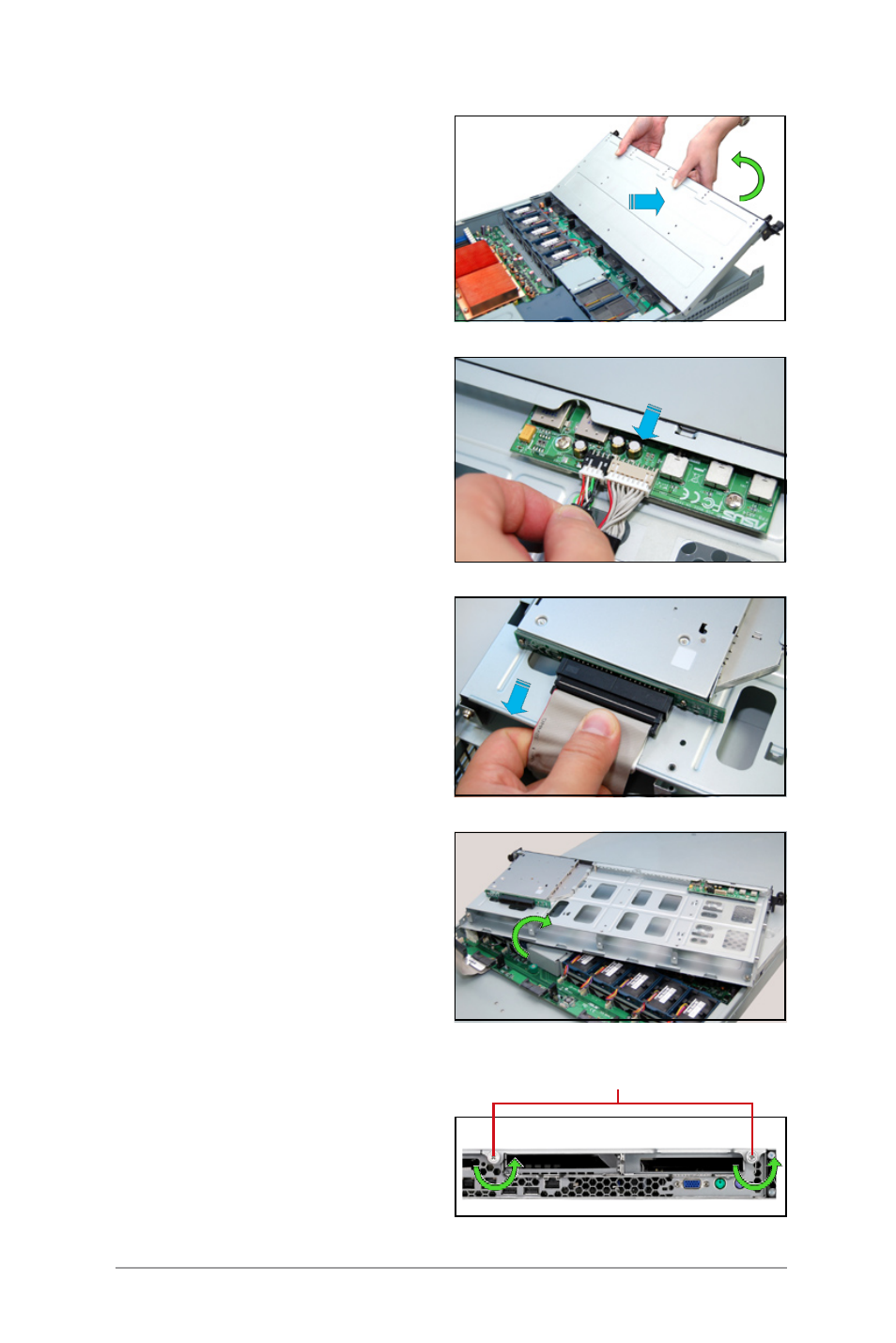

5. Push the front side of the top

cover panel forward and lift it to

expose the cable connectors and

slots underneath.

6. Disconnect the LED cable from

the connector on the module

joint to the front panel.

7. Disconnect the optical drive

cable and power cable.

8. Remove the front upper panel

and set it aside.

2.1.2 Removing the rear cover

1. Loosen the two screws that

fasten the upper panel cover to

the real panel cover. Please note

do not remove the screws when

loosening them.

screws
