ASUS RS162-E4/RX4

2.8 Remove components

Before install/uninstall devices,you might need to remove the pre-installed

components in the system. This section tells you how to remove/install the

components.

1. System fans
2. Device fans
3. Redundant PSU and power backplane board
4. SAS/SATA2 Backplane and bridge cards
5. Optical drive
6. Motherboard

2.8.1 System fans

The system provides the follow fan sets:
· Five 40mm x 56mm 15500rpm fans (Dual-fans for unit)
· Two 40mm x 28mm 15500rpm fans

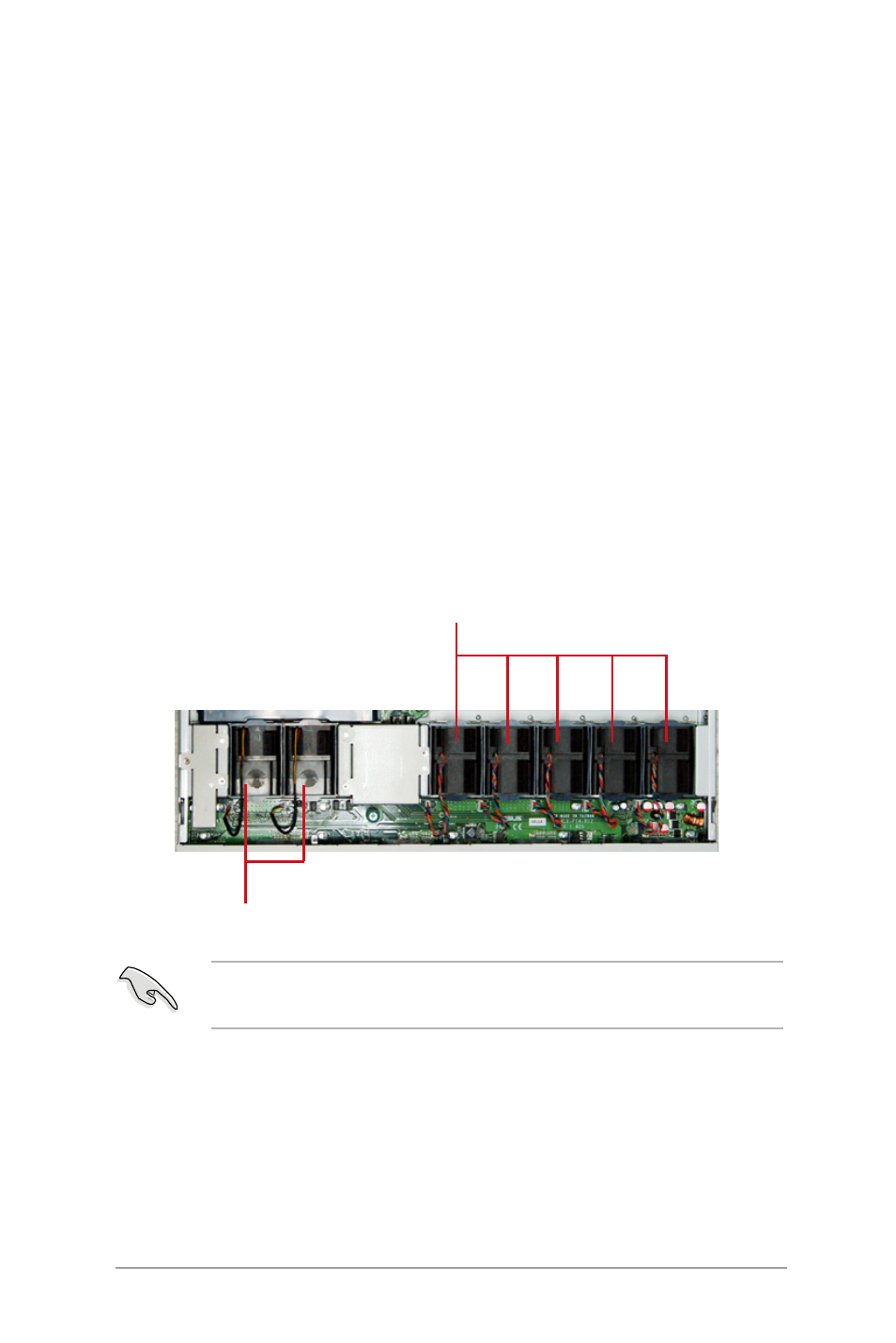

Refer to the figure below for the location of the fans.

40mm x 56mm system fans

40mm x 28mm devices fan assembly

Improper installation of the fan assembly might cause CPU overheat or

system shut down.
