Chapter 2: Hardware setup -0
2.6 Cable connections

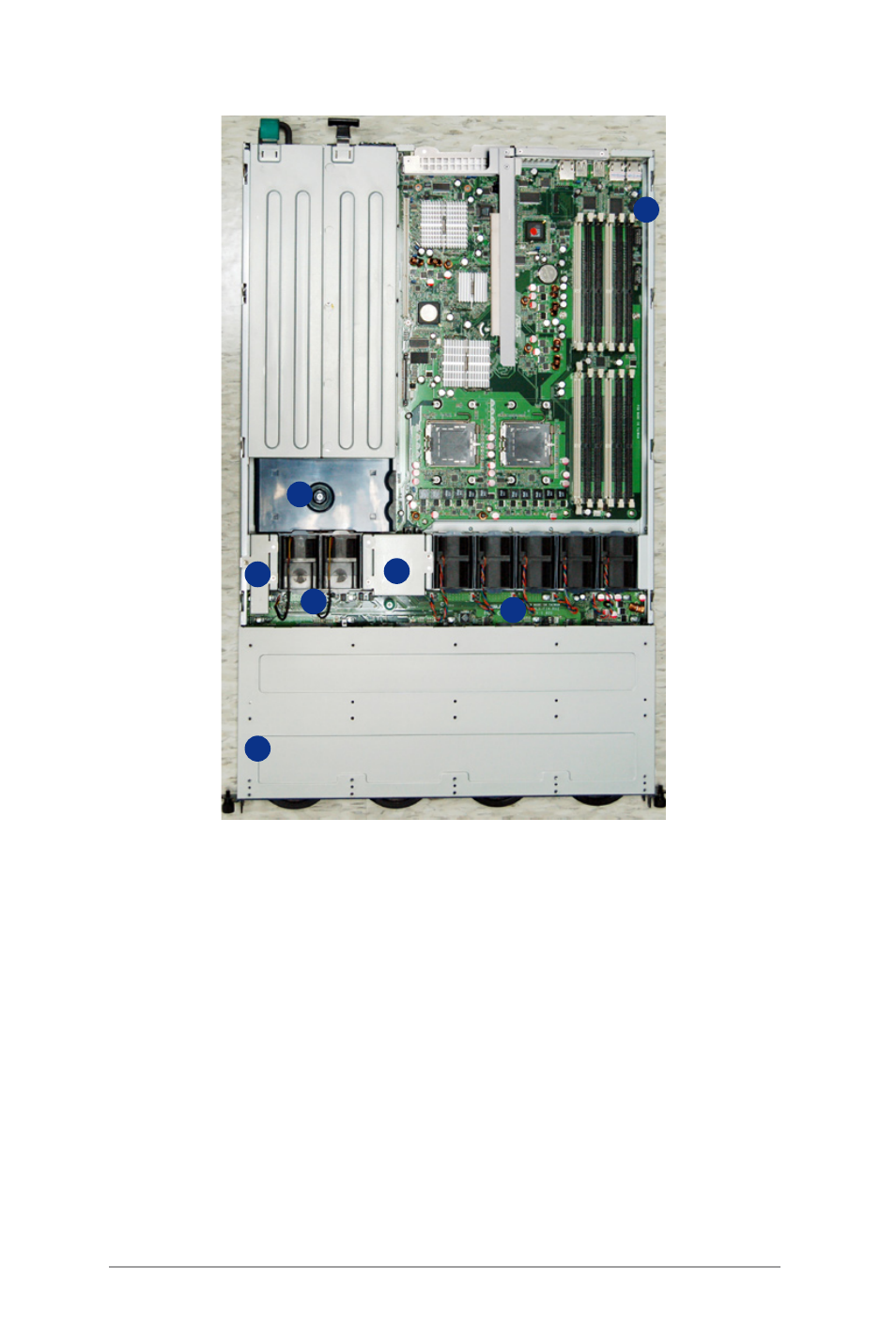

Pre-connected system cables
1. PSU connectting card (connects PSU and the board)
2. Rear panel SAS/SATA2 power connector (hide under the panel,
connects to PSU
3. IDE cable port (hide under chassis, connect rear panel SAS/SATA2 to
optical drive
4. System Fan connector (connect rear panel SAS/SATA2 to system fan)
5. Bridge cards (three), (hide under the cover panel, connect the system
board to rear panel SAS/SATA2)
6. Device fan connector (rear panel SAS/SATA2 to device fan)
7. COM1 cable port (system board to COM1 openning)
2
7
5
4
1
3
6
