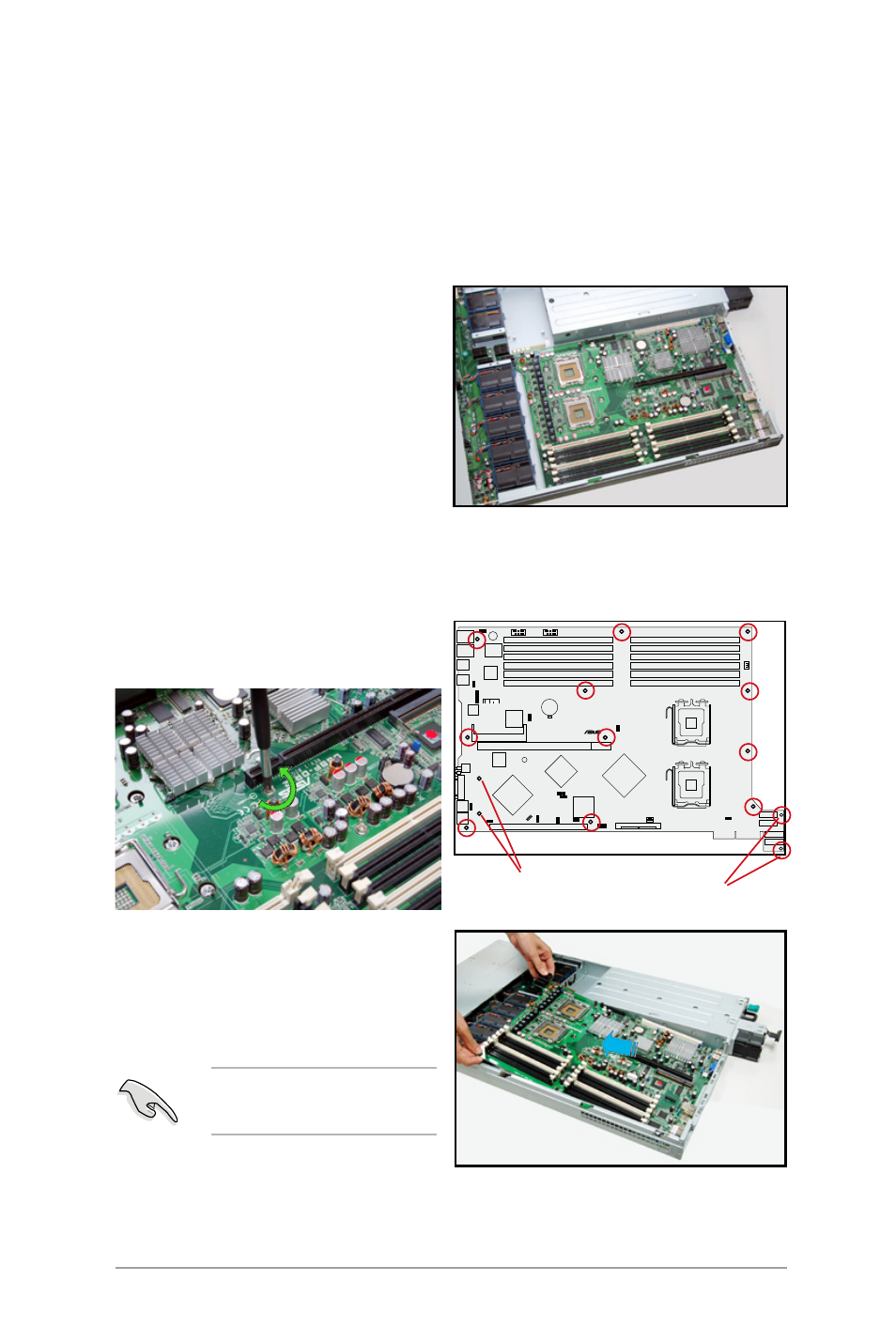

2.8.7 Motherboard
Remove the motherboard
To remove the motherboard:
1. Remove all the siginal cables and power cables connected to the system
board. Please refer to section 2.6 for more information about cables.
2. Remove all the devices including CPU, heatsink,PCI transer card and FBD
memory modules that connect
to the board. Please refer to
the relevant sections for more
information.
3. Remove the PCI riser card and the
screws on it.
4. Remove the PSU Power backplane
and the bridge card. Remove all
the components connected to
the board as shown.
® DSBF-DR1
®
DSBF-DR1
5. Remove the thirteen screws that
secure the board to the chassis.
Retaining poles
6. Remove the boards from the
chassis carefully as shown.
The retaining pole is for
securing the ZCR card.
securing holes
