Asus RS162-E4/RX4 User Manual
Page 46
Chapter 2: Hardware setup
-

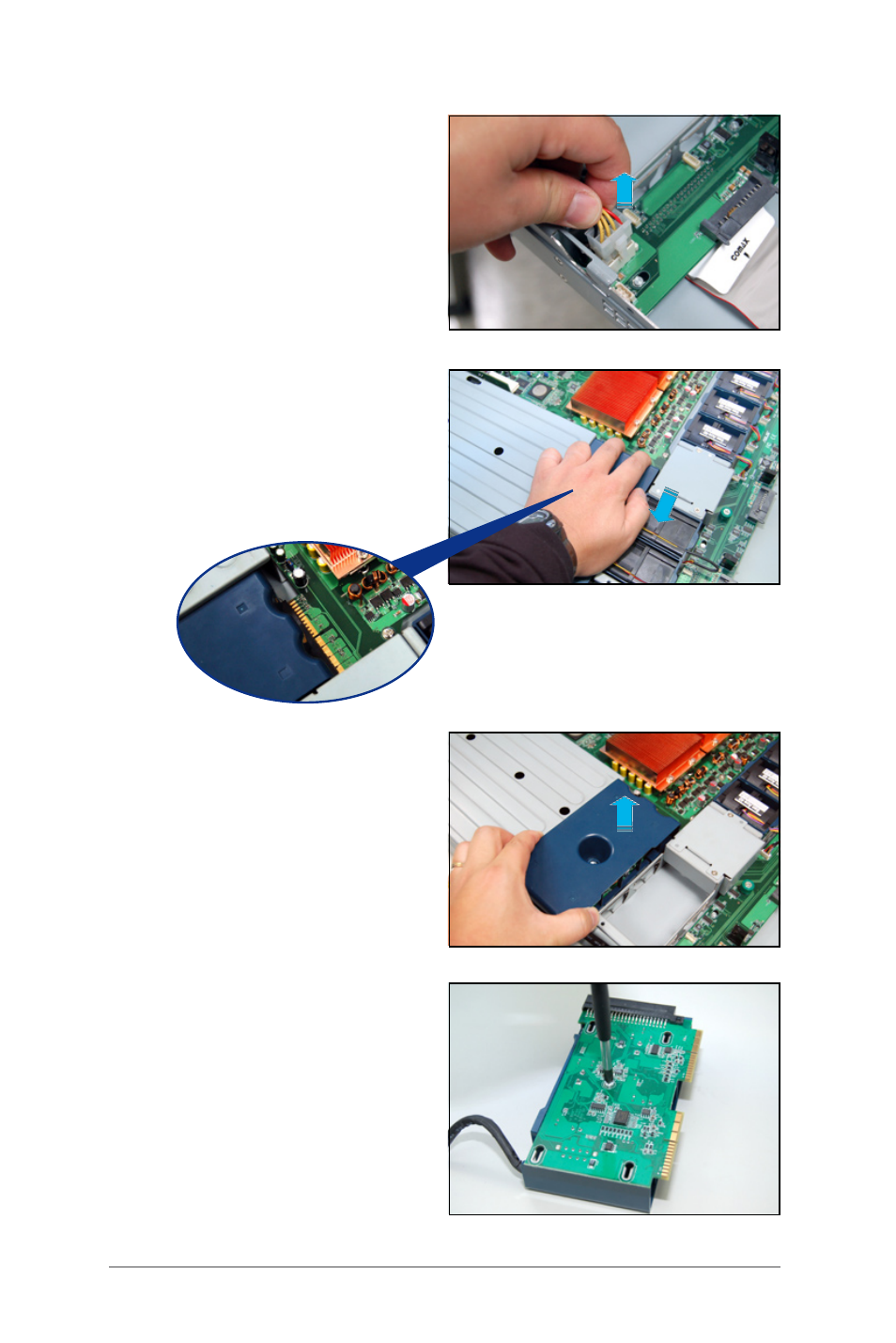

3. Remove the 8-pin power cable
connected to the SAS/SATA
backplane board.
4. Push the power backplane board
as shown until it is completely
removed from the motherboard.
5. Set the power backplane board
aside.
6. Using a screw driver to remove
the screw on the back of the
power backplane board, then
remove the PSU power backplane
board.
