2.5 Expansion slots

2.5.1 Installing expenstion card

ASUS RS162-E4/RX4 sever has a specially designed PCI riser card. If you

want to install PCI-X and PCI Express x8 expension cards, you have to

remove the mental brackets on the real panel of the chassis first.
To install the PCI-X card: (the slot support PCI-X or 3.3V campatiable PCI

cards.)

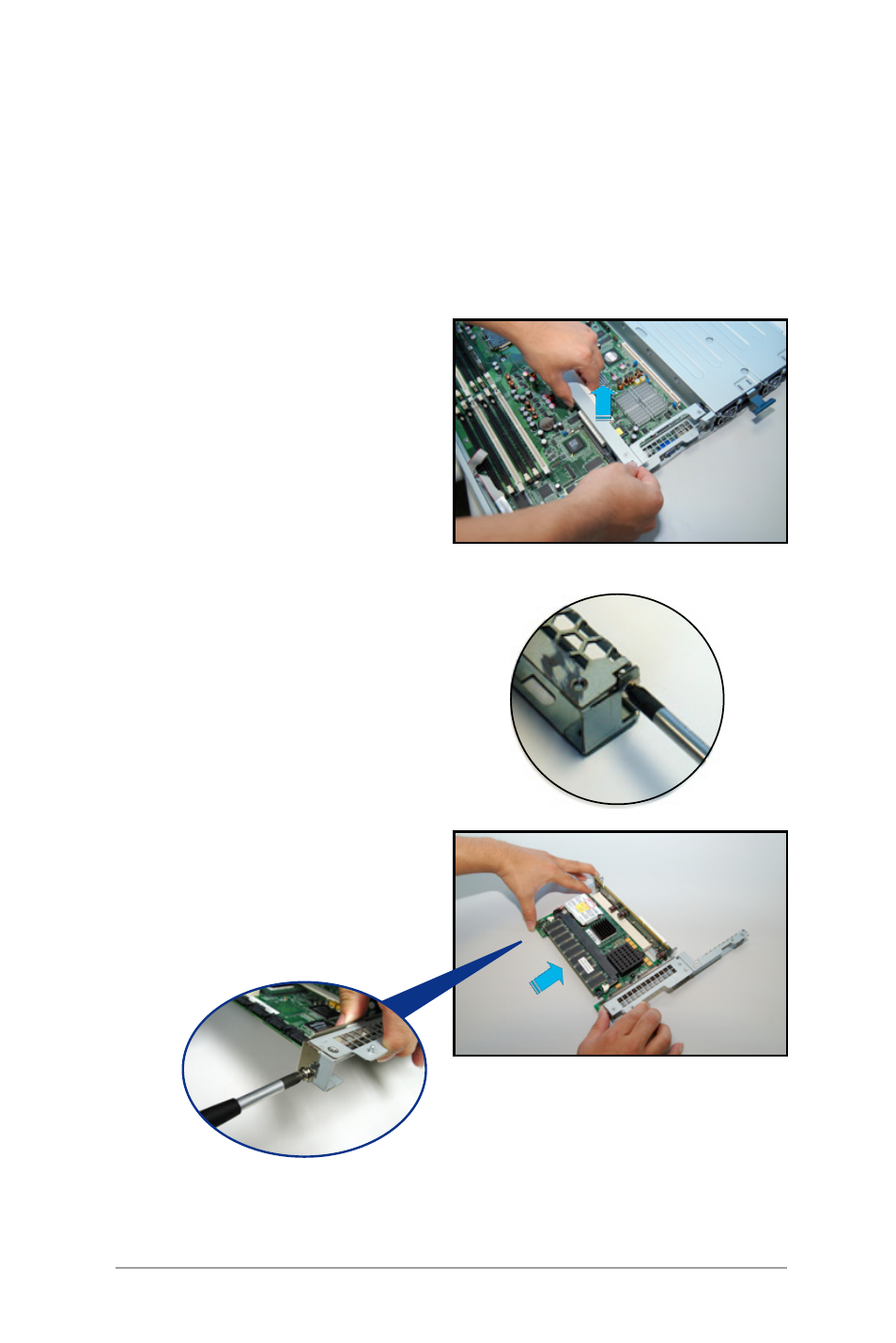

1. You can install one PCI Express

x8 card and one PCI-X card.

Please carefully hold the PCI-X

riser card and pull it off from the

PCI-X slot on the board.

2. Set the riser card aside. Using a

cross screw driver to remove the

screws as shown.

3. Insert a PCI-X card into the slot

of the riser card, then put the

screws back and fasten it.
