Page 23
ASUS RS162-E4/RX4
-

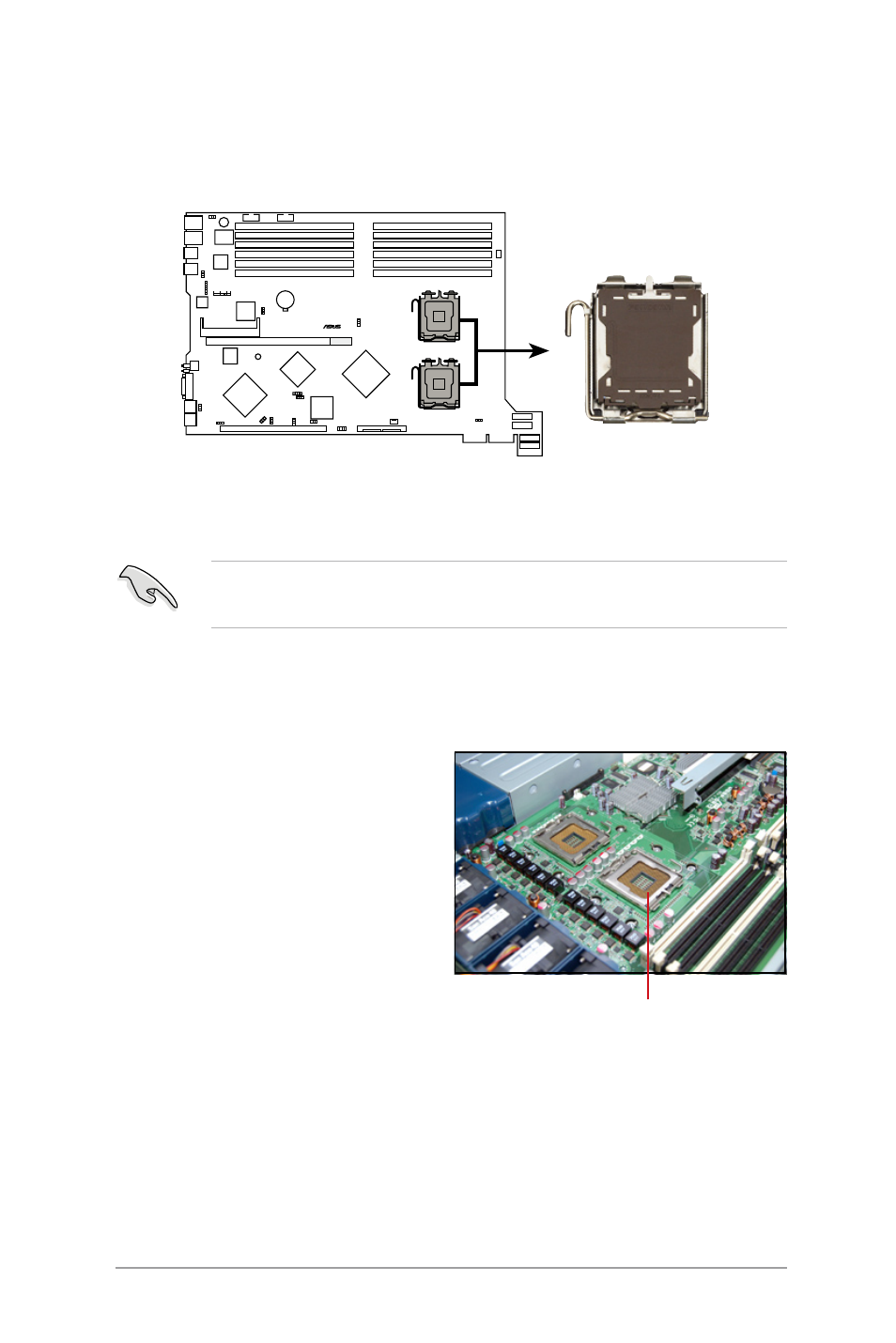

2.2 Install the CPU and heatsink
ASUS RS162-E4/RX4 sever system is powerd by the DSBF-DR12 sever
board, which comes with two ZIF type LGA771 CPU sockets. Intel Xeon
LGA771 CPU has a Dual-Core architecture with 2M L2 cache.
®
DSBF-DR1
DSBF-DR1 CPU Socket 1
CPU1
CPU2
You can install one or two CPUs in this board. When installing only one
CPU, please install it in socket 1.
2.2.1 Installing a CPU
To install a CPU:
1. Locate the CPU socket on the
motherboard.
CPU1 socket
