46 PNEG-1813 Electronic Distributor Control
5. Parts List

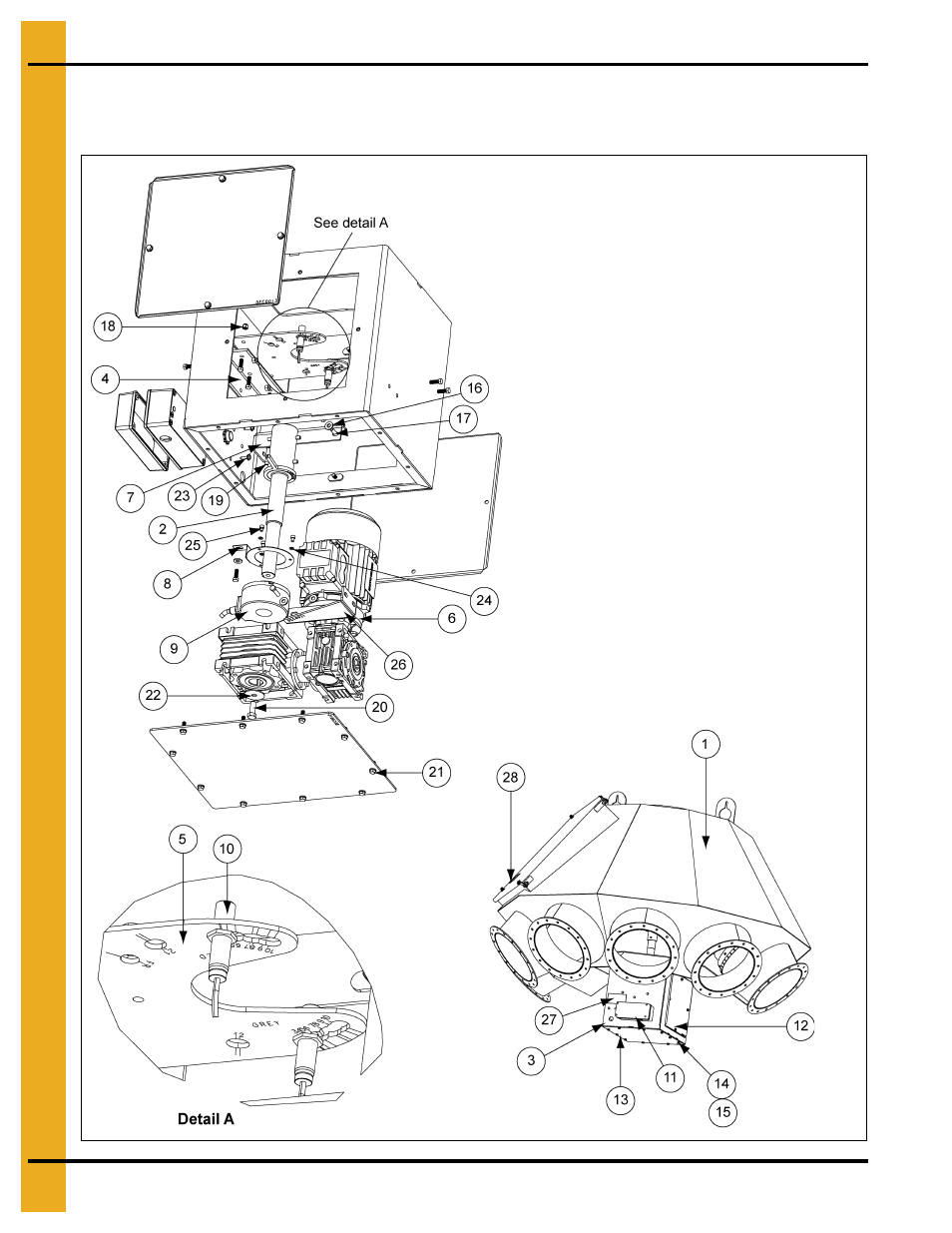

12" 6 Hole 45° Distributor Assembly Electronic Control
(DFB12645G-EC)
Assembly Procedure:
1. Install shaft (DEC0009) with provided roll
pins (S-9288).
2. Install enclosure (DEC0005) with 3/8" bolts and
nylock nuts.
3. Install junction box (DEC0019) with self-drilling
screws (S-280).
4. Install sensor mounting angle (DEC0014) and plate
(DEC0006).
5. Install sensors (DEC0018, 2 EA) and set clearance.
(See detail A.)
6. Install encoder (DEC0017), torque set screw to
8 in-lbs.
7. Install motor (DEC0015) and mount brackets
(DEC0003 and DEC0021).
8. Install bottom (DEC0021) and side (DEC0013)
covers.
NOTE: Install sensors in #3 hole on both sides.
Set 0.050" ± 0.01" clearance from face of each
sensor to flag on shaft.
