3. Installation
PNEG-1813 Electronic Distributor Control 15
Encoder and Bracket Installation
Install the encoder (DEC0017) to the encoder mounting bracket (DEC0016) using the three (3) #10-32
bolts (S-10167) and #10 washers (S-7223) as shown in
Figure 3H .
Tighten the encoder collar set screw as shown in Figure 3I on Page 16 to 8 in-lbs.
Install the encoder mounting bracket (DEC0016) to the proximity sensor bracket (DEC0006) using the
1/4"-20 x 3/4" HHCS bolt (S-1429), 1/4" washer (S-2126) and 1/4"-20 nylock nut (S-7025) as shown in
Figure 3J on Page 17 .

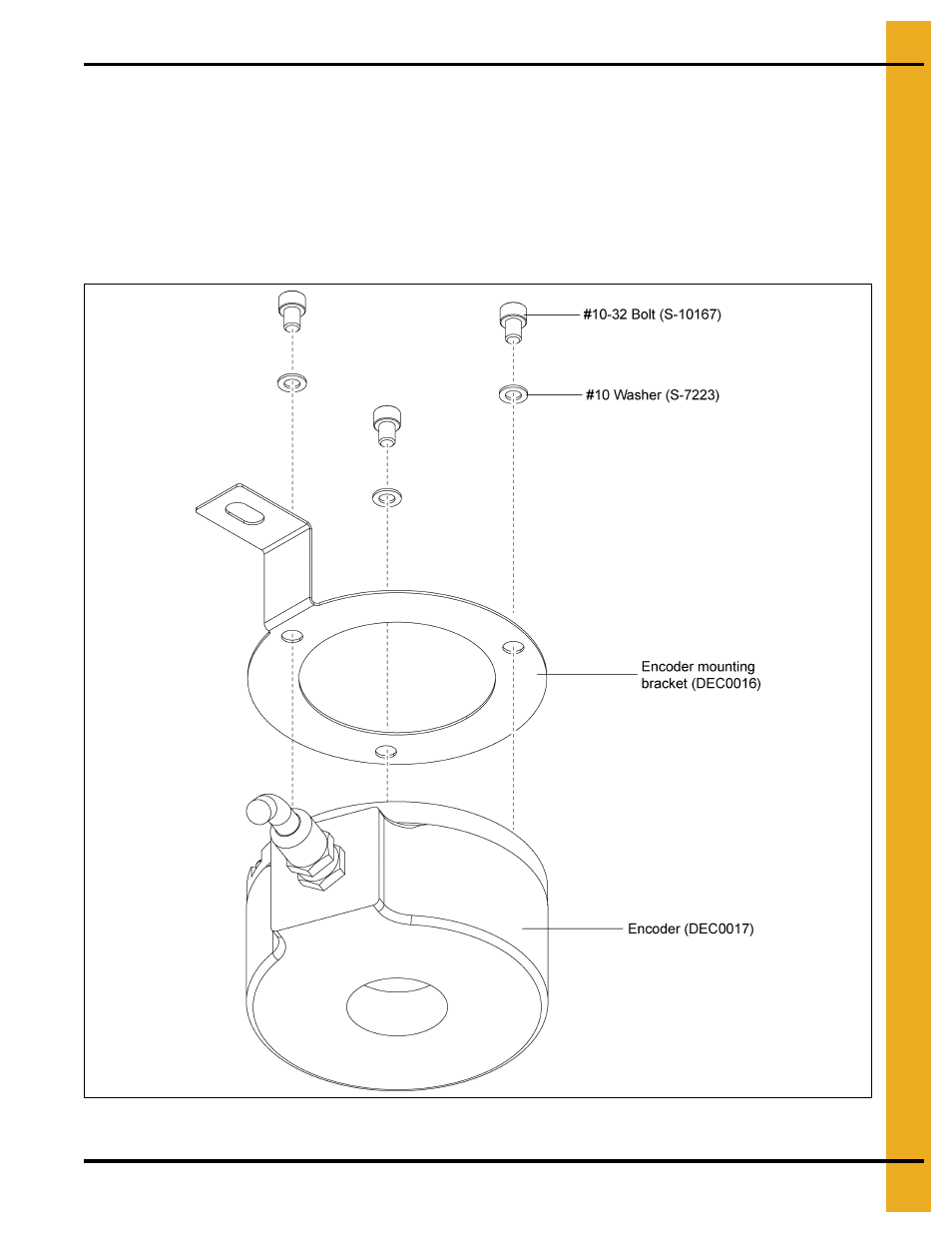

Figure 3H Encoder to Mounting Bracket
