4. Operation Procedures
42 PNEG-1813 Electronic Distributor Control
Position Lock-Out Screen
The position lock-out allows you to lock-out a distributor discharge spout position so it can not be used
until it is manually unlocked.
(See Figure 4S.)

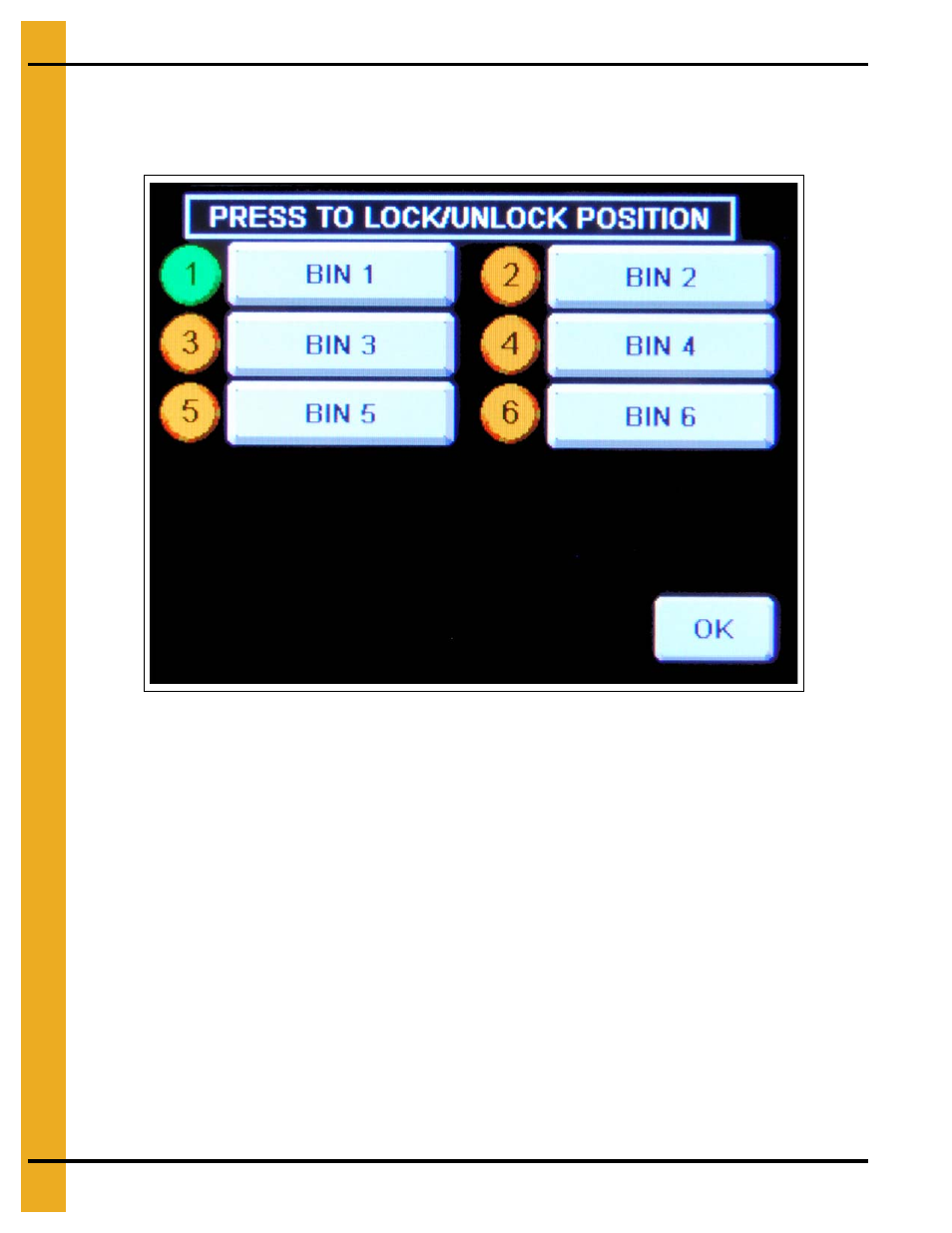

Figure 4S Lock/Unlock Position
Lock/Unlock Position
1. From the “Setup Menu”, select “Position Lock-Out” to display the “Lock/Unlock Position”
setup screen.
2. Press name of spout to toggle between locked and unlocked. When in the locked position the number
balloon will change to a red circle with a line through it.
NOTE: The position that the distributor is currently located, indicated by a green number balloon
icon, can not be locked out. Move the spout position to a different location then try again.
See “Move Screen”
on Page 35 .
3. Select “OK” to apply changes and return to “Main Menu”.
