3. Installation
18
PNEG-1813 Electronic Distributor Control
Motor Mounting Bracket Installation
Install the motor mounting bracket (DEC0003) to the enclosure (DEC0005) using two (2) 1/4"-20 x 3/4"
HHCS bolts (S-1429), 1/4" washers (S-2126) and 1/4"-20 nylock nuts (S-7025) as shown in

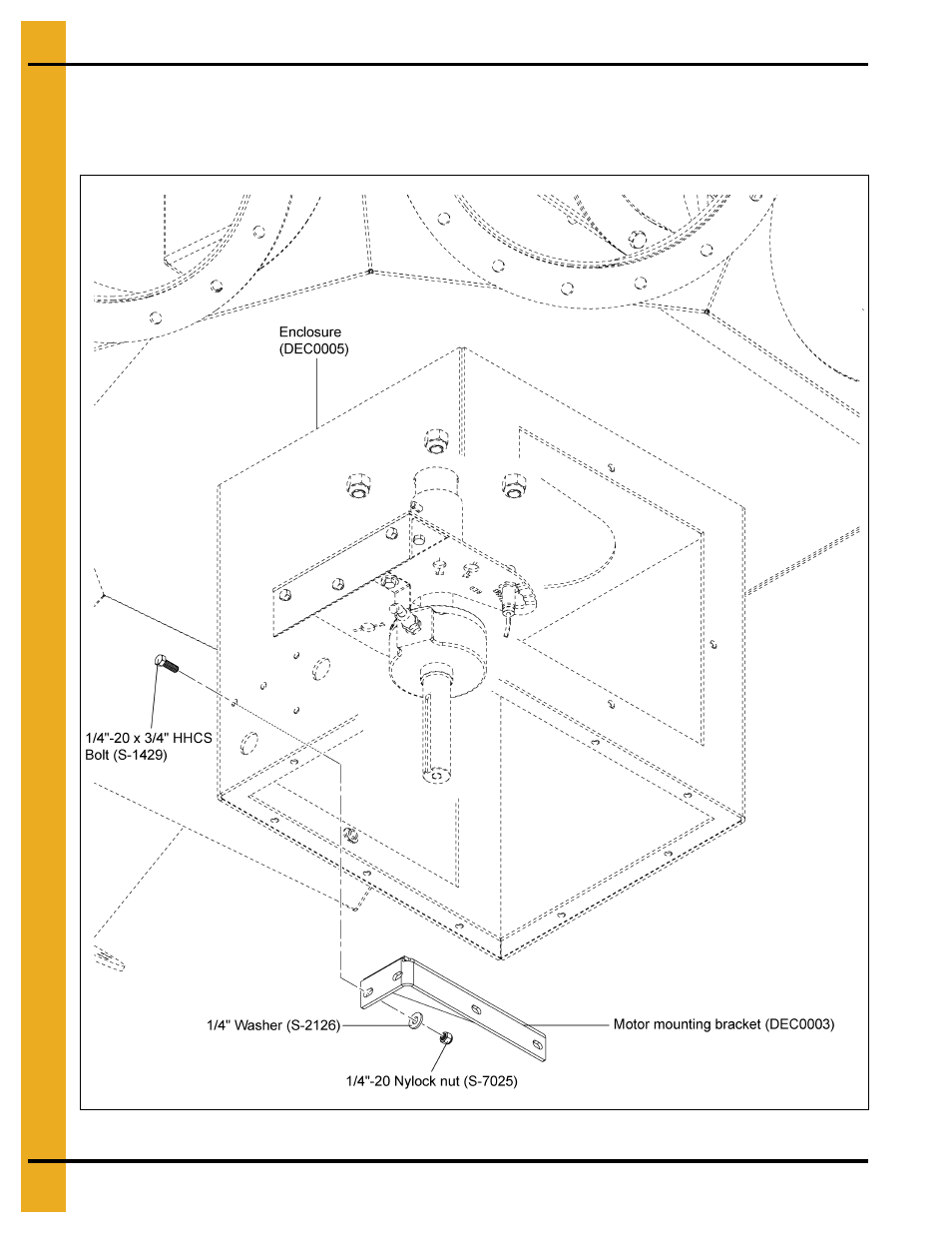

Figure 3K Motor Mounting Bracket
