4. Operation Procedures
PNEG-1813 Electronic Distributor Control 33
Help Menu Screen
The help menu has three (3) options for displaying troubleshooting information for different faults that may
appear during the operation of the distributor.
(See Figure 4F.)

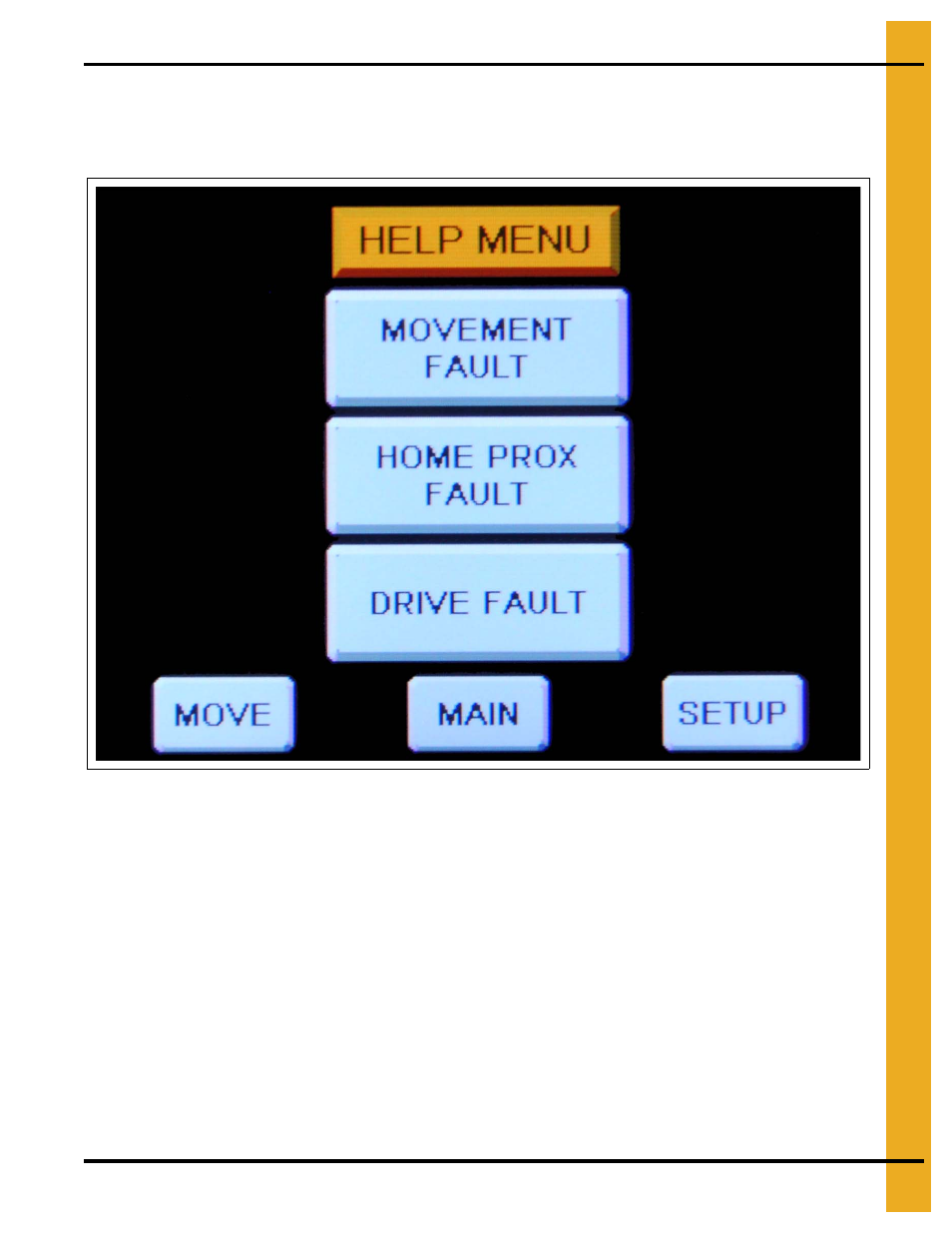

Figure 4F Help Menu Screen
Movement Fault: Displays the “Movement Fault” screen which offers possible causes and solutions to
faults caused by distributor movement.
(See Figure 4G on Page 34.)
Home Prox Fault: Displays the “Home Sensor Fault” screen which offers possible causes and solutions
to faults caused by a proximity switch failure.
(See Figure 4H on Page 34.)
Drive Fault: Displays the “VFD” Fault screen which offers possible causes and solutions to faults caused
by the variable frequency drive.
(See Figure 4I on Page 35.)
