4. Operation Procedures

40

PNEG-1813 Electronic Distributor Control

Position Locations Screen

This screen allows the user to adjust the spout positioning so it lines up with the center of the distributor
discharge. Adjustments can be made individually or an offset can be used to adjust all spouts by the same
amount.

(See Figure 4P.)

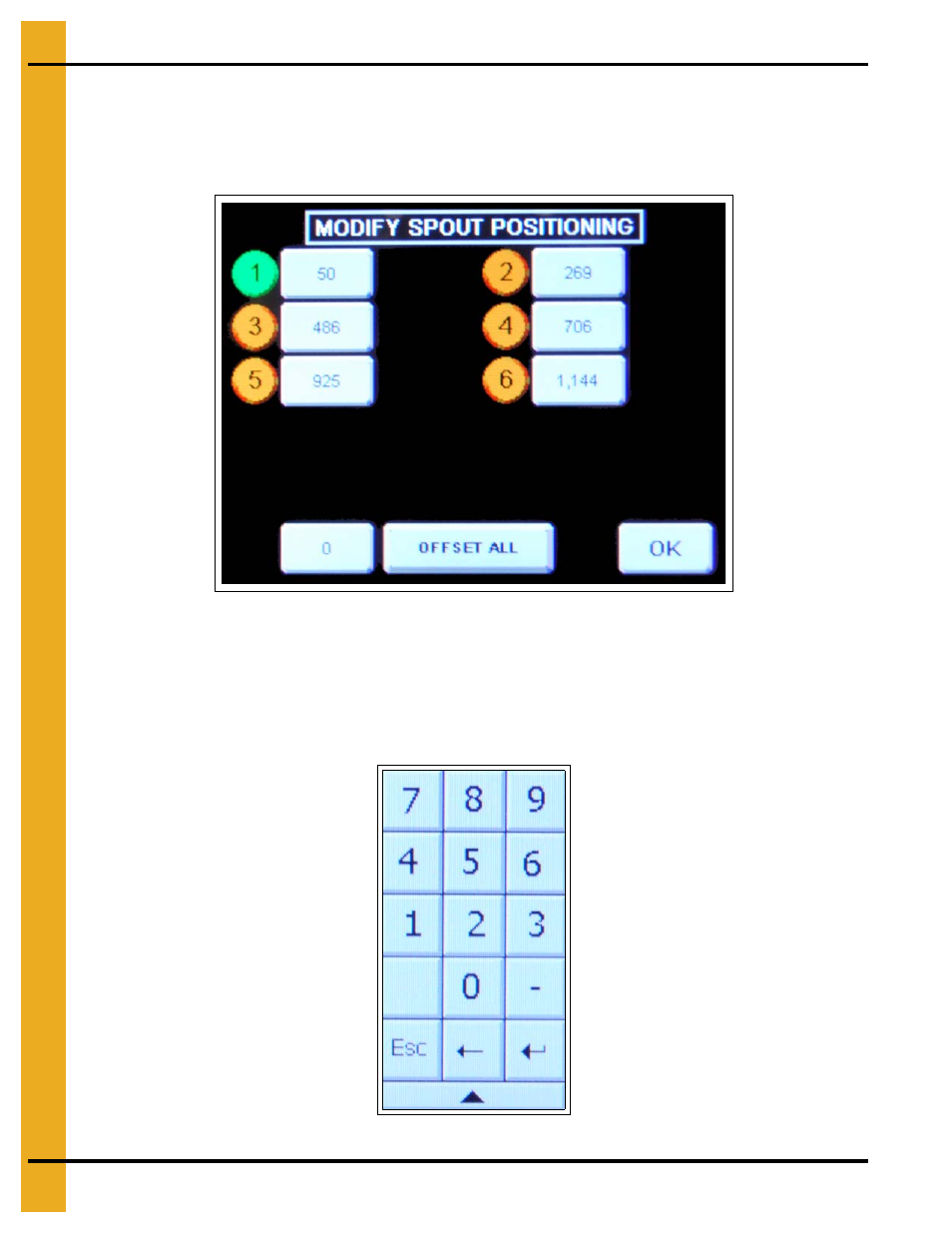

Figure 4P Modify Spout Positioning

Modify Spout Positioning

1. From the “Setup Menu”, select “Position Locations” to bring up the “Modify Spout Positioning” screen.

2. In the “Modify Spout Positioning” screen select the spout that requires adjustment by touching the

value pad next to the spout number balloon. A number keypad will display.

(See Figure 4Q.)

Figure 4Q Number Keypad
