4. Operation Procedures
36 PNEG-1813 Electronic Distributor Control
Moving Spout Position
1. From the “Main” screen or the “Setup Menu” select “MOVE” to view the “Move Position” screen.
(See Figure 4J on Page 35.)
2. On the “Move Position” screen, select the position you want the spout to move to by pressing the
spout name on the screen.
3. The “Main Menu” screen will now display a flashing message “Moving to” at the top of the screen,
the selected spout number will flash yellow while the pointer is moving to the selected spout. The
destination spout number will turn green when the move is complete.
Verifying Spout Alignment
NOTE: In the following steps, the distributor must be in a position to view the spout location in the
distributor to verify that it lines up correctly. If the distributor is installed above ground level,
two (2) people will be needed; one to verify the alignment of the distributor spout and one to
operate the controller.
1. From the “Main” screen or the “Setup Menu” select “MOVE” to view the “Move Position” screen.
(See Figure 4J on Page 35.)
2. On the “Move Position” screen, select the position you want the spout to move to by pressing the
spout name on the screen.
3. The “Main Menu” screen will now display a flashing message “Moving to” at the top of the screen,
the selected spout number will flash yellow while the pointer is moving to the selected spout. The
destination spout number will turn green when the move is complete.
4. Once the spout has finished moving, visually check and verify the spout is centered with the
distributor discharge spout. If alignment requires adjustment, see “Position Locations Screen”
on Page 40 to adjust the positioning.
5. Repeat procedure for any other spouts that were re-positioned.

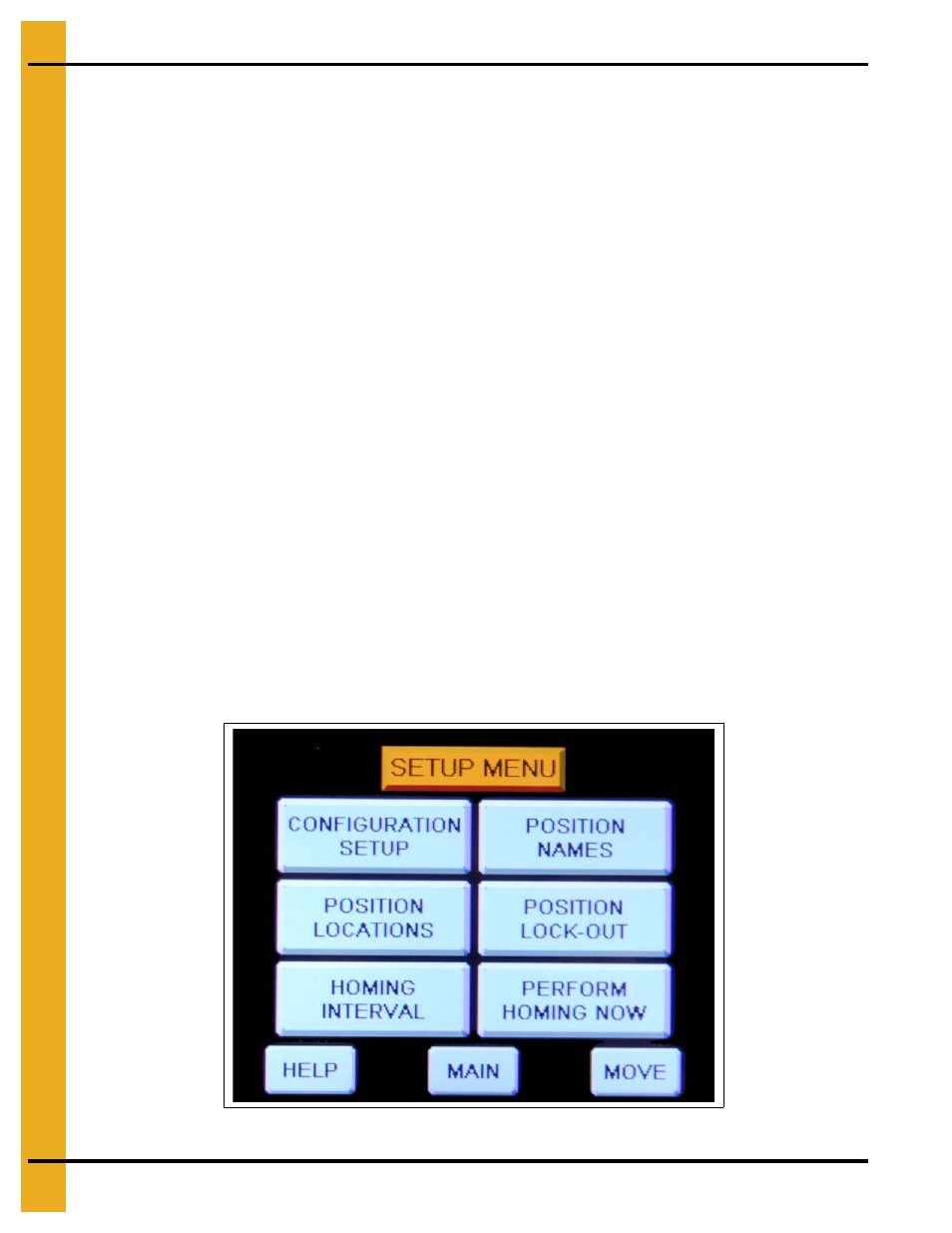

Setup Menu Screen
Figure 4K Setup Menu Screen
