3. Installation
24 PNEG-1813 Electronic Distributor Control
Electronic Distributor Wiring Diagram
The electric motor supplied with the GSI Electronic Distributor Control system is designed to be capable
of running on either low or high voltage. The variable frequency drive (VFD) supplied with the system
supplies 230V 3 phase power and requires that the electric motor be configured for low voltage operation.
In order to ensure proper operation, ensure the motor jumpers are configured in accordance with the
wiring diagram shown for low voltage operation.
(See Figure 3P.)

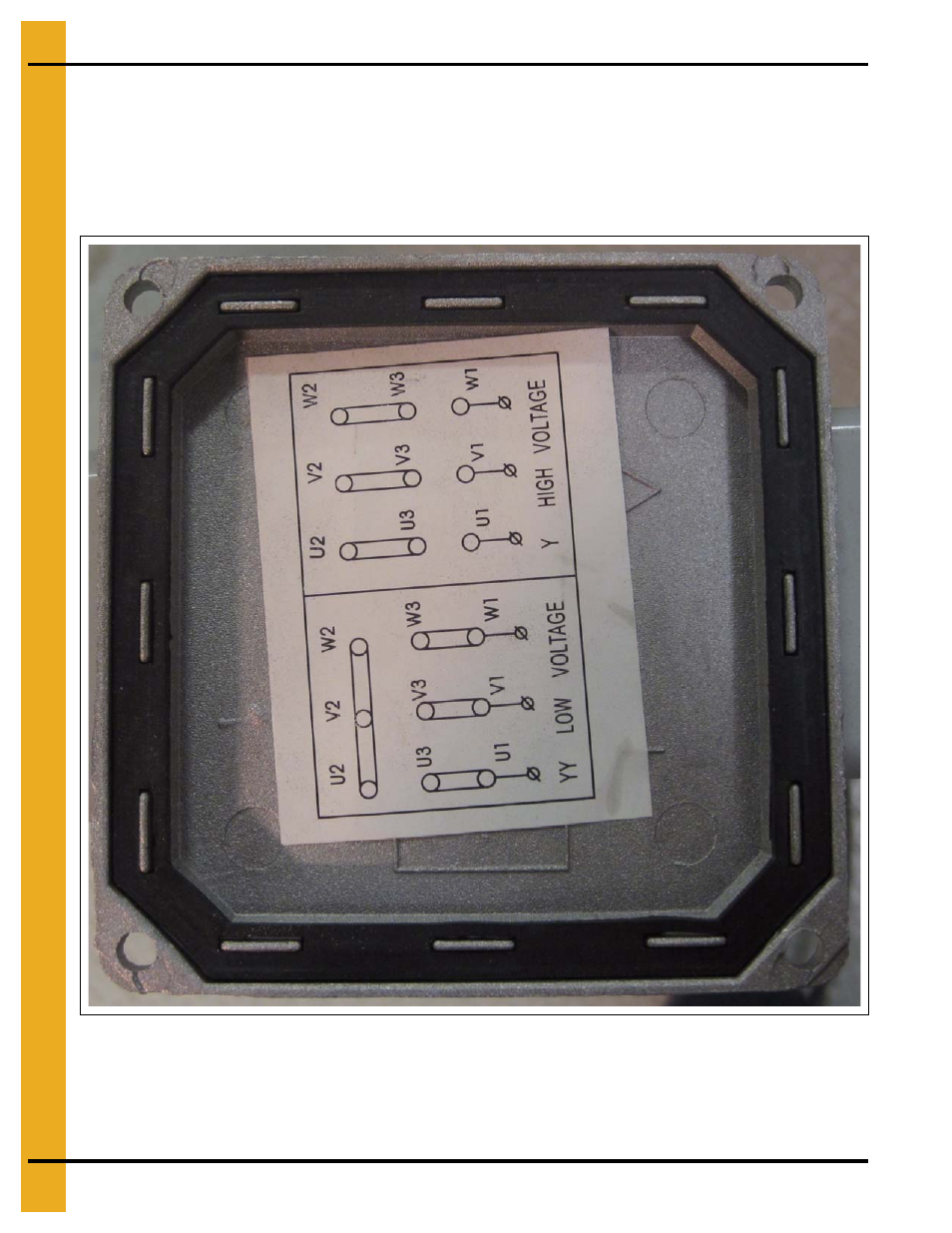

Figure 3P
