3. Installation
26 PNEG-1813 Electronic Distributor Control
Control Panel Wiring to Junction Box Electrical Connections
Connect the wiring from the control panel to the junction box (DEC0019) terminal block as shown in
Figure 3R . NOTE: The grey and red color identifiers indicate the location of the proximity sensors and are
marked on the bottom of the proximity sensor bracket (DEC0006).

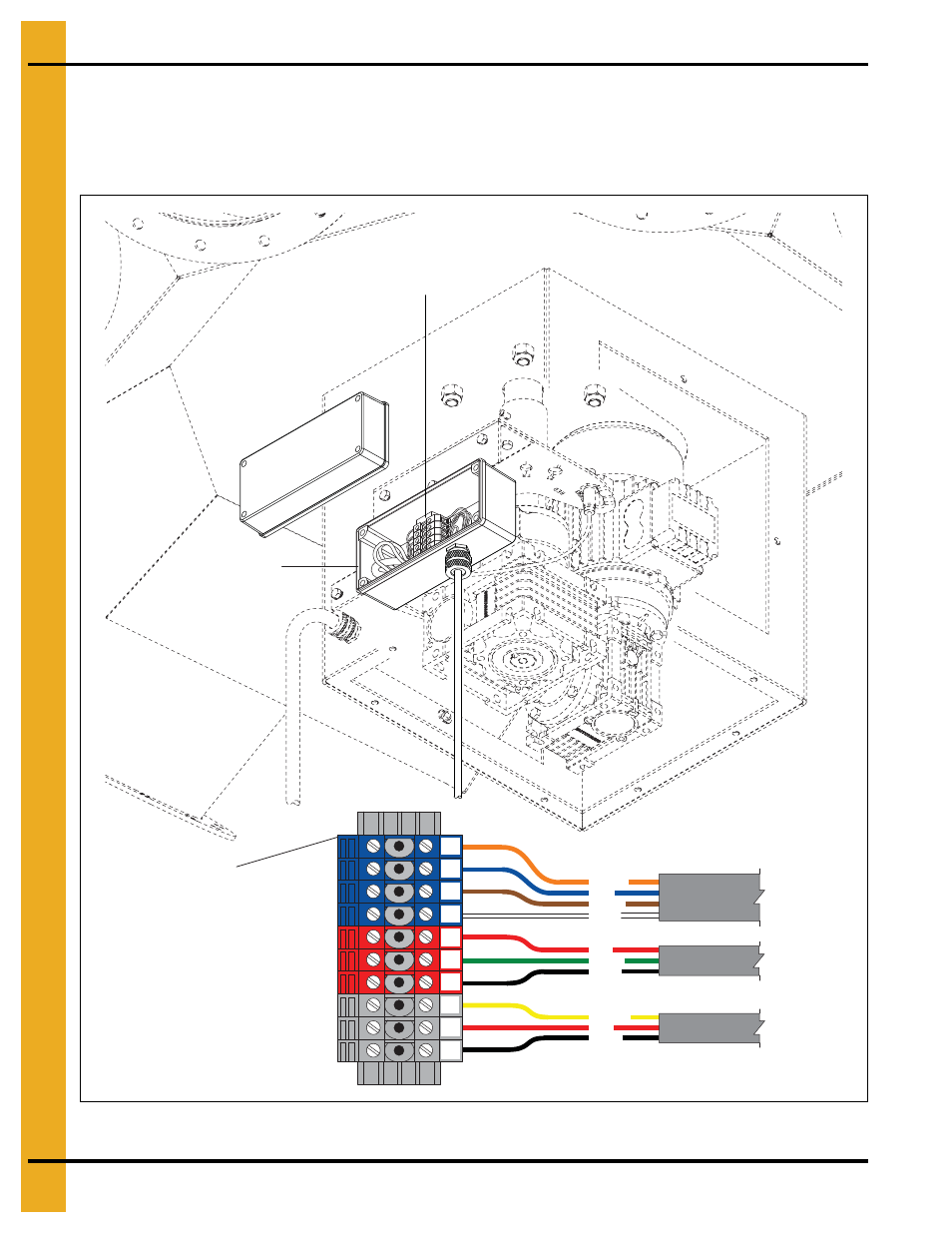

Figure 3R Control Panel Wiring to Junction Box Electrical Connections
Junction box
terminal block
Junction box
terminal block
Blue
section
Red
section
Grey
section
WHITE
ORANGE
BLUE
BROWN
BLACK
GREEN
RED
YELLOW
RED
Prox Red
Prox Grey
Encoder
BLACK
2
13
4
1
2
3
1
2
3
Junction box
(DEC0019)
NOTE: Wire colors
for reference only.
