3. Installation
PNEG-1813 Electronic Distributor Control 21
Distributor to Junction Box Electrical Connections
Connect wiring from proximity sensors (DEC0018) and encoder (DEC0017) to junction box terminal block
as shown in
Figure 3M . NOTE: The grey and red color identifiers indicate the location of the proximity
sensors and are shown on the bottom of the proximity sensor bracket (DEC0006).

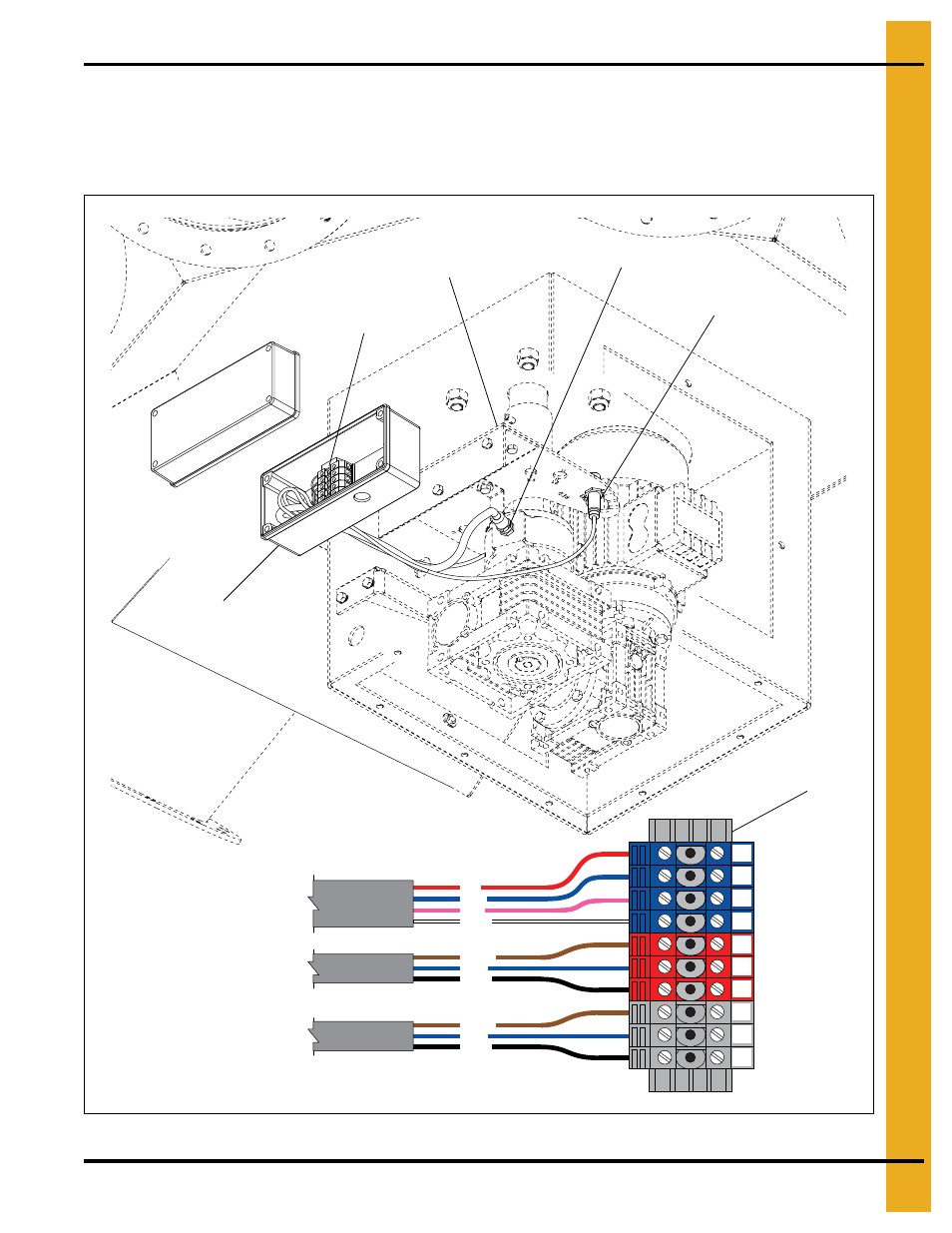

Figure 3M Distributor to Junction Box Electrical Connections
Proximity sensor
(DEC0018)
Junction box
(DEC0019)
Junction box
terminal block
Junction box
terminal block
Blue
section
Red
section
Grey
section
Encoder
Prox Red
BROWN
BLUE
BLACK
WHITE
PINK
BLUE
RED
BROWN
BLUE
BLACK Prox Grey
2
1
34
1231
2
3
Proximity sensor
bracket (DEC0006)
Encoder (DEC0017)
