3. Installation
PNEG-1813 Electronic Distributor Control 11
Sensor Plate Angle and Proximity Sensor Bracket Installation
Assemble the sensor plate angle (DEC0014) to the proximity sensor bracket (DEC0006) using three (3)
1/4"-20 x 3/4" HHCS bolts (S-1429) and 1/4"-20 nylock nuts (S-7025) as shown in
Figure 3D .
Attach the proximity sensor bracket (DEC0006) to the inside of the enclosure (DEC0005) using three (3)
1/4"-20 x 3/4" HHCS bolts (S-1429) and 1/4"-20 nylock nuts (S-7025).
(See Figure 3D.)

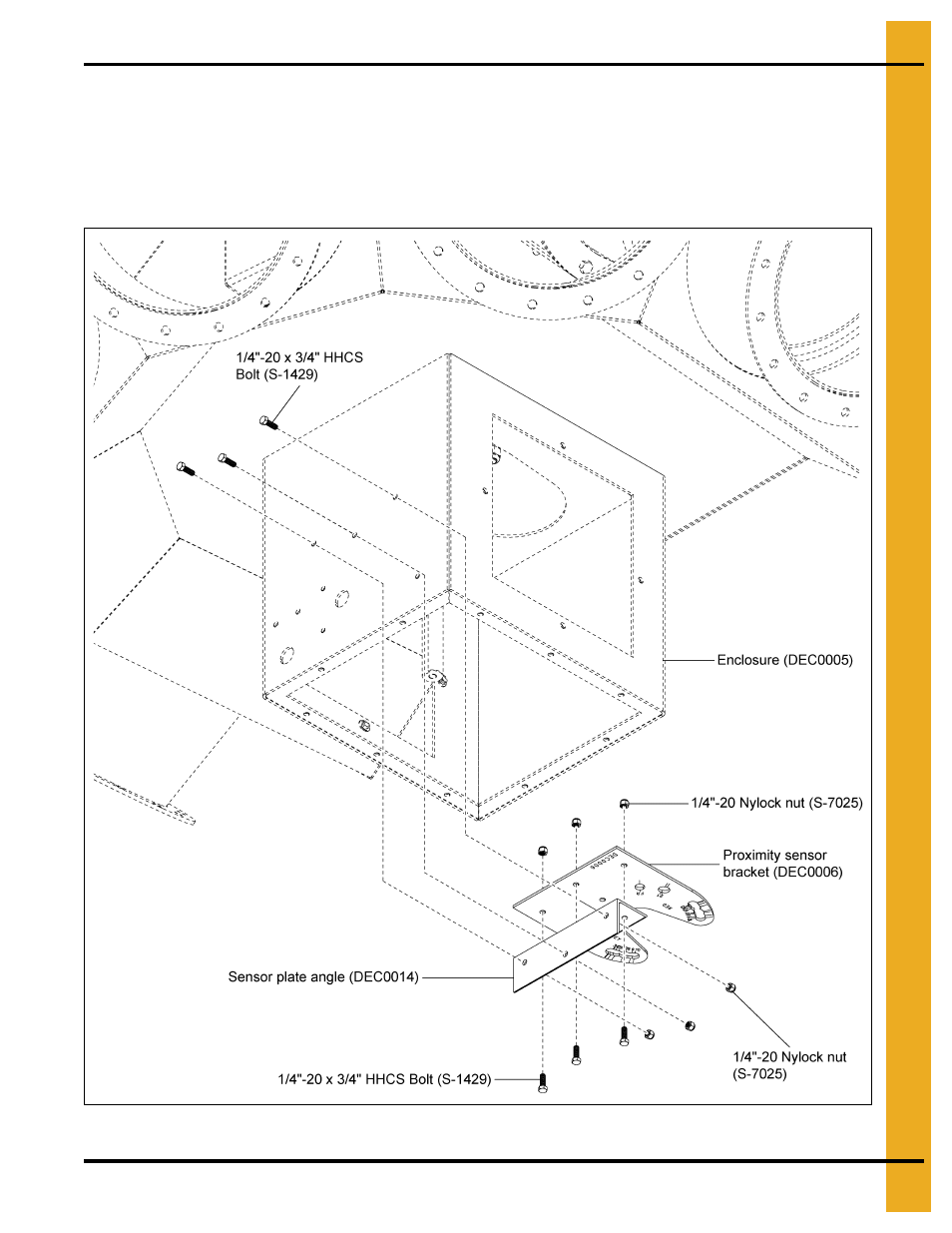

Figure 3D Sensor Plate Angle and Proximity Sensor Bracket
