4. Operation Procedures
PNEG-1813 Electronic Distributor Control 37
Configuration Setup: Displays the machine setup screen that allows the user to change the distributor’s
parameters or reload default values. See “Configuration Setup Screen”
on Page 37 .
Position Names: Allows the user to assign or change the name of each spout position and to create or
change a name for the distributor. See “Position Names Screen”
on Page 38 .
Position Locations: Displays the positioning screen which allows the user to set the value that aligns the
spouts with the distributor. See “Position Locations Screen”
on Page 40 .
Position Lock-Out: Allows the user to lock or unlock spouts from being used. See “Position Lock-Out
Screen”
on Page 42 .
Homing Interval: Allows the user to set the number of times before the “Perform Homing Now” warning
appears. See “Homing Interval Screen”
on Page 43 .
Perform Homing Now: Press this to perform the homing operation to re-calibrate the distributor.
Configuration Setup Screen
This screen allows the user to change the distributor’s spout diameter property, total of number of spouts
and for resetting the distributor back to the default settings.
(See Figure 4L.)

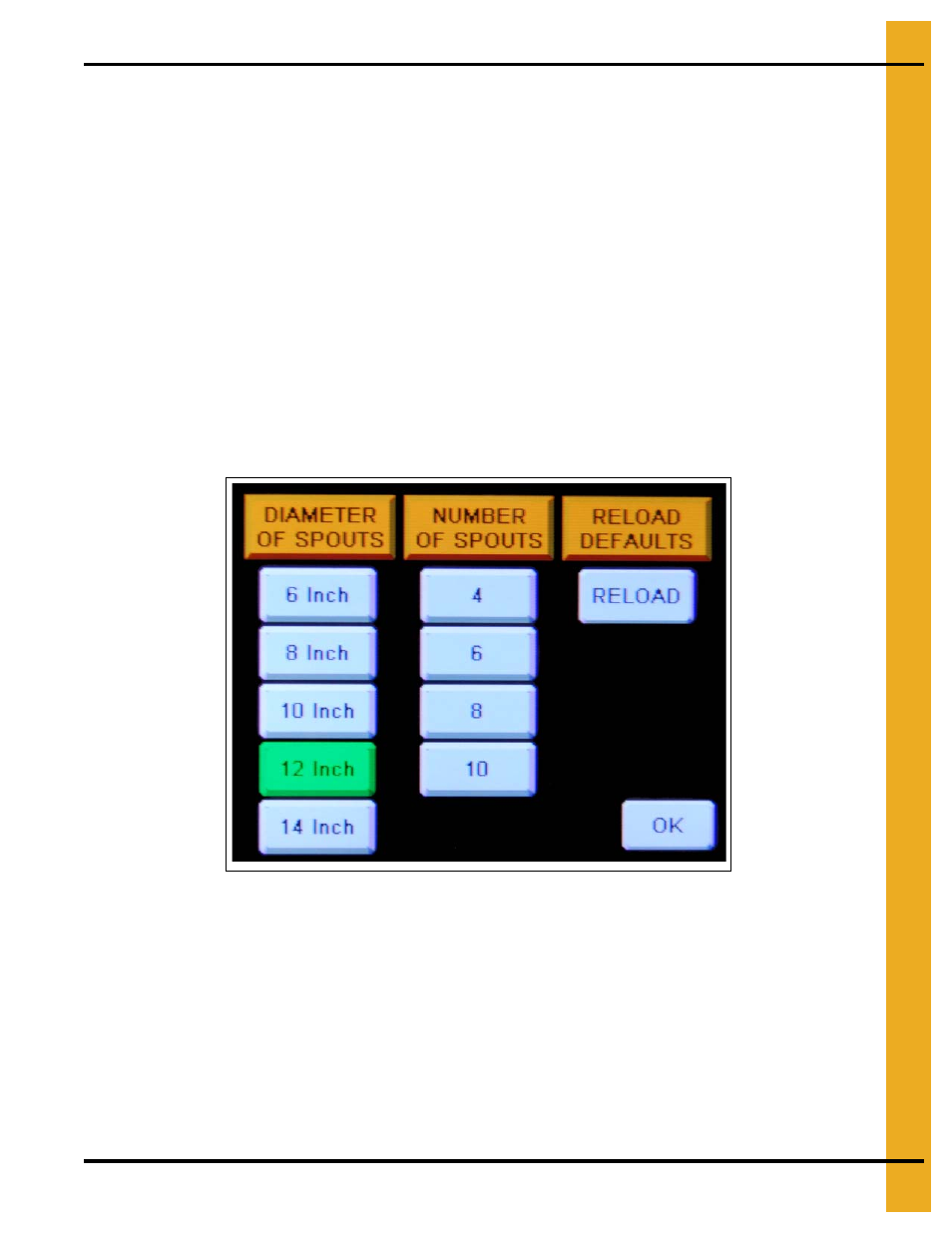

Figure 4L Configuration Setup Screen
Diameter of Spouts: Press the button that matches the size of the spout that is currently installed on the
distributor. The diameter that is selected will turn green and the number of spouts available for that
diameter will be displayed.
Number of Spouts: Press the button that matches the current configuration of the distributor. The number
that is selected will turn green. The number of spout options will change according to the diameter of spout
selected.
Reload Defaults: If during operation, any configuration parameters are altered from the original settings,
pressing this button will revert settings to the default values.
OK: Press this button to save the current configuration and be brought back to the Setup Menu.
