Page 10
3. Installation
10
PNEG-1813 Electronic Distributor Control
Junction Box Installation
Install the junction box (DEC0019) to the enclosure (DEC0005) using four (4) self-drilling screws (S-280).
Install the chase nipple, washer and lock nut.

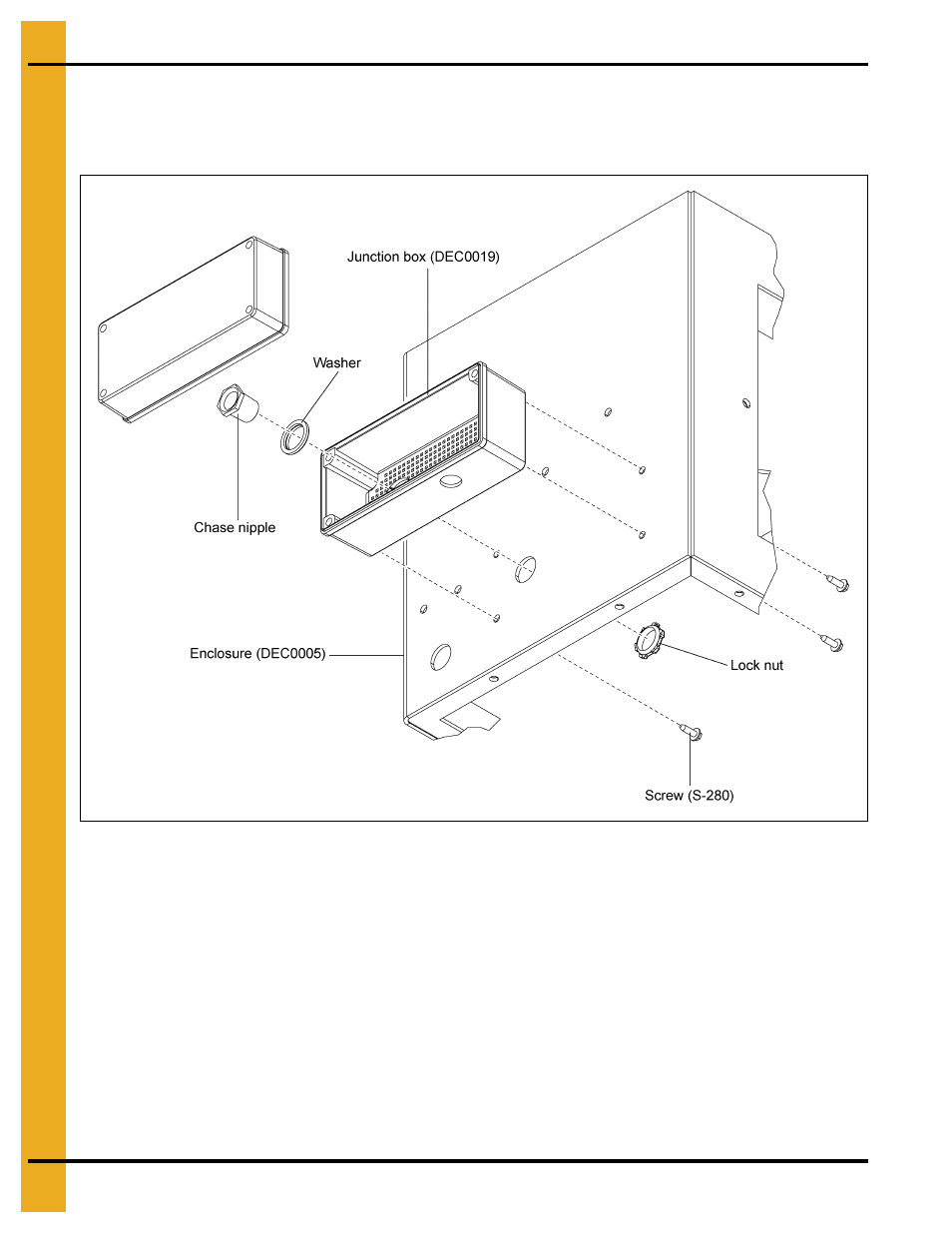

Figure 3C Junction Box
