Enclosure covers installation – Grain Systems Bucket Elevtors, Conveyors, Series II Sweeps PNEG-1813 User Manual
Page 27
3. Installation
PNEG-1813 Electronic Distributor Control
27
Enclosure Covers Installation
Install the two (2) side access covers (DEC0012) using four (4) 1/4"-20 x 3/4" HHCS bolts (S-1429)
and 1/4" lock washer (S-2041) each and install the bottom enclosure cover (DEC0013) using ten (10)
1/4"-20 x 3/4" HHCS bolts (S-1429) and 1/4" lock washers (S-2041) as shown in

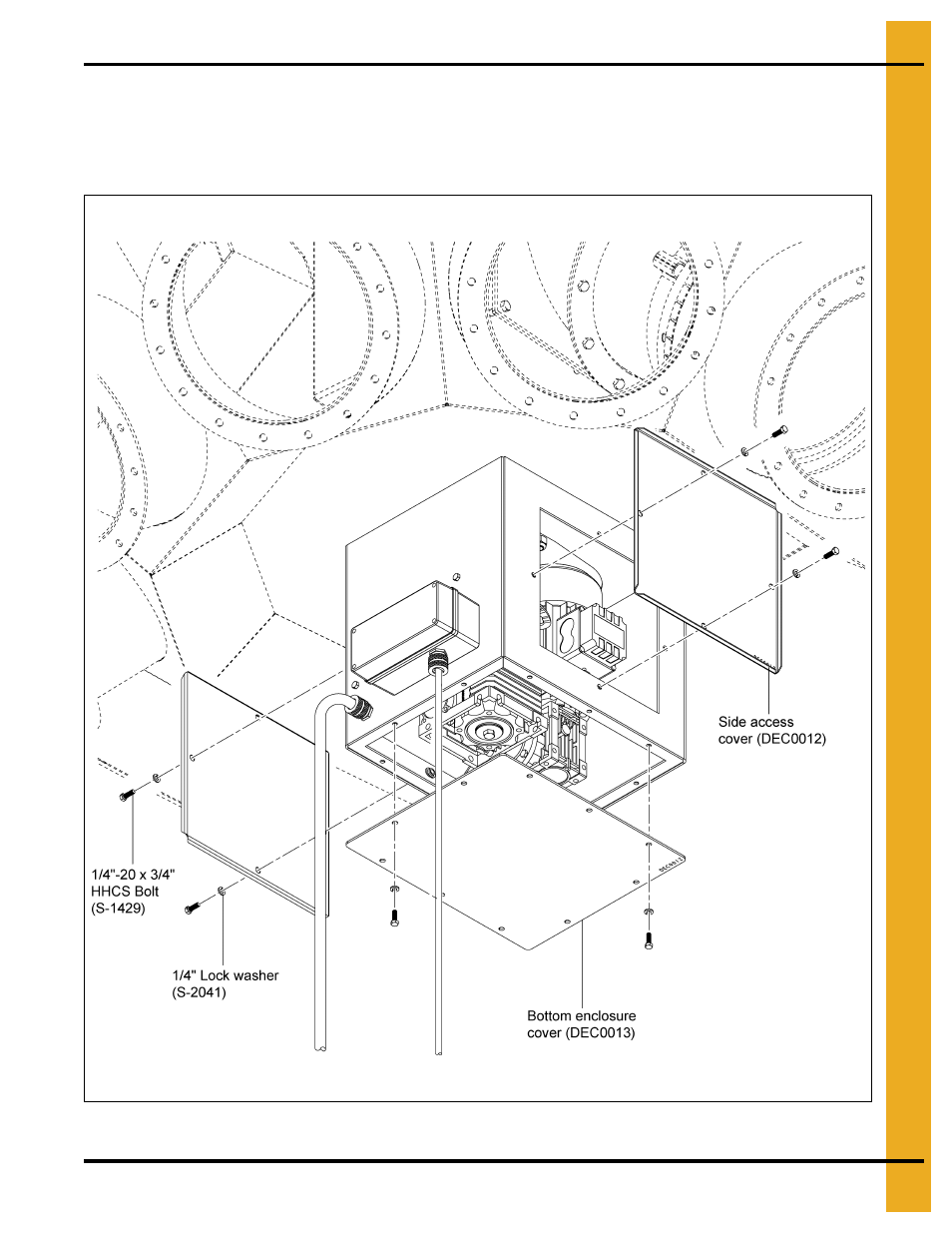

Figure 3S Enclosure Covers Installation
