4. Check voltage to prox sensor if needed. Disconnect sure-seal connector from external
controller to prox sensor. Check for 12V voltage on socket #1 and pin #3 from external
controller, with power to external controller turned on (Figure 15.5). Do not short across
voltmeter leads.

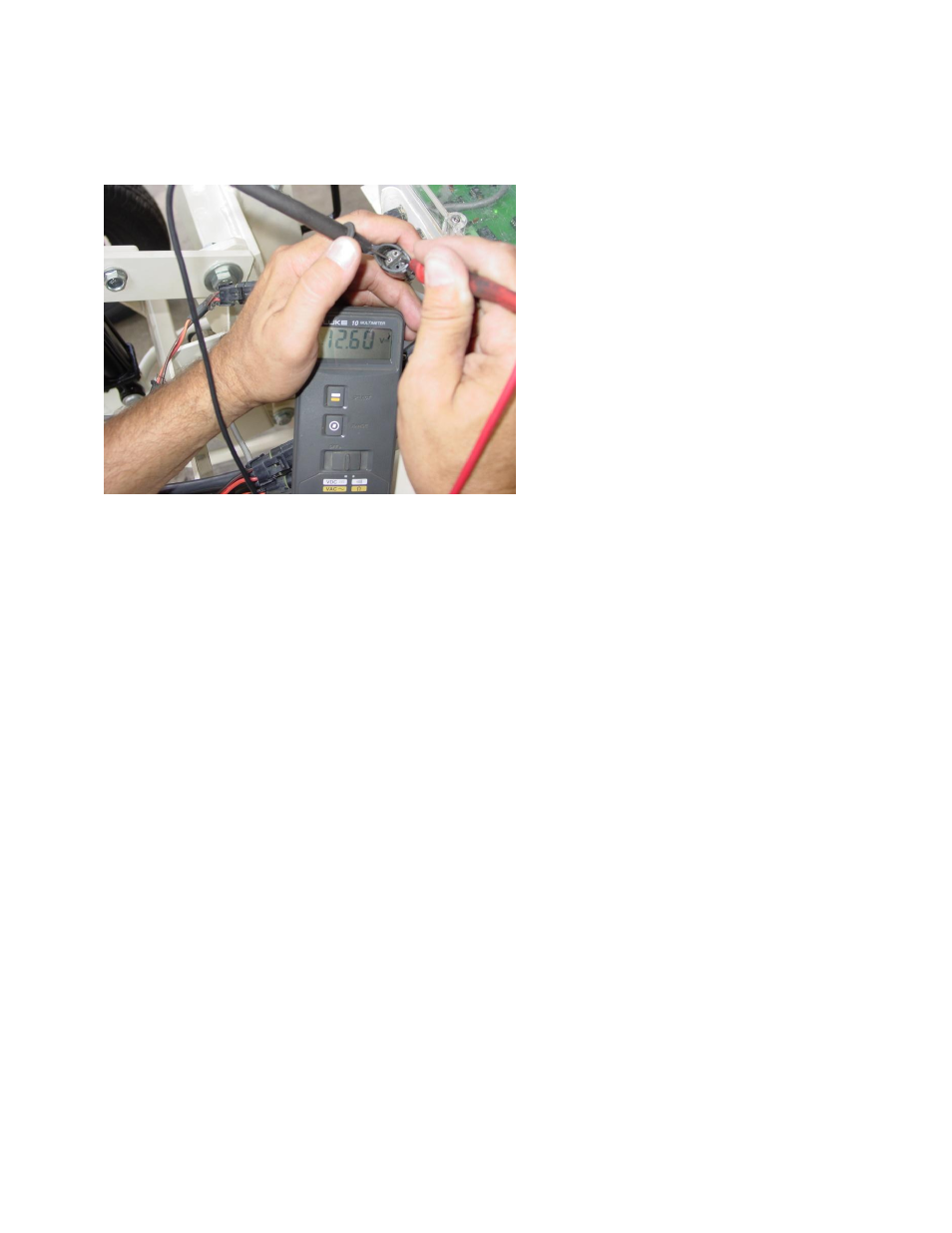

Figure 15.5 Checking voltage to prox sensor
