5-4 Remote Node TCP/IP Configuration
The following diagram explains the Sample IP Addresses to help you to understand the field of My
Wan Addr in Menu 11.3.

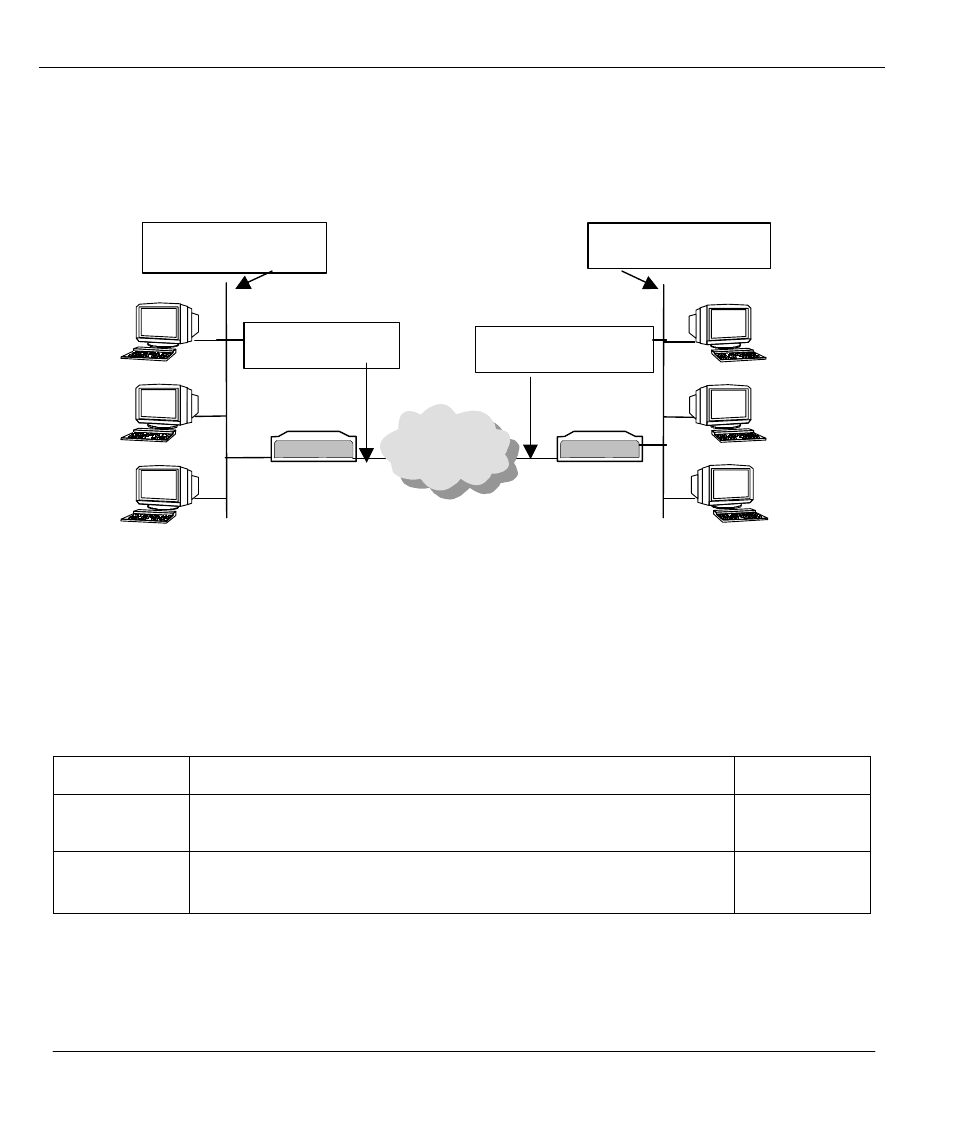

Figure 5-5 Sample IP Addresses for a TCPI/IP LAN-to-LAN Connection
To configure the TCP/IP parameters of a remote node, first configure the two fields in Menu 11-1
Remote Node Profile, as shown in the table below. For more details on the IP Option fields, refer to
Chapter 3 – Internet Access Application.
Table 5-1 TCP/IP related fields in Remote Node Profile
Field Description Option
Rem IP
Address Enter the IP address of the remote gateway in Remote Node Profile.
Edit IP Press the space bar to select Yes and press [Enter] to go to Menu
11.3 - Remote Node Network Layer Options Menu. Yes
(Yes/No)
The next table shows the TCP/IP related fields in Menu 11.3 - Remote Node Network Layer
Options.
192.168.2.0
Remote Network
192.168.1.0
Prestige 480
192.168.3.2
192.168.3.1
Local Network
Prestige 480
ISDN
