30 Zebra ZXP Series 8 Card Printer with Laminator P1013372-001 Rev. A
Installation and Setup
Loading the Laminate
Step 1. Remove the Lower Laminate Cassette; see Page 20 .
Step 2. Open the cassette, and remove the laminate if present.

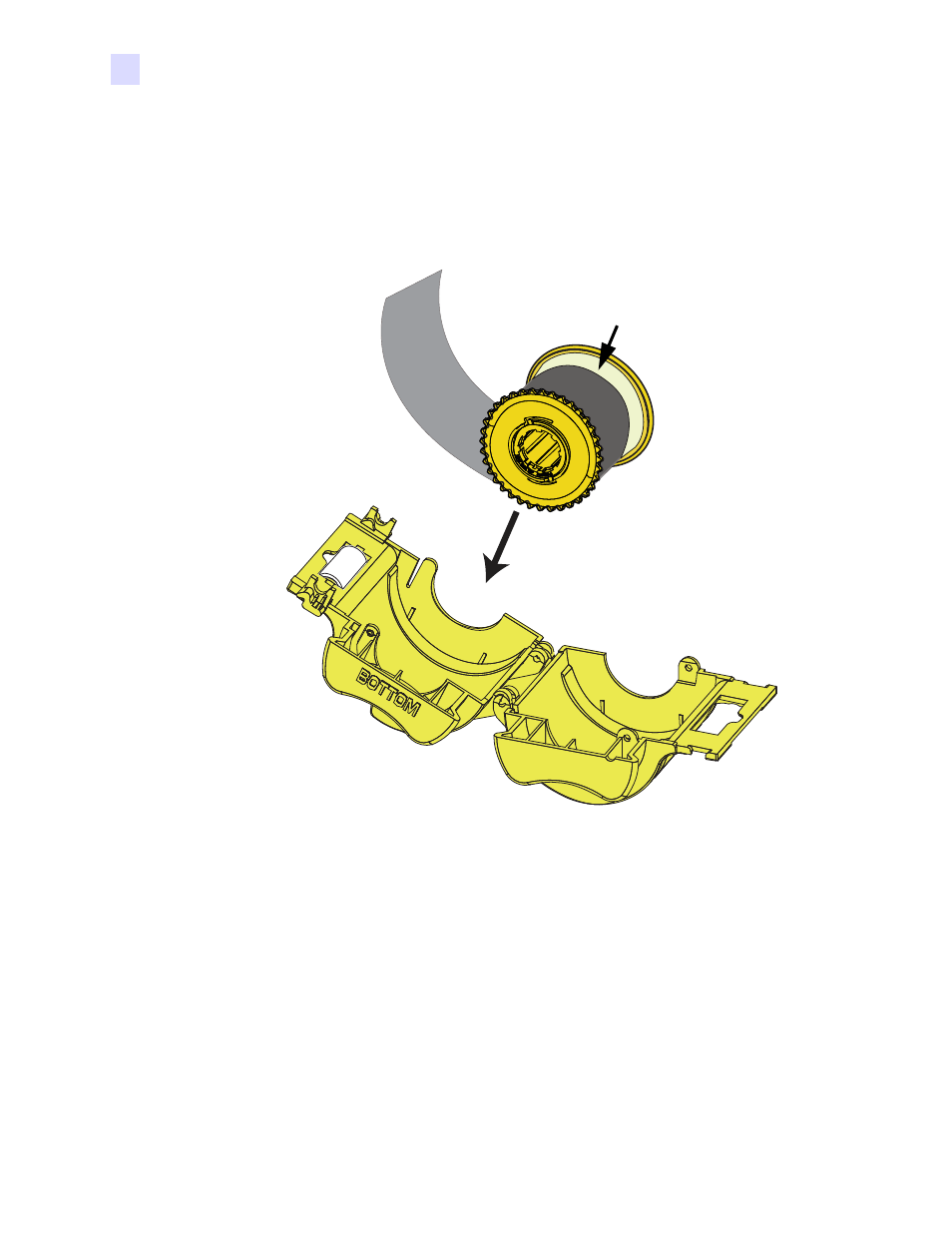

Step 3. Load the partial-width laminate into the cassette. Note that the collar on the laminate
spool is on the end opposite the geared flange.
Step 4. Trim the partial-width laminate.
Step 5. Rotate the core to adjust the laminate overhang. Stop when the end of the laminate is
even with the edge of the lips of the cassette.
Step 6. Install the cassette; see Page 25 .
Collar
