Contact station smart card interface – Zebra Technologies P1013372-001 REV. A User Manual
Page 206

202
Zebra ZXP Series 8 Card Printer with Laminator
P1013372-001 Rev. A
Smart Card Options
Contact Station Smart Card Interface
When a command to the printer interface sends a card to the Smart Card Contact Station, the
printer connects the Smart Card Contact Station to the female DB-9 connector on the rear of
the printer.
An attached external Smart Card Programmer can be used to program Smart Card chips. The
following table shows the Smart Card Contact Points.
Pin
Smart Card Contact Points
DB-9
Smart Card Contact Points
1
C1 (VCC)
6
C6 (Vpp)
2
C2 (Reset)
7
C7 (I/O)
3
C3 (Clock)
8
C8 (RFU)
4
C4 (RFU)
9
(GND when chip
is at station)
5
C5 (GND)

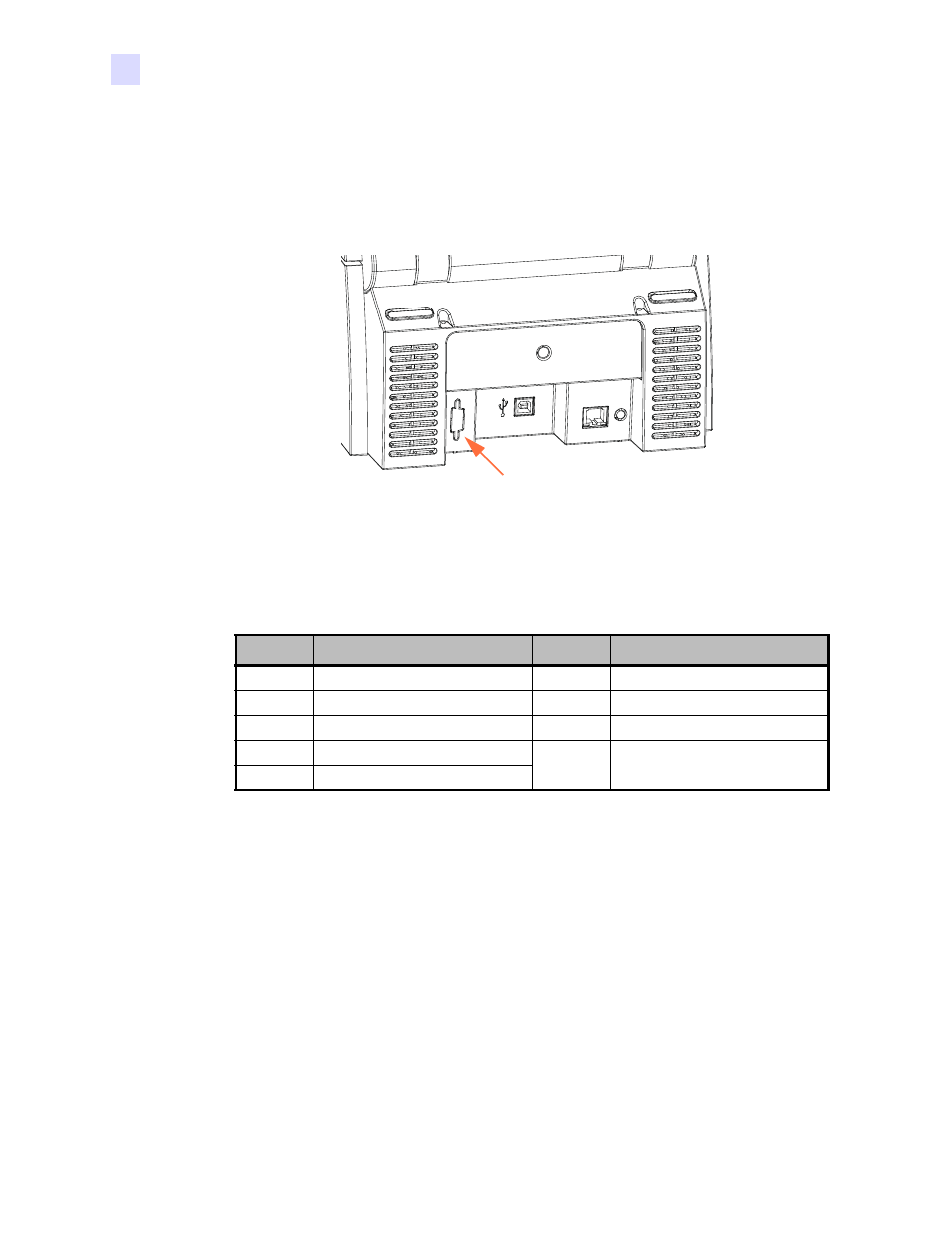

DB-9 Connector location for
Smart Card Contact Station
